PROTEGO®

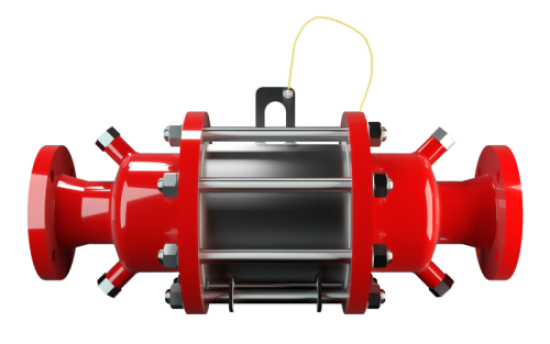

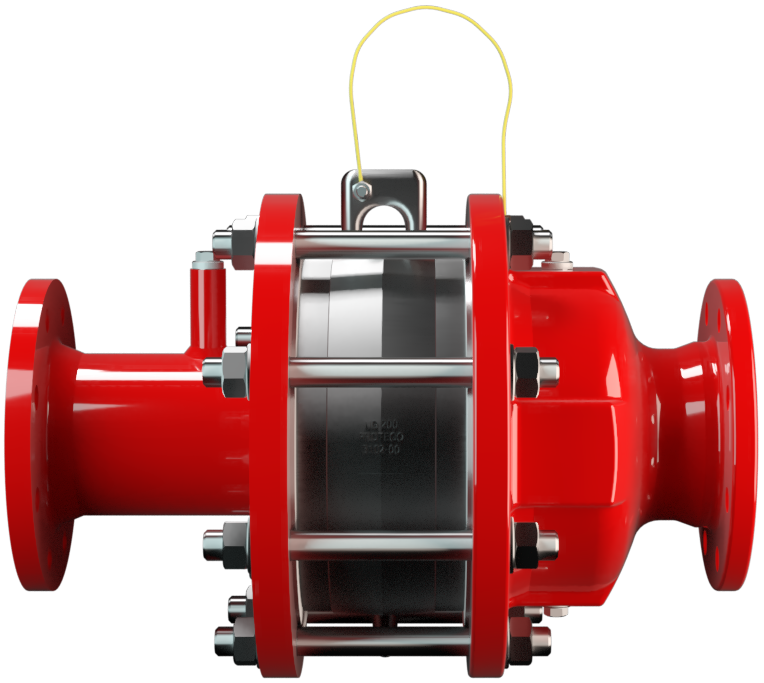

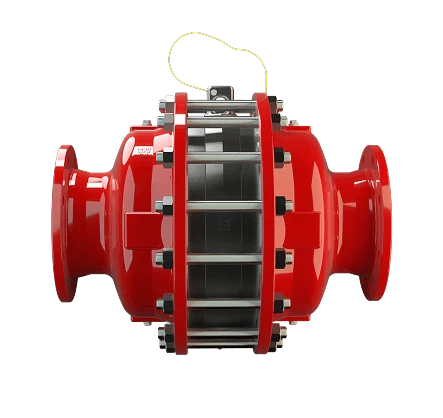

Detonation Flame Arresters
Lorem Ipsum Function of a Flame Arrester
Lorem Ipsum A Flame Arrester is designed to allow the safe flow of gases and liquids while preventing flame transmission.
Flame Arresters Flame Arresters A flame arrester, deflagration arrester, or flame trap is a device or form of construction that will allow free passage of a gas or gaseous mixture but will interrupt or prevent the passage of flame. are composed of spirally wound metal bands with precisely reproducible flame- quenching Quenching Cooling of a fluid by mixing it with another fluid of a lower temperature. gaps. These gaps are adjusted to the ignition transmission capability of explosive vapors.
Type
Place of Installation
Pressure/ Vacuum Vacuum Vacuum is the pressure in an enclosed space that is lower than the ambient pressure.
Material
Size DN
Design
Heating Jacket
Horizontal / Vertical
Combustion Process
Connection Type
No products found
Highlights of PROTEGO® Flame Arresters
Aucun incident lié à un retour de flamme
Une disponibilité accrue et une réduction des pertes
Confiance tout au long du cycle de vie
La conformité simplifiée
Lorem Ipsum Working principle of Flame Arresters

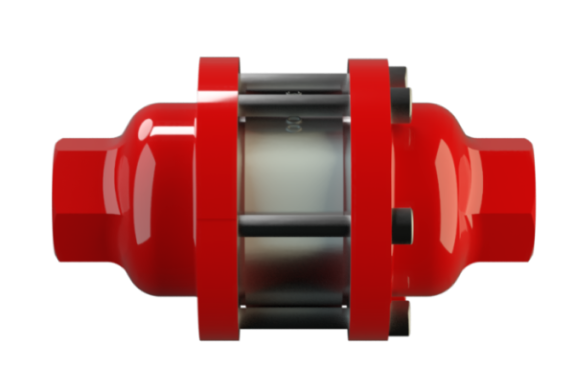

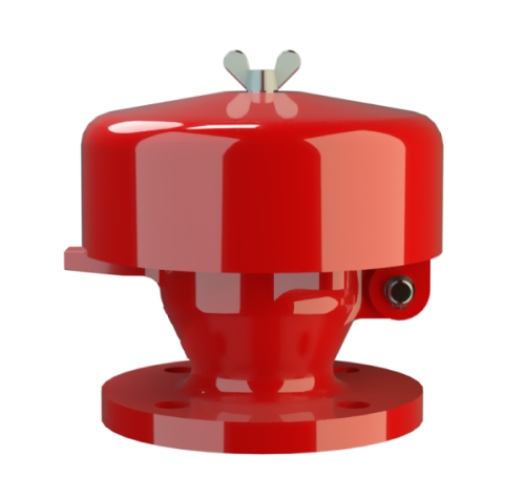

Lorem Ipsum The FLAMEFILTER® is made of wound metal strips and forms an effective band arrester. This flame-quenching principle is applied in PROTEGO® end-of-line Flame Arresters and in-line Flame Arresters.
When a mixture ignites in a gap, the flame spreads towards the unburned mixture. The volume expansion of the burned mixture pre-compresses the unburned mixture and accelerates the flame propagation.
Lorem Ipsum Heat dissipation to the large surface of the gap lowers the temperature below the ignition temperature Ignition temperature Lowest temperature (of a hot surface) at which ignition of a flammable gas or vapor in a mixture with air or air/inert gas occurs under specified test conditions. , thus extinguishing the flame.
The gap width and gap length determine the extinguishing effectiveness of the Flame Arrester.
A narrower and longer gap extinguishes the flame more effectively, while a wider and shorter gap reduces the pressure loss. Experiments can determine the optimum solution between the two conditions.
The PROTEGO® devices are working to our utmost satisfaction. PROTEGO®—who, with their technical expertise, supported in reducing the overall life cycle cost of the Detonation Flame Arresters installed at our plant by installing flame arresters, which are easy to clean and maintenance Maintenance Combination of all technical and administrative actions, including supervision actions, intended to maintain or restore a unit in working order. -friendly.
Application examples for PROTEGO® Flame Arresters
Stockage réfrigéré et cryogénique
Stockage en réservoirs
We provide engineered safety solutions.
Since 1954, PROTEGO® has built and provided Flame Arresters, Pressure and Vacuum Relief Valves and Tank Equipment Equipment Machines, appliances, fixed or mobile devices, control parts and accessories, and warning and prevention systems, whether separate or combined, intended for the generation, transfer, storage, measurement, control, and conversion of energy, and for the processing of materials, which have their own potential source of ignition and may cause an explosion. , now with the help of more than 750 employees worldwide.
