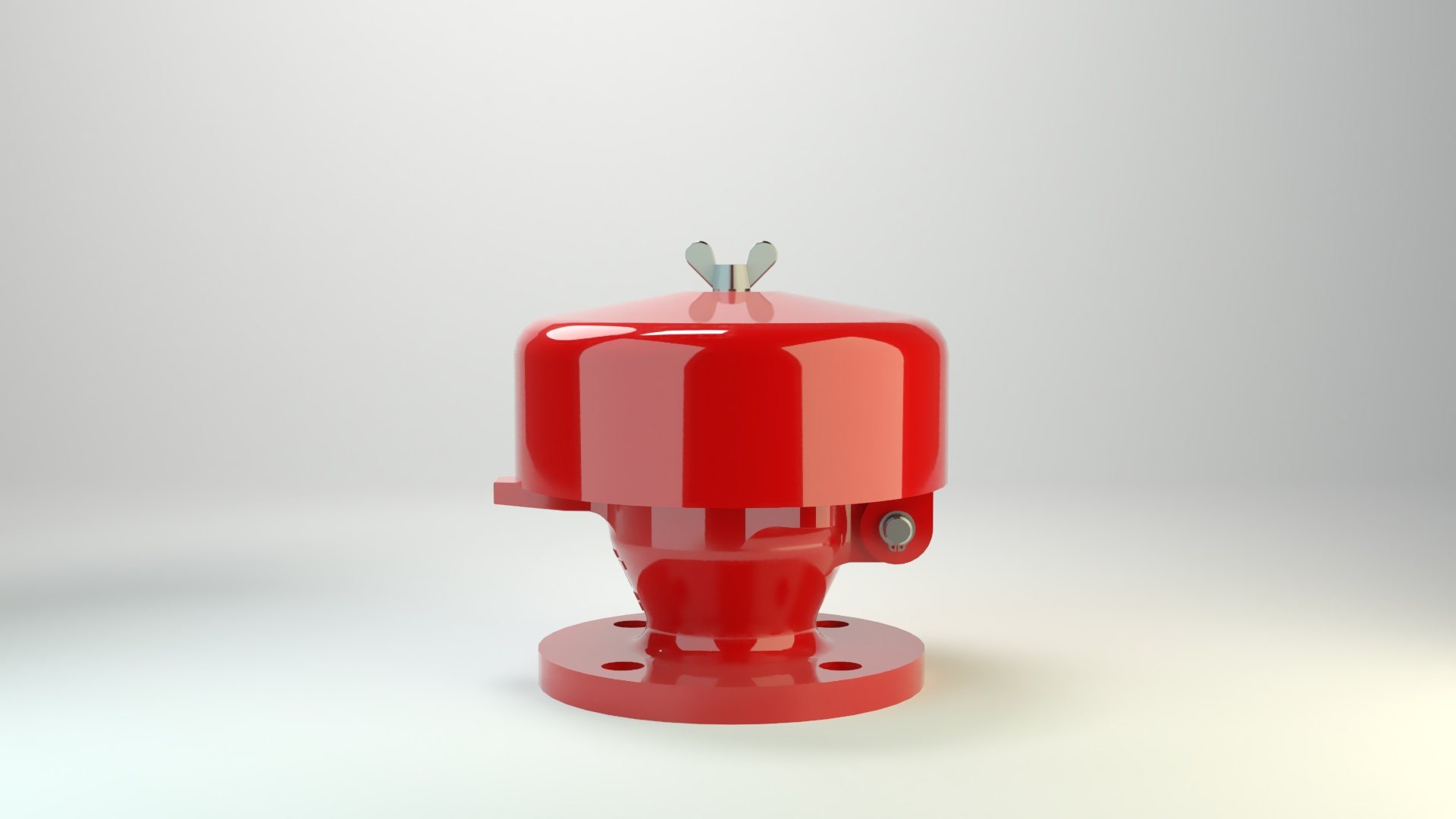

Deflagration Flame Arrester, endurance burning proof, End-of-Line

Features

Comprehensive Weather Protection
Weather Hood With Protection Screen Protects the PROTEGO® Flame Arrester Unit Against Environmental Impact, Such as Nesting Animals and Weather Conditions
Visible Fire Indication by Tilting Weather Hood

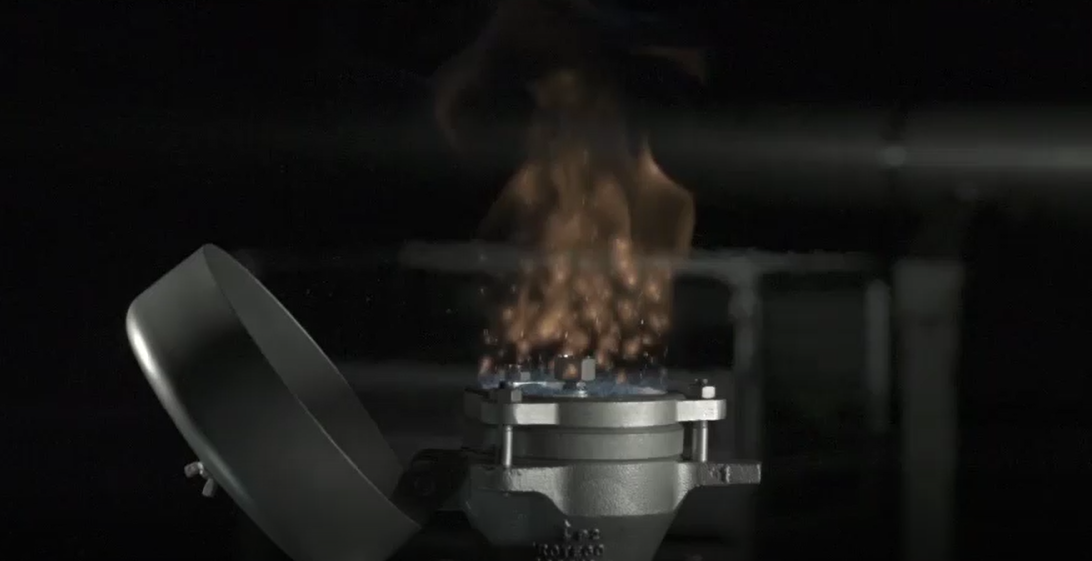

in Case of Fire, the Weather Hood Opens, Allowing the Flame to Be Seen From a Far Distance
Chemically Resistant
Centrally Aligned Melting Element Is Resistant to Chemicals
Modular Design
Allows Replacement and Cleaning of Single FLAMEFILTER®
Spare Parts
Cost-Effective Spare Parts
Easy Maintenance
Without Disassembling of the FLAMEFILTER®
Function and Description

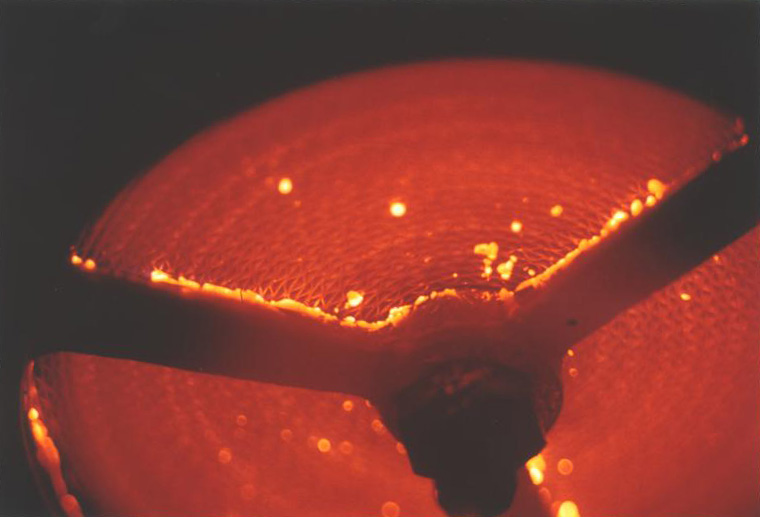

Main Component – PROTEGO® Flame Arrester Unit

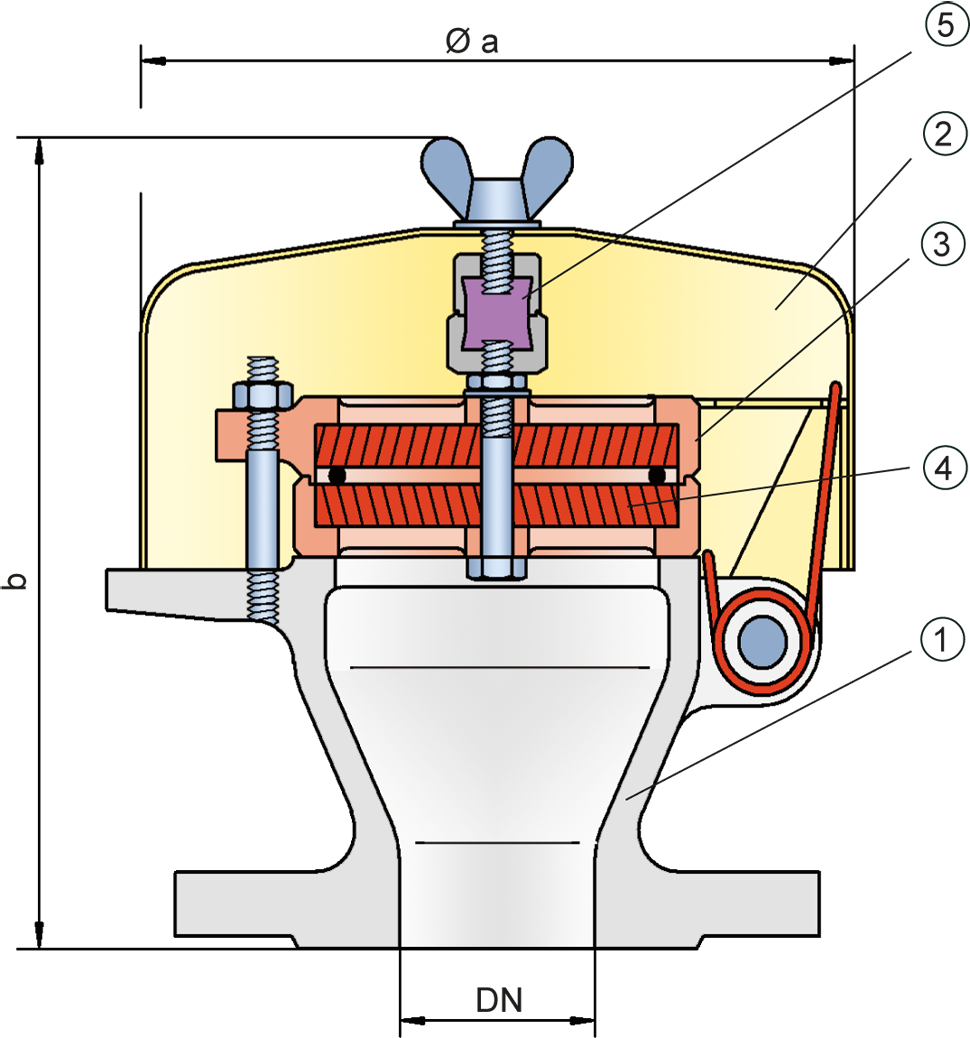

The PROTEGO® BE/HK consists of a housing Corps A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. (1), a weather hood Capot de protection contre les intempéries A weather hood is a cover to protect the internal components of a device from environmental influences. (2) and the PROTEGO® Flame Arrester Unit (3). During normal operation the metal weather hood is in a closed position. If a stabilized flame burns on the Flame Arrester Element surface, the fusible link (5), located in a center position, will melt and let the spring Ressort A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. loaded weather hood move into the open position. The PROTEGO® Flame Arrester Unit consists of two FLAMEFILTER® discs (4), which are installed in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. . The FLAMEFILTER® gap size depends on the devices intended use.

For Explosion Groups IIA to IIB3

Detailing the operating conditions such as the temperature, explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group and the composition of the fluid, enables PROTEGO® to select the best End-of-Line Deflagration Flame Arrester for your application. The PROTEGO® BE/HK Series End-of-Line Deflagration Flame Arrester is available for substances from explosion groups IIA to IIB3 (NEC groups D to C MESG ≥ 0.65 mm). In a modified design, this device is also available for Ethanol applications. The standard design can be used with operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of up to +60°C / 140°F. Type-approved according to ATEX Directive as well as other international standards.
Product Data

Dimensions

To select the nominal size Diamètre nominal The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN 20 / ¾"25 / 1"32 / 1¼"40 / 1½"50 / 2"65 / 2½"80 / 3"
a 163 / 6.42 163 / 6.42 163 / 6.42 183 / 7.20 183 / 7.20 218 / 8.58 218 / 8.58
BE / HK-IIA b 180 / 7.09 177 / 6.97 177 / 6.97 190 / 7.48 190 / 7.48 200 / 7.87 200 / 7.87
BE / HK-IIB3 b 180 / 7.09 177 / 6.97 177 / 6.97 - - - -

Dimensions in mm / inches

Dimensions for deflagration flame arrester with heating jacket upon request

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
> 0,90 mmIIAD
≥ 0,65 mmIIB3C

Special approvals upon request

Material selection for housing

Design BC
HousingSteelStainless Steel
Weather hoodSteelStainless Steel
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. AA, C

Special materials upon request

Material combinations of flame arrester unit

Design AC
FLAMEFILTER® cageStainless SteelStainless Steel
FLAMEFILTER®Stainless SteelHastelloy
SpacerStainless SteelHastelloy

Special materials upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

Flow Capacity Chart

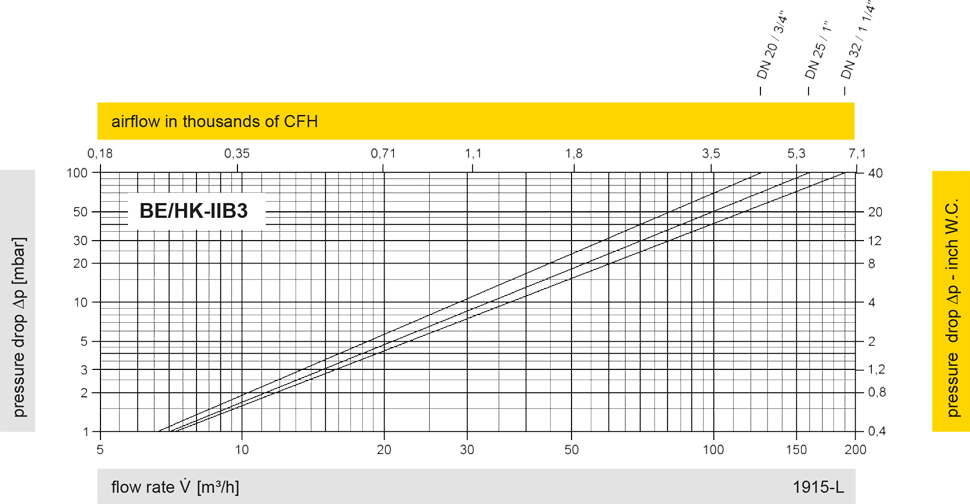

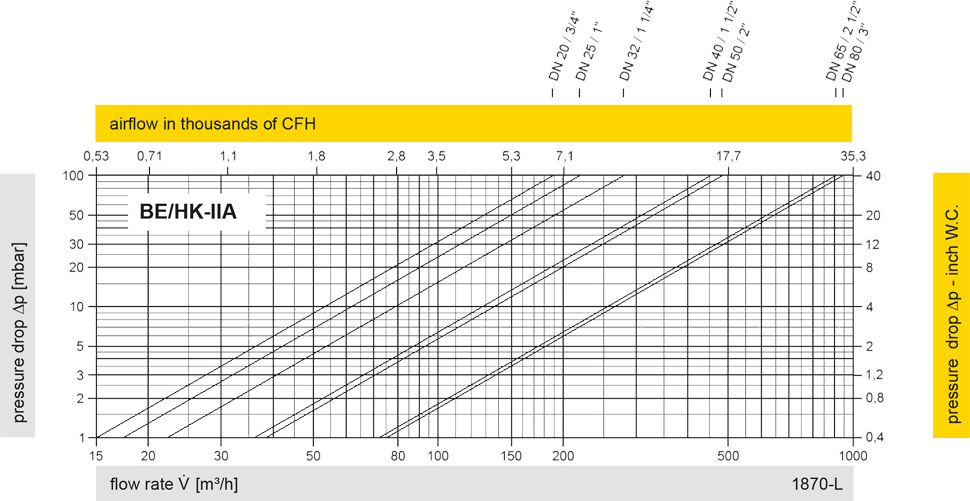

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
