BE/HR-E-IIB1

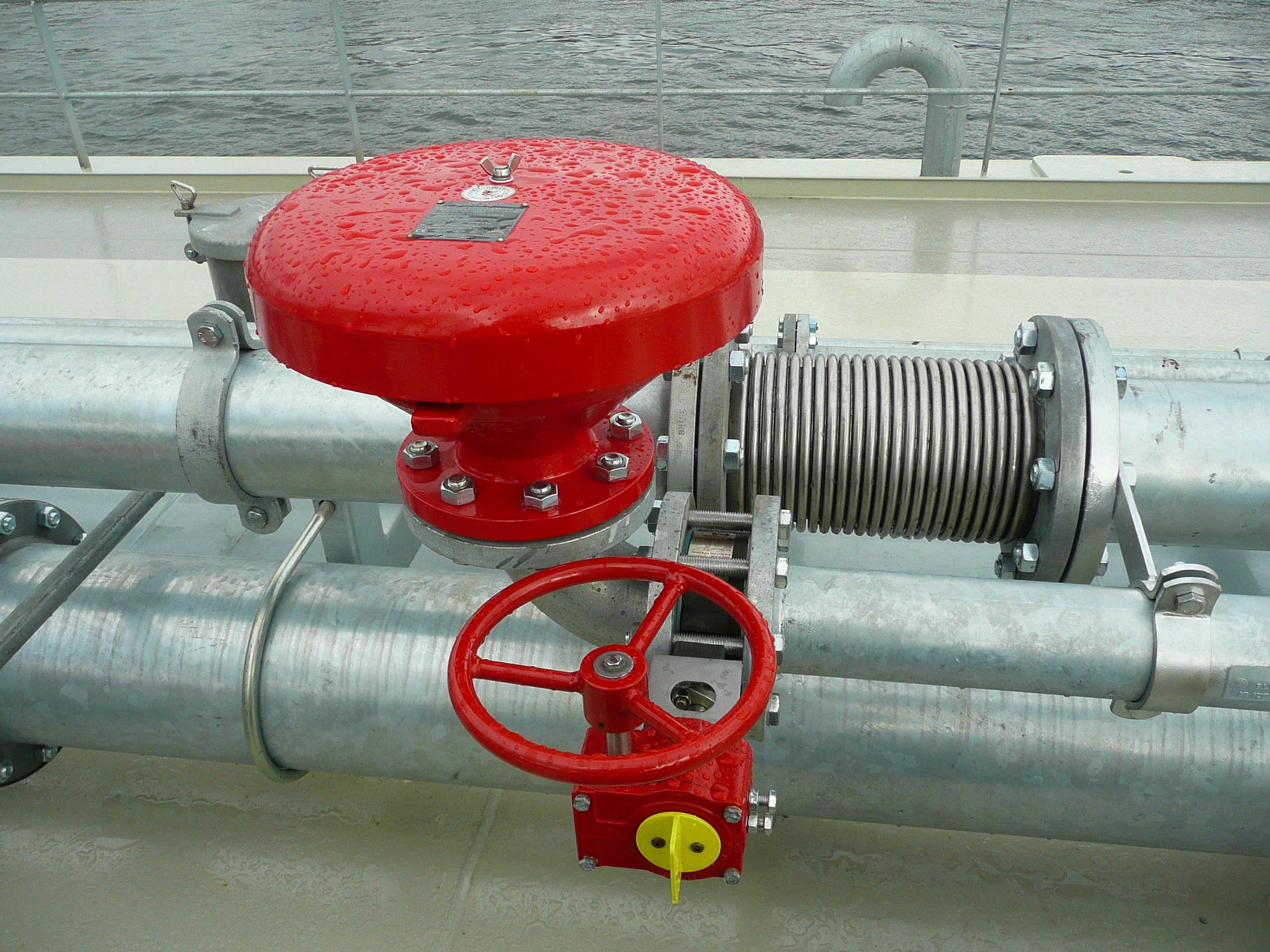

Deflagration Flame Arrester, endurance burning proof, End-of-Line

Features

Comprehensive Weather Protection
weather hood Weather hood A weather hood is a cover to protect the internal components of a device from environmental influences. with protection screen protects the PROTEGO® flame arrester unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. against environmental impact, such as nesting animals and weather conditions

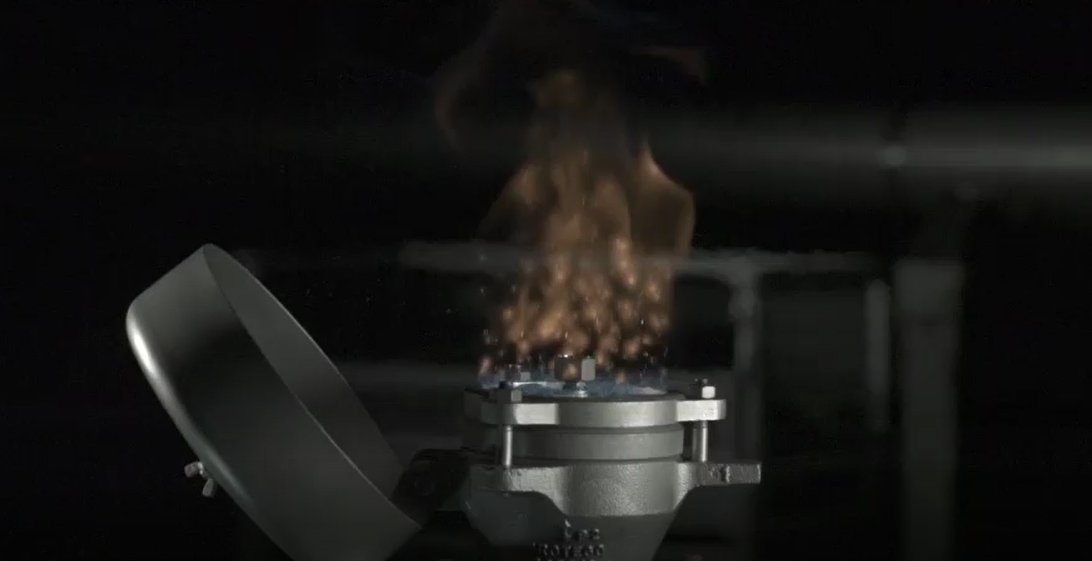

Visible Fire Indication by Tilting Weather Hood
in case of fire, the weather hood opens, allowing the flame to be seen from a far distance
Chemically Resistant
centrally aligned melting element Melting element The melting element is a component that consists of a housing with a lower and upper part. is resistant to chemicals
Endurance Burn Safety
for alcohols and hydrocarbons up to explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group IIB

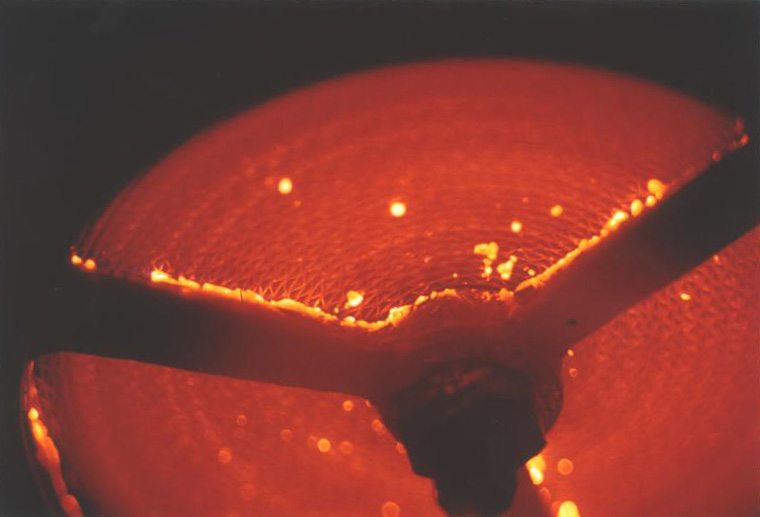

Safety Against Endurance Burning
Protection against Atmospheric Deflagration and Endurance Burning
Spare Parts
cost-effective flame arrester / spare parts
Modular Design
allows replacement and cleaning of single FLAMEFILTER®
Function and Description

Protection against atmospheric deflagration and endurance burning

The PROTEGO® BE/HR-E end-of-line deflagration Deflagration Explosion propagating at subsonic velocity (EN 1127-1:1997). flame arrester was specifically developed for vessels which are not pressurized and store Ethanol or other alcohols with a MESG ≥ 0,85 mm. The combustion of alcohol requires a modified flame arrester element design to provide protection against endurance burning Endurance burning Stabilized burning for an unlimited time. . In addition, the device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. provides protection against atmospheric deflagration. It is typically installed on in-breathing and out-breathing vent lines to prevent flame transmission into the vessel Vessel Container or structural envelope in which materials are processed, treated or stored. or plant caused by endurance burning or atmospheric deflagration.

Main component - PROTEGO® flame arrester

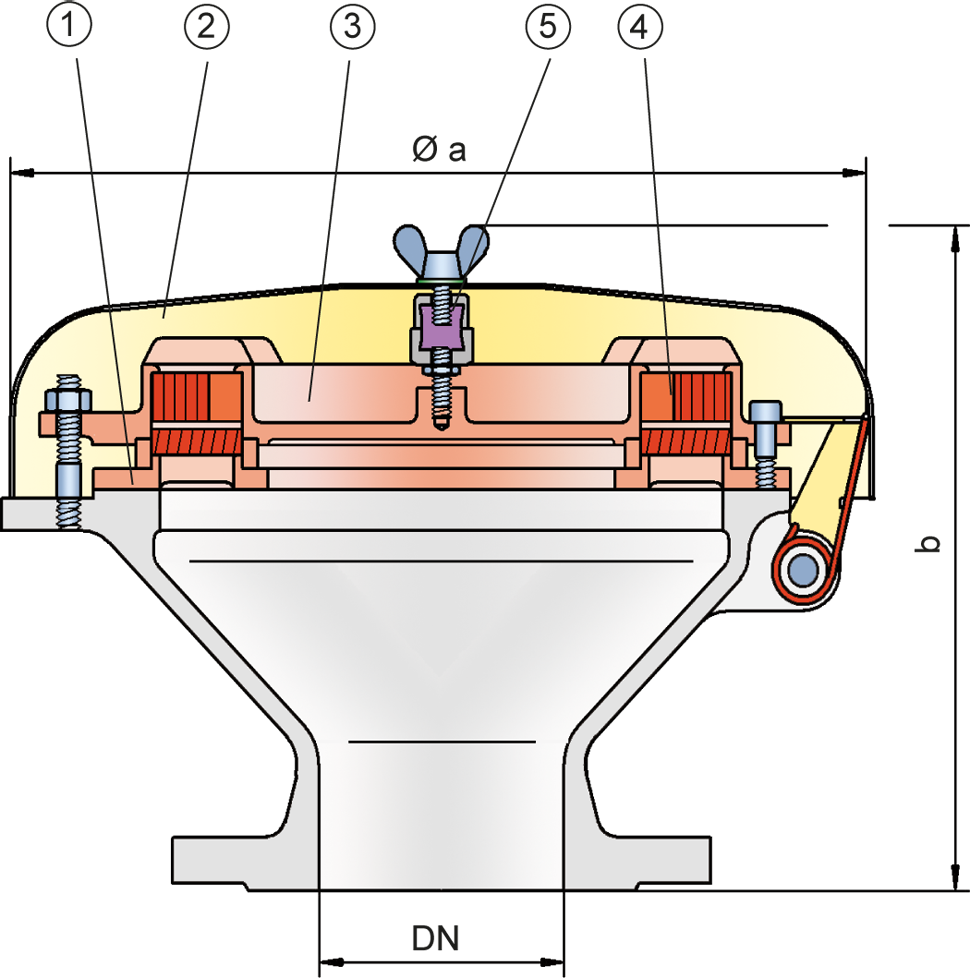

The PROTEGO® BE/HR-E consists of the housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. (1), a weather hood (2), and the PROTEGO® flame arrester unit (3). During normal operation, the metal weather hood is in a closed position. If a flame burns on the flame arrester element surface, the melting element (5), located in a center position, will melt, and the spring Spring A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. -loaded weather hood will open. The PROTEGO® flame arrester unit consists of two FLAMEFILTER® discs (4) which are installed in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. .

For Explosion group IIB1

The PROTEGO® BE/HR-E end-of-line deflagration flame arrester is available for alcohols and other substances with a MESG ≥ 0,85 mm. The standard design can be used for operating temperatures up to +60°C / 140°F. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Product Includes equipment, protective systems, devices, components and combinations of these. Data and Features

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN80 / 3"100 / 4"
a353 / 13.90353 / 13.90
b250 / 9.84250 / 9.84

Dimensions in mm / inches

Dimensions for Deflagration flame arrester with heating jacket upon request

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
≥ 0,85 mmIIB1–

Special approvals upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

Design Types and Specifications

There are two different designs:
End-of-line deflagration flame arrester End-of-line deflagration flame arrester A deflagration flame arrester is designed to prevent the transmission of a deflagration. , basic designBE/HR-E - –
End-of-line deflagration flame arrester with heating jacketBE/HR-E - H

Special designs available on request

Material selection for housing

Design BC
HousingSteelStainless Steel
Weather HoodSteelStainless Steel
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. AA, B

Special materials upon request

Material combinations of flame arrester unit

DesignAB
FLAMEFILTER® cageStainless SteelStainless Steel
FLAMEFILTER®Stainless SteelHastelloy
Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® se Stainless SteelHatelloy

Special materials upon request

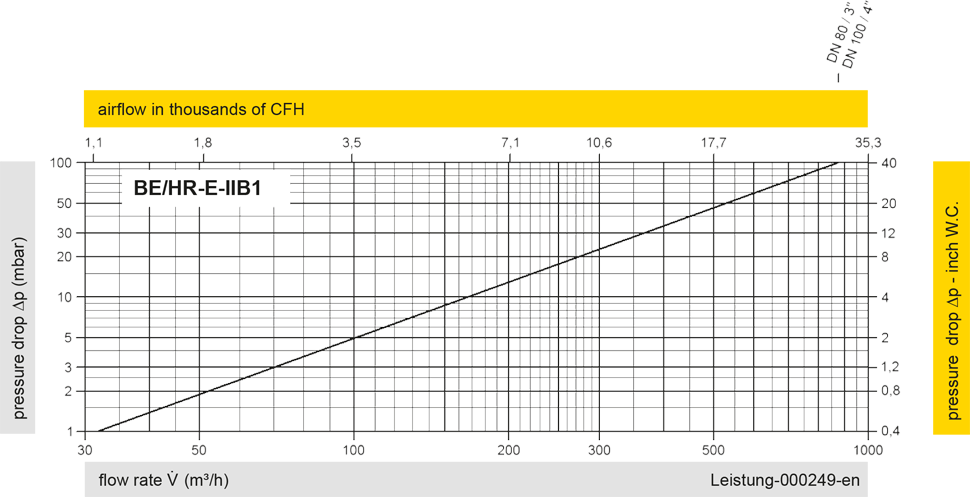

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
