DA-UB

In-Line Detonation Flame Arresterfor unstable and stable detonations and deflagrations in a straight through design with a shock tube, bidirectional

Features

Optimized Performance
due to the patented Shock Wave Guide Tube Effect (SWGTE)
Use of Patented Shock Wave Guide Tube Effect (SWGTE)
low number of FLAMEFILTER® discs due to the patented Shock Wave Guide Tube Effect (SWGTE)
Modular Design
allows replacement and cleaning of single FLAMEFILTER®
Differnt Series
Easy Maintenance
without disassembling of the FLAMEFILTER®
Extended Application Range
for elevated operating temperatures and pressures
Bi-Directional Flame Transmission
proof design
Temperature Sensors Possible
use of temperature sensors for G 1½ and G 2 is possible
Spare Parts
cost-effective flame arrester / spare parts
Low Costs
low operating and lifecycle costs
Function and Description

Main component - PROTEGO® flame arrester

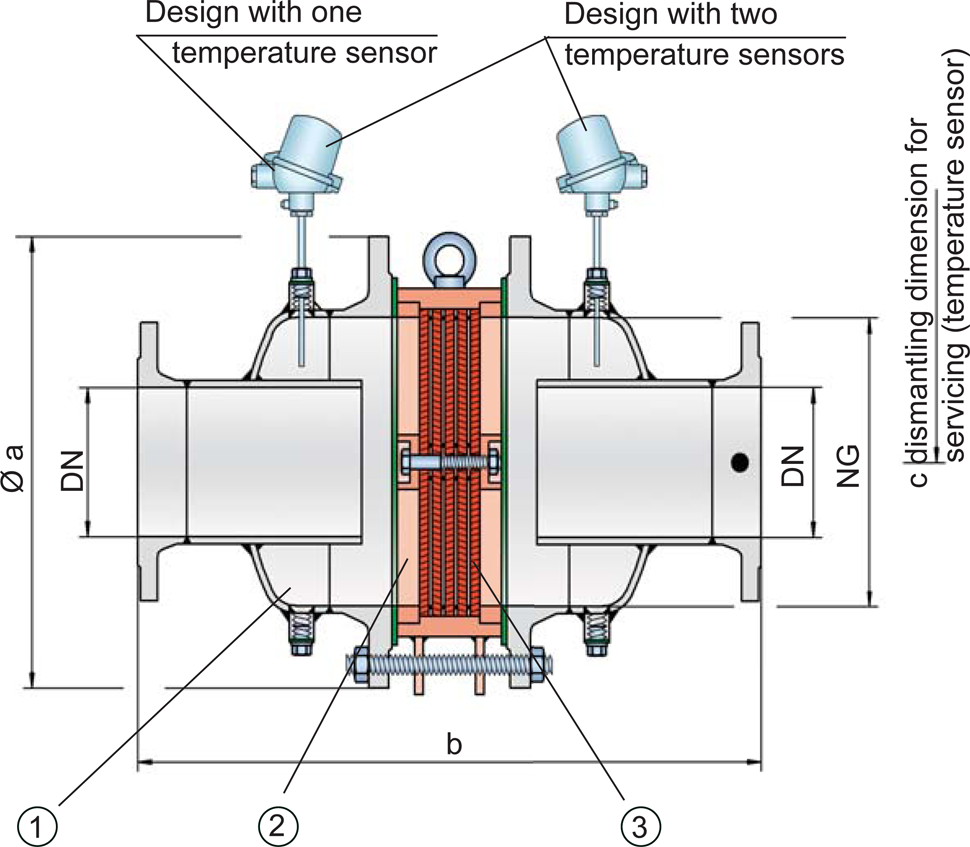

The devices are symmetrical and offer bi-directional flame arresting for deflagrations and stable and unstable detonations. The arrester essentially consists of two housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. parts with an integrated shock tube (1) and the PROTEGO® flame arrester unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. (2) in the center. The PROTEGO® flame arrester unit is modular and consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. . The number of FLAMEFILTER® discs and their gap size depends on the arrester’s intended use.

For Explosion groups IIA to IIB3

By specifying the operating conditions, such as the temperature, pressure, explosion group, and the composition of the fluid, the optimum detonation arrester can be selected from a series of approved devices. PROTEGO® DA-UB flame arresters are available for explosion groups IIA to IIB3 (NEC group D to C MESG ≥ 0.65 mm).

Many Individual Certifications

The standard design can be used at an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of up to +60°C / 140°F and an absolute operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. up to 1.1 bar / 15.9 psi. Devices with special approval for higher temperatures and pressures (see table 3) are available upon request. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.

Dimensions

To select nominal width/ nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (NG/DN) - combination, please use the flow capacity charts on the following pages
Additional nominal width/nominal size (NG/DN) - combinations for improved flow capacity upon request

NG150 / 6"150 / 6"200 / 8"300 / 12"400 / 16"500 / 20"600 / 24"700 / 28"800 / 32"1400 / 56"
DN≤ 50 / 2"65, 80 / 2 ½“, 3≤100 / 4"≤150 / 6"≤ 200 / 8"≤ 250 / 10"≤ 300 / 12"≤ 350 / 14"≤ 400 / 16"≤ 600 / 24"
a285 / 11.22285 / 11.22340 / 13.39445 / 17.52565 / 22.24670 / 26.38780 / 30.71895 / 35.241015 / 39.961675 / 65.94
bIIA -P1,1700 / 27.56800 / 31.501000 / 39.371200 / 47.241400 / 55.122200 / 86.61
IIA -P1,2388 / 15.28388 / 15.28488 / 19.21626 / 24.65
IIB3-P1,1500 / 19.69638 / 25.12724 / 28.50824 / 32.441000 / 39.371200 / 47.241400 / 55.12
IIB3-P1,2388 / 15.28388 / 15.28
c500 / 19.69500 / 19.69520 / 20.47570 / 22.44620 / 24.41670 / 26.38720 / 28.35770 / 30.31820 / 32.281060 / 41.73

Dimensions in mm / inches

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
≥ 0,65 mmIIB3C

Special approvals upon request

Selection of max. operating pressure

Expl. Gr.DN50 / 2"80 / 3"100 / 4"150 / 6"200 / 8"250 / 10"300 / 12"350 / 14"400 / 16"600 / 24"
NG150 / 6''150 / 6''200 / 8''300 / 12''400 / 16''500 / 20''600 / 24''700 / 28''800 / 32''1400 / 56''
IIAPmax1,8 / 26.11,8 / 26.11,6 / 23.21,6 / 23.21,1 / 15.91,1 / 15.91,1b / 15.91,1 / 15.91,1 / 15.91,6 / 23.2
IIB3Pmax1,5 / 21.71,5 / 21.71,5 / 21.71,5 / 21.71,1 / 15.91,1 / 15.91,1 / 15.91,1 / 15.91,1 / 15.9

Pmax = maximum allowable operating pressure in bar / psi absolute, higher operating pressure upon request in-between size up to Pmax upon request

Specification of max. operating temperature

≤ 60°C / 140°FTmaximum allowable operating temperature in °C
-Designation

higher operating temperatures upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

Design Types and Specifications

There are four different designs available:
Basic design of the detonation arresterDA-UB- – - –
Detonation Detonation Explosion propagating at supersonic velocity and characterized by a shock wave (EN 1127-1: 1997). arrester with two integrated temperature sensors* as additional protection against short time burning from both sidesDA-UB- TB - –
In-line detonation flame arrester with heating jacketDA-UB- H -

Additional special arresters upon request
*Resistance thermometer for device group II, category (1) 2 (GII cat. (1) 2)

Material selection for housing

DesignABC
HousingSteelStainless SteelHastelloy
Heating jacket (DA-UB-(T)-H-...)SteelStainless SteelStainless Steel
GasketPTFEPTFEPTFE
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. AB, CD

The housing is also available in Steel with an ECTFE coating Coating Coating is the application of a firmly adhering layer of shapeless material to the surface of a workpiece. . Special materials upon request

Material combinations of flame arrester unit

Design ABCD
FLAMEFILTER® cageSteelStainless SteelStainless SteelHastelloy
FLAMEFILTER®*Stainless SteelStainless SteelHastelloyHastelloy
Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® se Stainless SteelStainless SteelHastelloyHastelloy

*the FLAMEFILTER® are also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used.

Special materials upon request

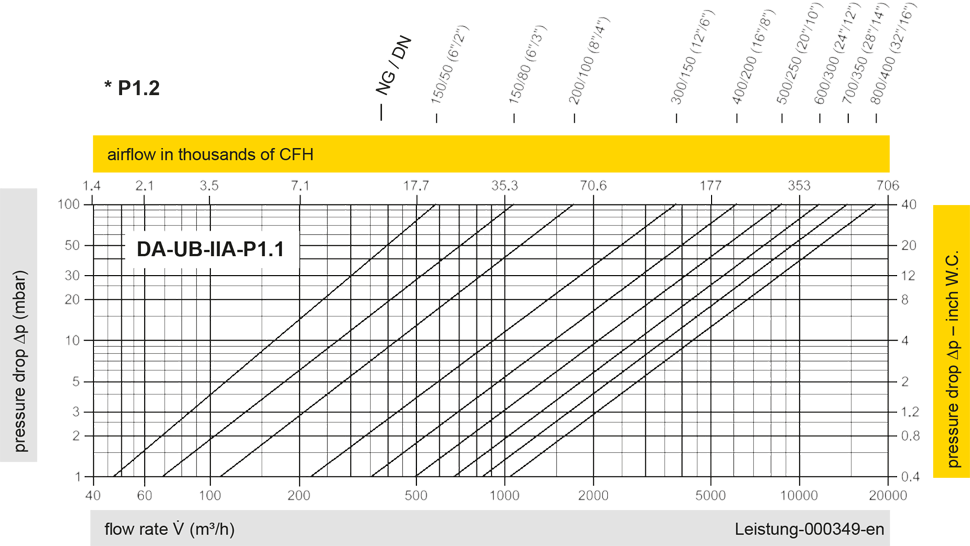

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
