EH/0S

Vent Cap, End-of-Line

Features

Cost Effective Device
Cost Effective Device
Vent Cap Provides Protection
Against Environmental Impact (Harsh Weather Conditions, Bird Nests, etc.)
Almost Maintenance Free
Almost Maintenance Free
Certified Flow Performance Curves
Certified Flow Performance Curves
Function and Description

Weather Protection Hood for Efficient Ventilation

The PROTEGO® EH/0S vent cap Capot de ventilation et d'aération End-of-line device for free out-breathing and in-breathing of plant components. This device can be flame transmission-proof. allows vessels which are not pressurized to vent. This device Appareil A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. prevents rain and dirt entering the vent line. The PROTEGO® EH/0S vent cap is not flame transmission proof. It is often used in combination with Detonation Flame Arresters Arrête-flammes Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. , when those are used in vent lines, installed at a position which creates a long run up distance from the end of the vent line to prevent endurance burning Endurance burning Stabilized burning for an unlimited time. . The PROTEGO® EH/0S will then be installed at the end of that vent line to prevent particles or rain from entering the line. The vent cap PROTEGO® EH/0S main components are a housing Corps A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. (1), a weather hood Capot de protection contre les intempéries A weather hood is a cover to protect the internal components of a device from environmental influences. (2) and a protection screen (3). The device is equipped with a fixed weather hood out of metal. The protection screen prevents particles or rain from entering the line.
Product Data

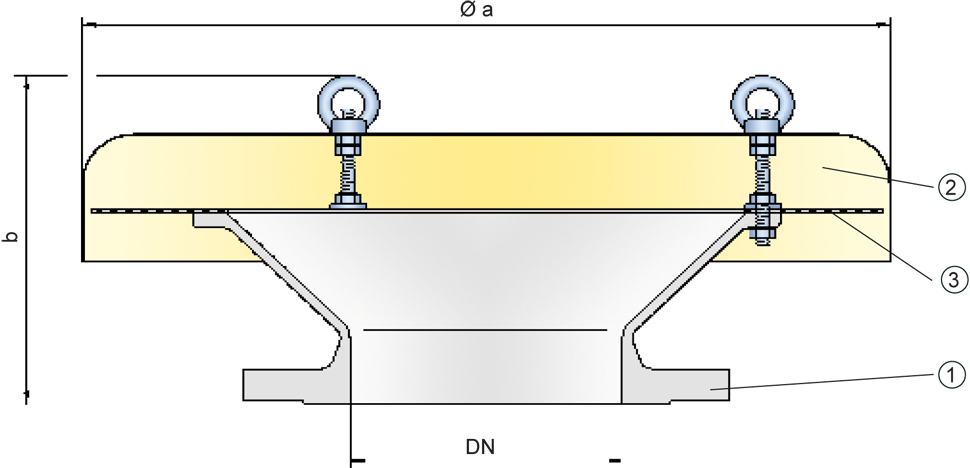

Dimensions

To select the nominal size Diamètre nominal The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN100 / 4" 150 / 6"200 / 8"250 / 10"300 / 12"350 / 14"400 / 16"500 / 20"600 / 24"
a295 / 11.61550 / 21.65550 / 21.65600 / 23.62600 / 23.62600 / 23.62650 / 25.59800 / 31.501000 / 39.37
b230 / 9.06240 / 9.45240 / 9.45325 / 12.80320 / 12.60335 / 13.19370 / 14.57385 / 15.16520 / 20.47

Dimensions in mm / inches

Material selection

Design AB
HousingSteelStainless Steel
Weather hoodStainless SteelStainless Steel

Special materials upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other types upon request

Flow Capacity Chart

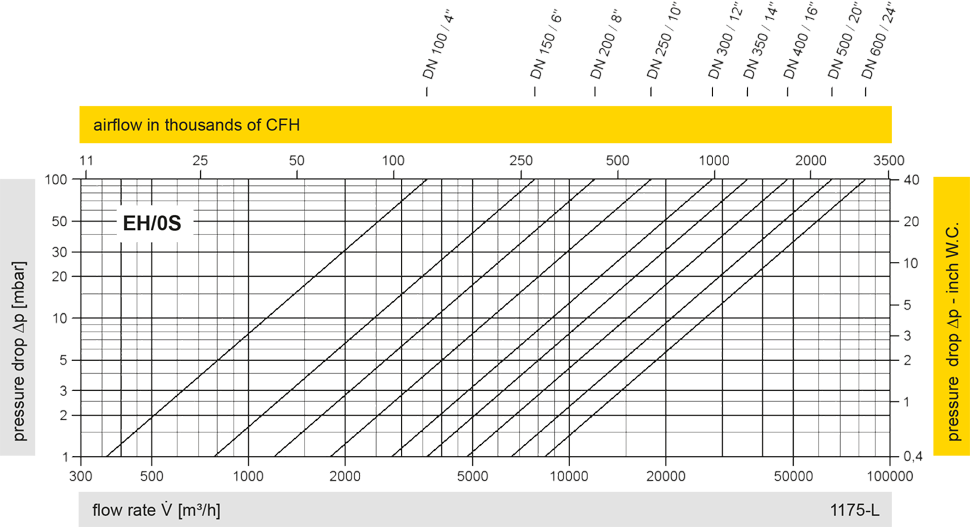

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.

Applications

Installations de transformation

Systèmes de combustion de vapeur

Stockage basse-pression

 Stockage d'alcool
