FA-E-IIA1

In-Line Deflagration Flame Arresterfor biogas, sewage gas and landfill gas, eccentric design, bidirectional, endurance burning proof (under atmospheric conditions up to DN 200 / 8“)

Features

Eccentric Design
prevents condensate build up
Versatile Application Options
various uses possible
Modular Design
allows replacement and cleaning of single FLAMEFILTER®
Fastest Disassembly and Assembly
of single FLAMEFILTER®
Provides Safety
protects against deflagrations for all explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. groups IIA, IIB3 and IIC (NEC groups D, C and B)
Temperature Sensors Possible
use of temperature sensors for G 1½ and G 2 is possible
Spare Parts
cost-effective flame arrester / spare parts
Function and Description

Excentric Design

The PROTEGO® FA-E-IIA1 series of in-line deflagration flame arresters Deflagration flame arrester Flame arrester designed to prevent the transmission of a deflagration. It can be an end-of-line flame arrester or an in-line flame arrester. is designed with an eccentric housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. to automatically drain condensate build up in the housing. The PROTEGO® FA-E-IIA1 in-line flame arrester In-line flame arrester An in-line flame arrester is a flame arrester, which has pipe connectors on either side of the flame arrester unit. was specially developed for bio-, sewage- and landfill-gas applications. The application as an endurance burning Endurance burning Stabilized burning for an unlimited time. proof in-line device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. under atmospheric conditions Atmospheric conditions Atmospheric conditions are pressures from 80 kPa till 110 kPa and temperatures from -20°C up to +60°C. without extensive temperature monitoring is of advantage.

For Explosion group IIA1

Due to its eccentric design and in contrast to conventional concentric flame arresters Flame Arresters A flame arrester, deflagration arrester, or flame trap is a device or form of construction that will allow free passage of a gas or gaseous mixture but will interrupt or prevent the passage of flame. the device can be installed in pipelines that run close to floors or walls. When installing the deflagration Deflagration Explosion propagating at subsonic velocity (EN 1127-1:1997). flame arrester make sure that the distance between potential ignition sources and the location of the installed device does not exceed the L/D ratio (pipe length/pipe diameter) for which the device was approved. According to EN ISO 16852 the installation limits are (L/D)max ≤ 50 for deflagration flame arresters for explosion group IIA1- methane (former designation Expl.gr. I).

Main component - PROTEGO® flame arrester

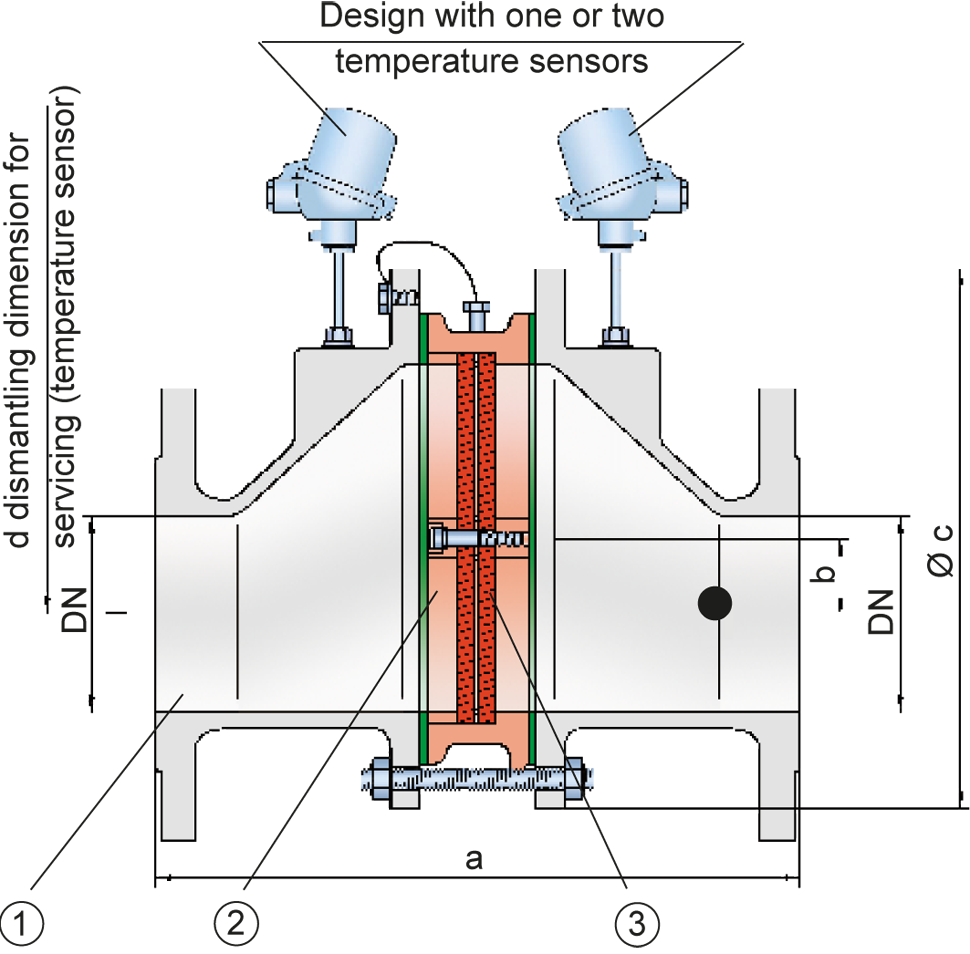

The deflagration flame arrester is symmetric and offers bidirectional flame transmission protection. The arrester essentially consists of two housing parts (1) and the PROTEGO® flame arrester unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. (2) in the center. The PROTEGO® flame arrester unit is modular and consist of several FLAMEFILTER® (3) and spacers firmly held in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. .

Many Individual Certifications

The PROTEGO® FA-E-IIA1 flame arrester protects against deflagrations and endurance burning (under atmospheric condition up to DN 200 / 8”) of explosion group IIA1 - methane (former designation Expl.gr. I). The PROTEGO® FA-E devices for substances of explosion groups IIA, IIB3 and IIC (NEC groups B, C, and D) are shown on separate pages. The standard design can be used up to an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of +60°C / 140°F and up to an absolute operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. of 1.1 bar / 15.9 psi. Numerous devices with special approvals can be obtained for higher temperatures and pressures. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Product Includes equipment, protective systems, devices, components and combinations of these. Data and Features

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN25 / 1"32 / 1¼"40 / 1½"50 / 2"65 / 2½"80 / 3"100 / 4"125 / 5"150 / 6"200 / 8"250 / 10"300 / 12"
a304 / 11.97304 / 11.97310 / 12.20314 / 12.36360 / 14.17364 / 14.33370 / 14.57435 / 17.09440 / 17.32450 / 17.72480 / 18.90500 / 16.69
b29 / 1.1429 / 1.1429 / 1.1429 / 1.1438 / 1.4938 / 1.4939 / 1.5365 / 2.5665 / 2.5655 / 2.1758 / 2.2860 / 2.36
c185 / 7.28185 / 7.28210 / 8.27210 / 8.27250 / 9.84250 / 9.84275 / 10.83385 / 15.16385 / 15.16450 / 17.72500 / 19.69575 / 22.64
d400 / 15.75400 / 15.75410 / 16.14410 / 16.14440 / 16.14440 / 16.14460 / 18.11520 / 20.47520 / 20.47540 / 21.26570 / 22.44600 / 23.62

Dimensions in mm / inches

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)
≥ 1.14 mmIIA1 (I)*

* former designation Expl.gr. I

Special approvals upon request

Selection of max. operating pressure

Expl.Gr.DN25 / 1"32 / 1¼"40 / 1½"50 / 2"65 / 2½"80 / 3"100 / 4"125 / 5"150 / 6"200 / 8"250 / 10"300 / 12"
IIA1 (I)Pmax1,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.51,9 / 27.5

Pmax = Maximum allowable operating pressure in bar / psi absolut, higher operating pressure upon request

Specification of max. operating temperature

≤ 60°C / 140°FTmaximum allowable operating temperature in °C
-Designation

higher operating temperatures upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

Design Types and Specifications

There are three different designs:
Basic in-line deflagration flame arrester In-line deflagration flame arrester A deflagration flame arrester is designed to prevent the transmission of a deflagration. An in-line deflagration flame arrester is equipped with a pipe connection on both sides. FA-E - –
In-line deflagration flame arrester with integrated temperature sensor Integrated temperature sensor Temperature sensor integrated into the flame arrester, as specified by the manufacturer of the flame arrester, in order to provide a signal suitable to activate counter measures. * as additional protection against short-time burning from one sideFA-E - T
In-line deflagration flame arrester with two integrated temperature sensors* for additional protection against short-time burning from both sidesFA-E - TB

Additional special devices available upon request
*Resistance thermometer for device group II, category (1) 2 (GII cat. (1) 2)

Material selection for housing

DesignBC
Housing Steel Stainless Steel
Gasket PTFE PTFE
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. A, B B

* for devices exposed to elevated temperatures above 150°C / 302°F (T150), gaskets made of PTFE.

The housing can also be delivered in carbon steel with an ECTFE coating Coating Coating is the application of a firmly adhering layer of shapeless material to the surface of a workpiece. . Special materials upon request.

Material combinations of flame arrester unit

Design AB
FLAMEFILTER® cageSteelStainless Steel
FLAMEFILTER®*Stainless SteelStainless Steel
SpacersStainless SteelStainless Steel

*the FLAMEFILTER® is also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used.

Special materials upon request.

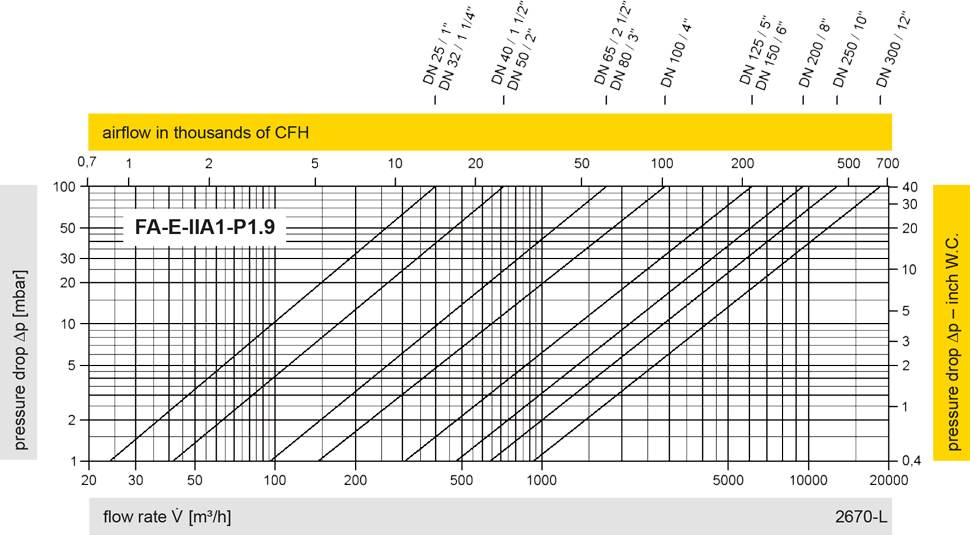

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
