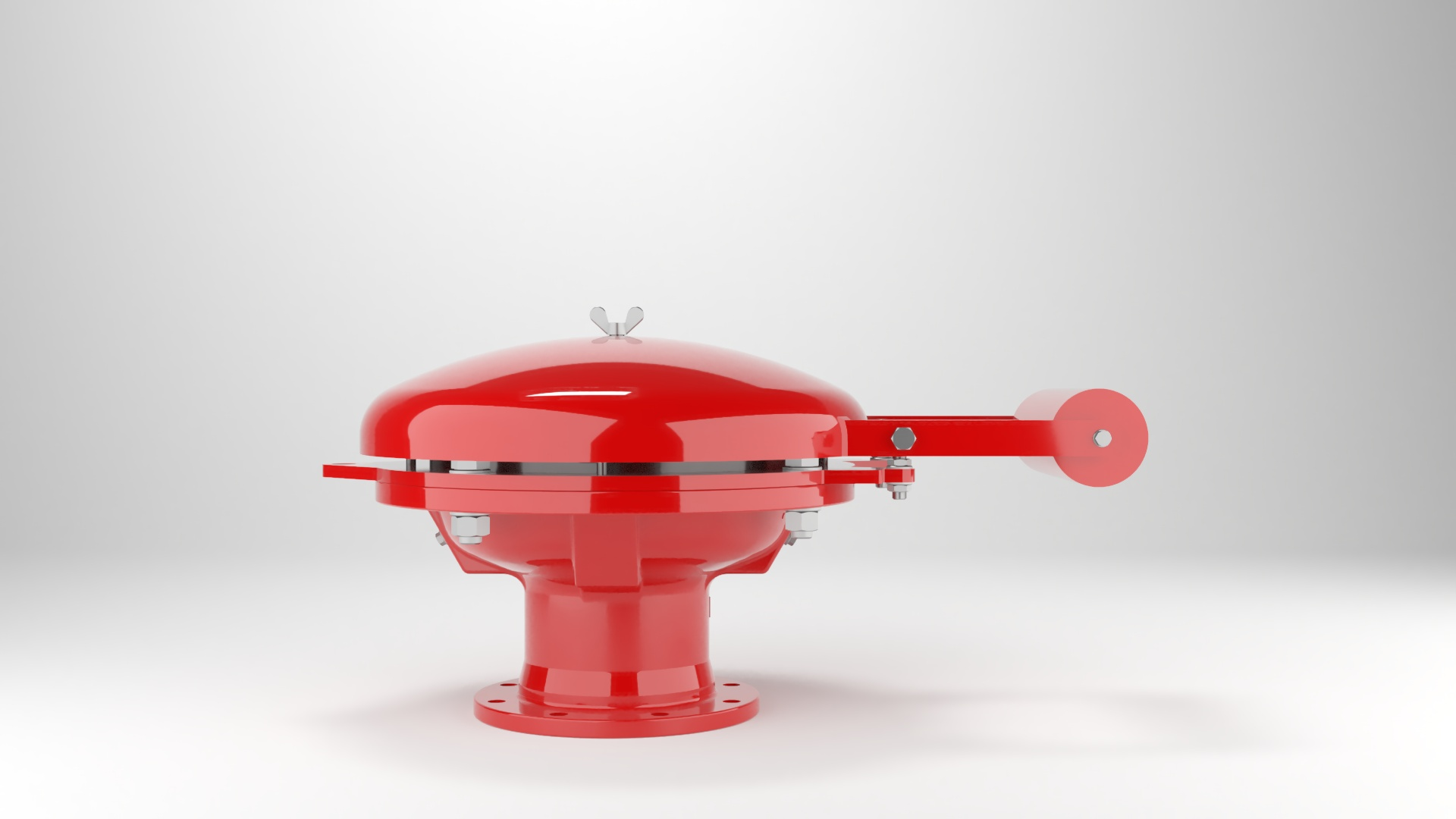

BE/HR-400

Deflagration Flame Arrester, endurance burning proof, End-of-Line

Features

Comprehensive Weather Protection
weather hood Weather hood A weather hood is a cover to protect the internal components of a device from environmental influences. with protection screen protects the PROTEGO® flame arrester unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. against environmental impact, such as nesting animals and weather conditions

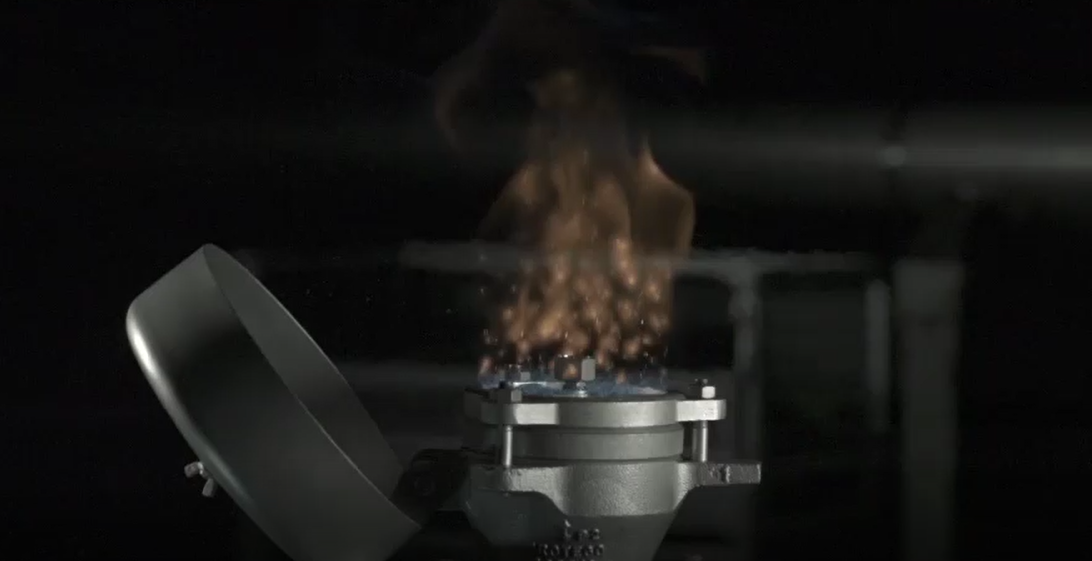

Safety Against Endurance Burning
Protection against Atmospheric Deflagration and Endurance Burning

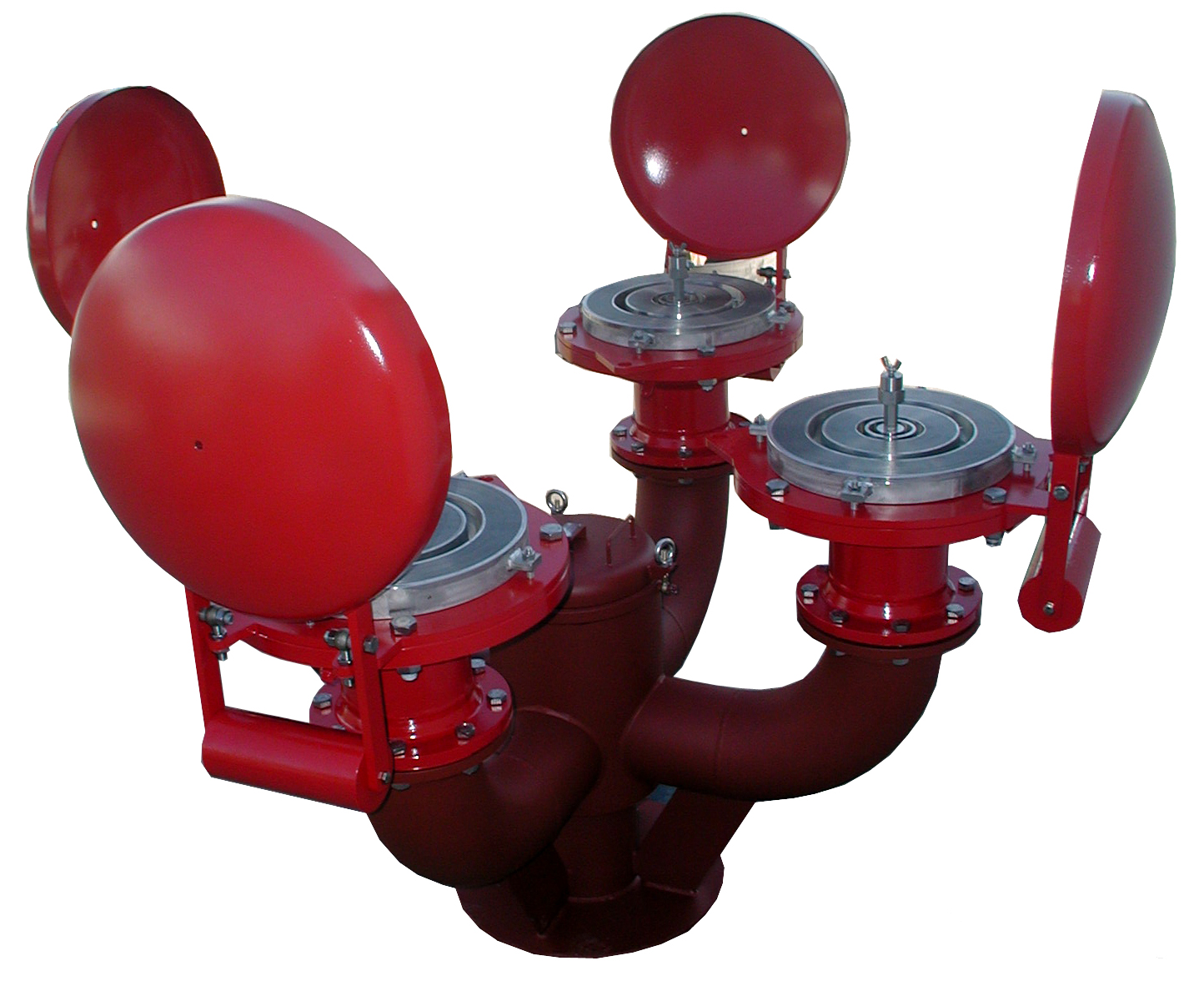

Visible Fire Indication by Tilting Weather Hood
in case of fire, the weather hood opens, allowing the flame to be seen from a far distance
Chemically Resistant
centrally aligned melting element Melting element The melting element is a component that consists of a housing with a lower and upper part. is resistant to chemicals
Explosion Group IIA
endurance burning Endurance burning Stabilized burning for an unlimited time. protection hydrocarbons of explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group IIA (NEC group D)
Maintenance-Friendly PROTEGO® Flame Arresters
use of maintenance Maintenance Combination of all technical and administrative actions, including supervision actions, intended to maintain or restore a unit in working order. -friendly PROTEGO® flame arrester unit possible
Function and Description

Protection against atmospheric deflagration and endurance burning

The PROTEGO® BE/HR-400 end-of-line deflagration Deflagration Explosion propagating at subsonic velocity (EN 1127-1:1997). flame arrester is designed to protect large vessels and process engineering apparatus which are not pressurized. The device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. provides protection against flame transmission through atmospheric deflagration and stabilized flames which can burn for very long time on the flame arrester element surface, so called endurance burning. Main application area is on in- and out-breathing and vent lines, with the goal to prevent flame transmission caused by endurance burning or atmospheric deflagration from propagating into the vessel Vessel Container or structural envelope in which materials are processed, treated or stored. or plant.

Main component - PROTEGO® flame arrester

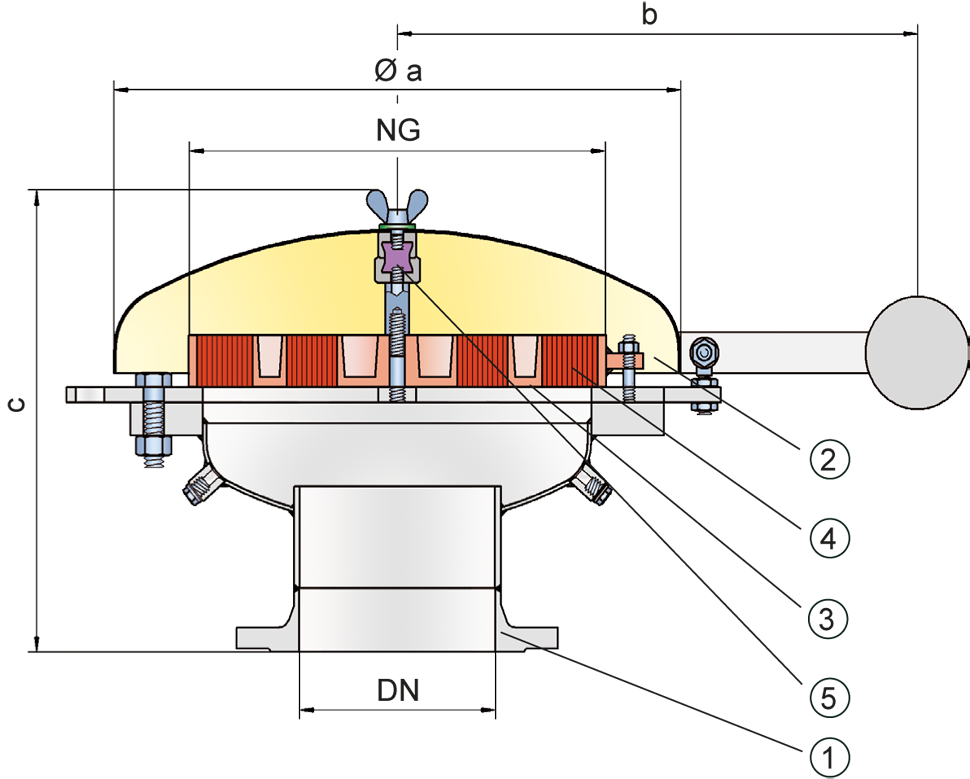

The BE/HR-400 consists of a housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. (1), a weather hood (2) and the PROTEGO® flame arrester unit (3). During normal operation, the metal weather hood is in a closed position. If a stabilized flame burns on the flame arrester element surface, the fusible link (5), located in a center position, will melt and an external counterweight will move the weather hood into the open position. The PROTEGO® flame arrester unit consists of two FLAMEFILTER® discs (4), which are installed in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. .

For Explosion group IIA

The FLAMEFILTER® discs are arranged concentrically and are manufactured in a patented process. The FLAMEFILTER® casing has integrated cooling channels to allow heat to be transferred away from the center of the device. The PROTEGO® BE/HR-400 end-of-line deflagration flame arrester is available for substances from explosion group IIA (NEC group D). The standard design can be used for operating temperatures up to +60°C / 140°F. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Product Includes equipment, protective systems, devices, components and combinations of these. Data and Features

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN150 / 6" 200 / 8"
NG400 / 16"400 / 16"
a600 / 23.62600 / 23.62
b545 / 21.46545 / 21.46
c485 / 19.09485 / 19.09

Dimensions in mm / inches

Dimensions for deflagration flame arrester with integrated heating coil Heating coil A heating coil is a pipe connection consisting of several pipe sections. upon request

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
> 0,90 mmIIAD

Special approvals upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

Design Types and Specifications

There are two different designs:
End-of-line deflagration flame arrester End-of-line deflagration flame arrester A deflagration flame arrester is designed to prevent the transmission of a deflagration. , basic designBE/HR - –
End-of-line deflagration flame arrester with heating coilBE/HR - R

Special designs available on request

Material selection for housing

Design AB
HousingSteelStainless Steel
Weather hoodSteelStainless Steel
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. A, BB

Special materials upon request

Material combinations of flame arrester unit

Design AB
FLAMEFILTER® cageSteelStainless Steel
FLAMEFILTER®Stainless SteelStainless Steel

Special materials upon request

Flow Capacity Chart

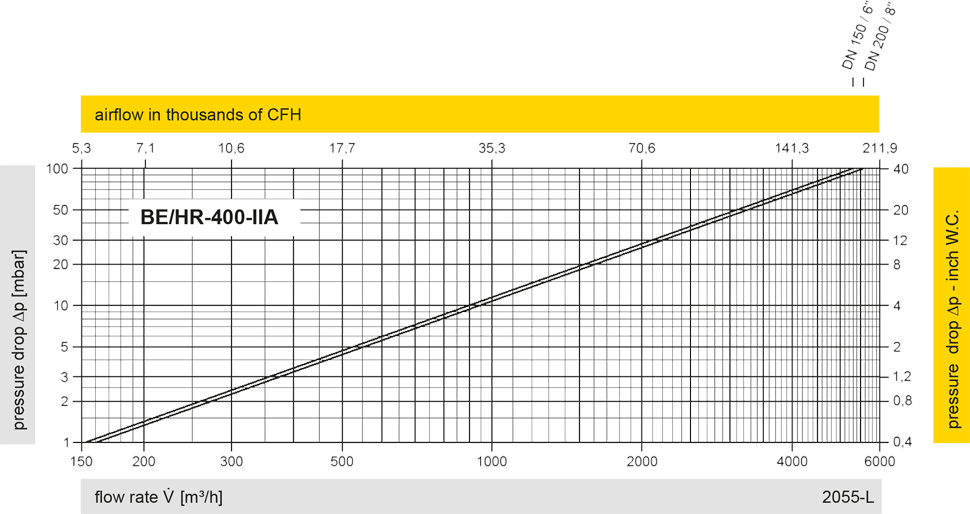

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
