E/KS

Vent Cap, End-of-Line

Features

Virtually Maintenance-Free
Low Costs
low operating and lifecycle costs
Function and Description

in- and out-breathing - for use with aggressive products

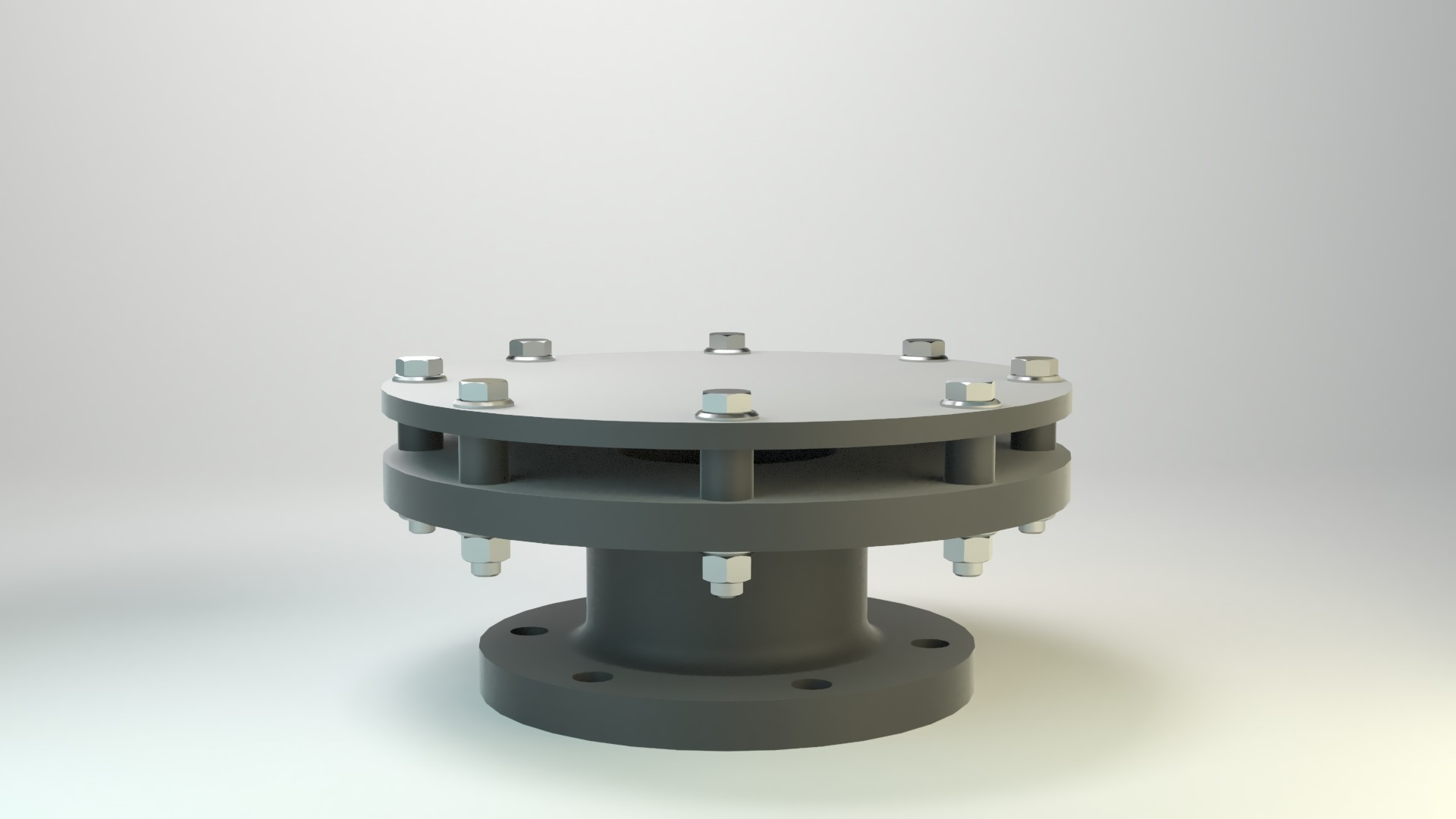

The E/KS vent cap Vent cap End-of-line device for free out-breathing and in-breathing of plant components. This device can be flame transmission-proof. allows vessels which are not pressurize to vent. The vent cap is made out of plastic and is the best solution in applications with aggressive media. This E/KS vent cap prevents rain and dirt from entering the vent line. The device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. is not flame transmission proof.

Protective cover for preventing flame transmission

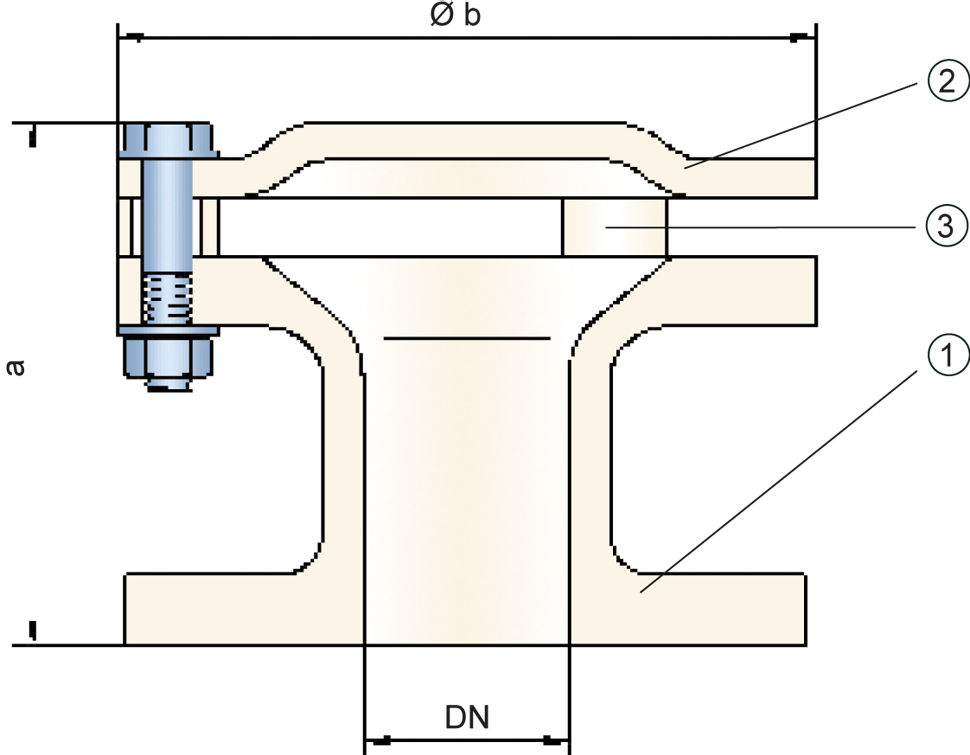

It is often used in combination with detonation flame arresters Detonation flame arrester Flame arrester designed to prevent the transmission of a detonation. , when those are used in vent lines, installed at a position which creates a long run up distance from the end of the vent line to prevent endurance burning Endurance burning Stabilized burning for an unlimited time. . The E/KS vent cap will then be installed at the end of that vent line to prevent particles or rain from entering the line. The vent caps main components are a housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. (1), a weather hood (2) and spacers (3).

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN50 / 2" 80 / 3" 100 / 4" 150 / 6" 200 / 8"
a135 / 5.31140 / 5.51145 / 5.71195 / 7.68200 / 7.87
b170 / 6.69230 / 9.06300 / 11.81375 / 14.76450 / 17.72

Dimensions in mm / inches

Material selection

Design ABC
HousingPEPPPVDF
Weather hoodPEPPPVDF

Special materials upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other types upon request

Design Types and Specifications

Following designs are available:
Vent cap, basic designE/KS

Special designs available on request

Flow Capacity Chart

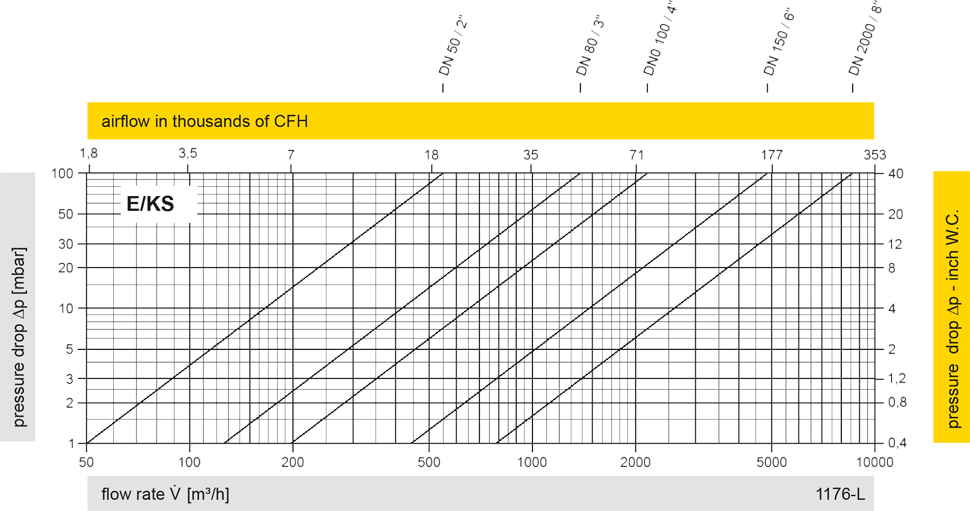

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
