Soupapes de purge
PROTEGO®

Une rangée de grandes vannes de purge industrielles rouges trône au-dessus de tuyauteries bleues et de volants, sur une plate-forme extérieure, sous un ciel d'un bleu limpide.

Réduction des émissions de vapeur et exploitation sûre de l'installation

In closed containers or tanks, managing pressure is crucial. PROTEGO® Pressure and Vacuum Vacuum Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. Relief Valves ensure safe operations by releasing accumulated pressure and compensating for vacuum conditions.

Dans les conteneurs ou réservoirs fermés, la gestion de la pression est cruciale. Les soupapes de surpression et de dépression PROTEGO® garantissent la sécurité des opérations en évacuant la pression accumulée et en compensant les conditions de dépression. Conçues pour des processus tels que le chargement, le déchargement, le nettoyage à la vapeur et les effets thermiques, elles peuvent servir de soupapes de surpression, de soupapes de dépression ou de soupapes combinées.

Reconnues par des secteurs tels que le pétrole et le gaz, la chimie, la pharmacie et la bioénergie, les soupapes PROTEGO® garantissent sécurité et efficacité grâce à leur conception innovante et leurs performances supérieures.

Pressure and Vacuum Relief Valves

Pressure and Vacuum Relief Valves with Flame Arrester

Emergency Relief Valves

Please select a Bretaher Valve from our range below

Filter products
Device
Type
Place of Installation
Explosion Group
Pressure/Vacuum
Material
Size DN
Design
Heating Jacket
Horizontal / Vertical
Combustion Process
Connection Type

Pressure Relief Valve

BE/HR-D

Explosion Group

IIA1
D / IIA

Pressure Range:

2 up to 35 mbar

Pressure Relief Valve

D-SVL-EB-IIA

Explosion Group

IIA1
D / IIA

Pressure Range:

2 up to 60 mbar

Pressure Relief Valve

D/KSM

Pressure Range:

5 up to 100 mbar

Pressure or Vacuum Relief Valve

D/PA(L)

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-2 up to -60 mbar

Pressure Relief Valve

D/SVL

Pressure Range:

2 up to 60 mbar

High Velocity Pressure Relief Valve

DE-S-IIC

Explosion Group

B / IIC

Pressure Range:

60 up to 350 mbar

High Velocity Pressure Relief Valve

DE/S-IIB

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3
B / IIB

Pressure Range:

100 up to 500 mbar

High Velocity Pressure Relief Valve

DE/S-IIB3

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

100 up to 500 mbar

High Velocity Pressure Relief Valve

DE/S-MK VI - IIB3

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

60 up to 350 mbar

Pressure and Vacuum Relief Valve, In-Line

DV/ZT

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-2 up to -60 mbar

Pressure and Vacuum Relief Valve, In-Line

DV/ZT-F

Pressure Range:

60 up to 500 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure and Vacuum Relief Valve, In-Line

DV/ZU

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure and Vacuum Relief Valve, In-Line

DV/ZU-F

Pressure Range:

60 up to 500 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure and Vacuum Relief Valve, In-Line

DV/ZW

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure and Vacuum Relief Valve, In-Line

DV/ZW-F

Pressure Range:

60 up to 500 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure or Vacuum Relief Valve, In-Line

DZ/E

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-2 up to -60 mbar

Pressure or Vacuum Relief Valve, In-Line

DZ/E-F

Pressure Range:

60 up to 500 mbar

Vacuum Range:

-60 up to -500 mbar

Pressure or Vacuum Relief Valve, In-Line

DZ/EA

Pressure Range:

5 up to 50 mbar

Vacuum Range:

-5 up to -50 mbar

Pressure or Vacuum Relief Valve, In-Line

DZ/EA-F

Pressure Range:

60 up to 500 mbar

Vacuum Range:

-60 up to -500 mbar

Pressure or Vacuum Relief Valve, In-Line

DZ/T

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-2 up to -60 mbar

Pressure or Vacuum Relief Valve, In-Line

DZ/T-F

Pressure Range:

60 up to 500 mbar

Vacuum Range:

-60 up to -500 mbar

Emergency pressure relief valve

ER-V-LP

Pressure Range:

3.4 up to 15 mbar

Emergency pressure relief valve

ER/V

Pressure Range:

5 up to 40 mbar

Pressure Relief Valve

ER/V-F

Pressure Range:

60 up to 500 mbar

Pressure Relief Valve

ER/VH

Pressure Range:

25 up to 60 mbar

Pressure Relief Valve

P/EB

Explosion Group

IIA1
D / IIA

Pressure Range:

3.5 up to 210 mbar

Pressure Relief Valve

P/EB-E

Explosion Group

IIA1
D / IIA
C / IIB1

Pressure Range:

3.5 up to 210 mbar

Pressure Relief Valve

P/EBR

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

3.5 up to 210 mbar

Pressure Relief Valve

P/EBR-E-IIB1

Explosion Group

IIA1
D / IIA
C / IIB1

Pressure Range:

3.5 up to 210 mbar

Pressure Relief Valve

P/EBR-E-IIB3

Explosion Group

IIA1
D / IIA
C / IIB1

Pressure Range:

3.5 up to 210 mbar

Pressure Relief Valve

P/EL

Pressure Range:

3.5 up to 210 mbar

Pressure Relief Valve

P/ELR

Pressure Range:

3.5 up to 210 mbar

Pressure/Vacuum Relief Valve

PV/EB

Explosion Group

IIA1
D / IIA

Pressure Range:

2 up to 210 mbar

Vacuum Range:

-3.5 up to -35 mbar

Pressure/Vacuum Relief Valve

PV/EB-E

Explosion Group

IIA1
D / IIA
C / IIB1

Pressure Range:

2 up to 210 mbar

Vacuum Range:

-3.5 up to -35 mbar

Pressure/Vacuum Relief Valve

PV/EBR

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

2 up to 210 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure/Vacuum Relief Valve

PV/EBR-E-IIB1

Explosion Group

IIA1
D / IIA
C / IIB1

Pressure Range:

2 up to 210 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure/Vacuum Relief Valve

PV/EBR-E-IIB3

Explosion Group

IIA1
D / IIA
C / IIB3

Pressure Range:

2 up to 210 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure and Vacuum Relief Valve

PV/EL

Pressure Range:

2 up to 210 mbar

Vacuum Range:

-3.5 up to -35 mbar

Pressure and Vacuum Relief Valve

PV/ELR

Pressure Range:

2 up to 210 mbar

Vacuum Range:

-3.5 up to -50 mbar

Pressure or Vacuum Relief Valve, In-Line

R/KSM

Pressure Range:

5 up to 100 mbar

Vacuum Range:

-5 up to -100 mbar

Pressure Relief Valve

SD/BS-H

Pressure Range:

5 up to 210 mbar

Vacuum Relief Valve

SV/E

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3
B / IIB
B / IIC

Vacuum Range:

-2 up to -60 mbar

Vacuum Relief Valve

SV/E-1-0

Vacuum Range:

-2 up to -60 mbar

Vacuum Relief Valve

SV/T-0-H

Vacuum Range:

-7 up to -50 mbar

Pressure Diaphragm Valve

UB/DF

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

3.5 up to 140 mbar

Pressure/Vacuum Diaphragm Valve

UB/SF

Explosion Group

D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

3.5 up to 140 mbar

Vacuum Range:

-3.5 up to -35 mbar

Pressure/Vacuum Diaphragm Valve

UB/SF-G

Explosion Group

D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

3.5 up to 140 mbar

Vacuum Range:

-3.5 up to -3.5 mbar

Pressure/Vacuum Diaphragm Valve

UB/SF-IIA1

Explosion Group

IIA1

Pressure Range:

3.5 up to 150 mbar

Vacuum Range:

-3.5 up to -35 mbar

Vacuum Diaphragm Valve

UB/VF

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Vacuum Range:

-3.5 up to -35 mbar

Vacuum Relief Valve

V/KSM

Vacuum Range:

-5 up to -100 mbar

Vacuum Relief Valve

V/SV-AD-IIB3

Explosion Group

C / IIB3

Vacuum Range:

-2 up to -35 mbar

Pressure/Vacuum Relief Valve

VD-SV-EB

Explosion Group

IIA1
D / IIA

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-2 up to -60 mbar

Pressure and Vacuum Relief Valve

VD/KSM

Pressure Range:

5 up to 100 mbar

Vacuum Range:

-5 up to -100 mbar

Pressure and Vacuum Relief Valve

VD/KSM-PA

Pressure Range:

5 up to 100 mbar

Vacuum Range:

-5 up to -100 mbar

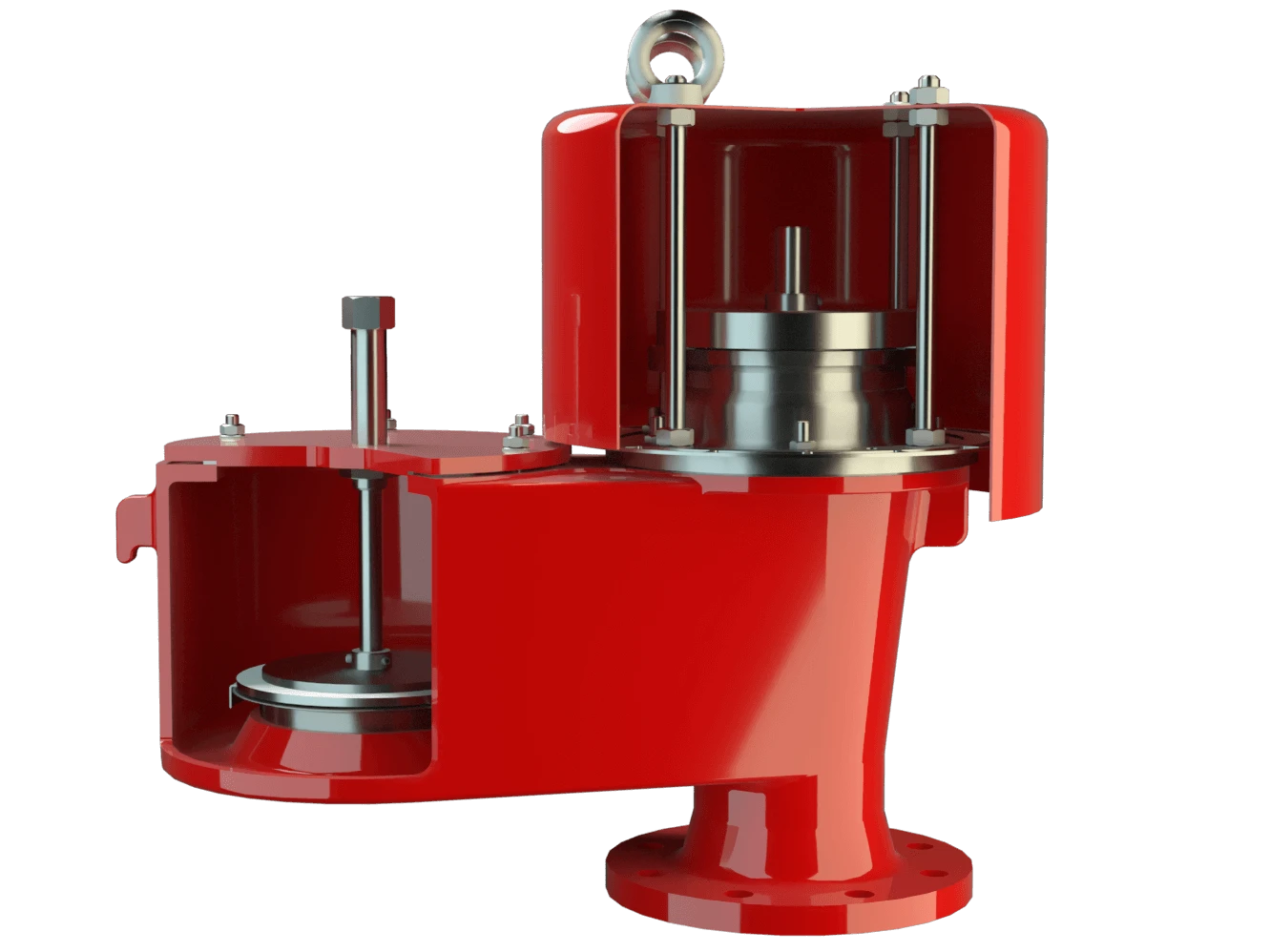

Pressure and Vacuum Relief Valve

VD/SV

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-2 up to -60 mbar

Pressure/Vacuum Relief Valve

VD/SV-AD, VD/SV-ADL

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

-3.5 up to 35 mbar

Vacuum Range:

-2 up to -35 mbar

Pressure/Vacuum Relief Valve

VD/SV-HR

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

3.5 up to 35 mbar

Vacuum Range:

-2 up to -35 mbar

Pressure/Vacuum Relief Valve

VD/SV-HRL

Explosion Group

IIA1
D / IIA

Pressure Range:

3.5 up to 35 mbar

Vacuum Range:

-2 up to -35 mbar

Pressure and Vacuum Relief Valve

VD/SV-PA(L)

Pressure Range:

2 up to 60 mbar

Vacuum Range:

-2 up to -60 mbar

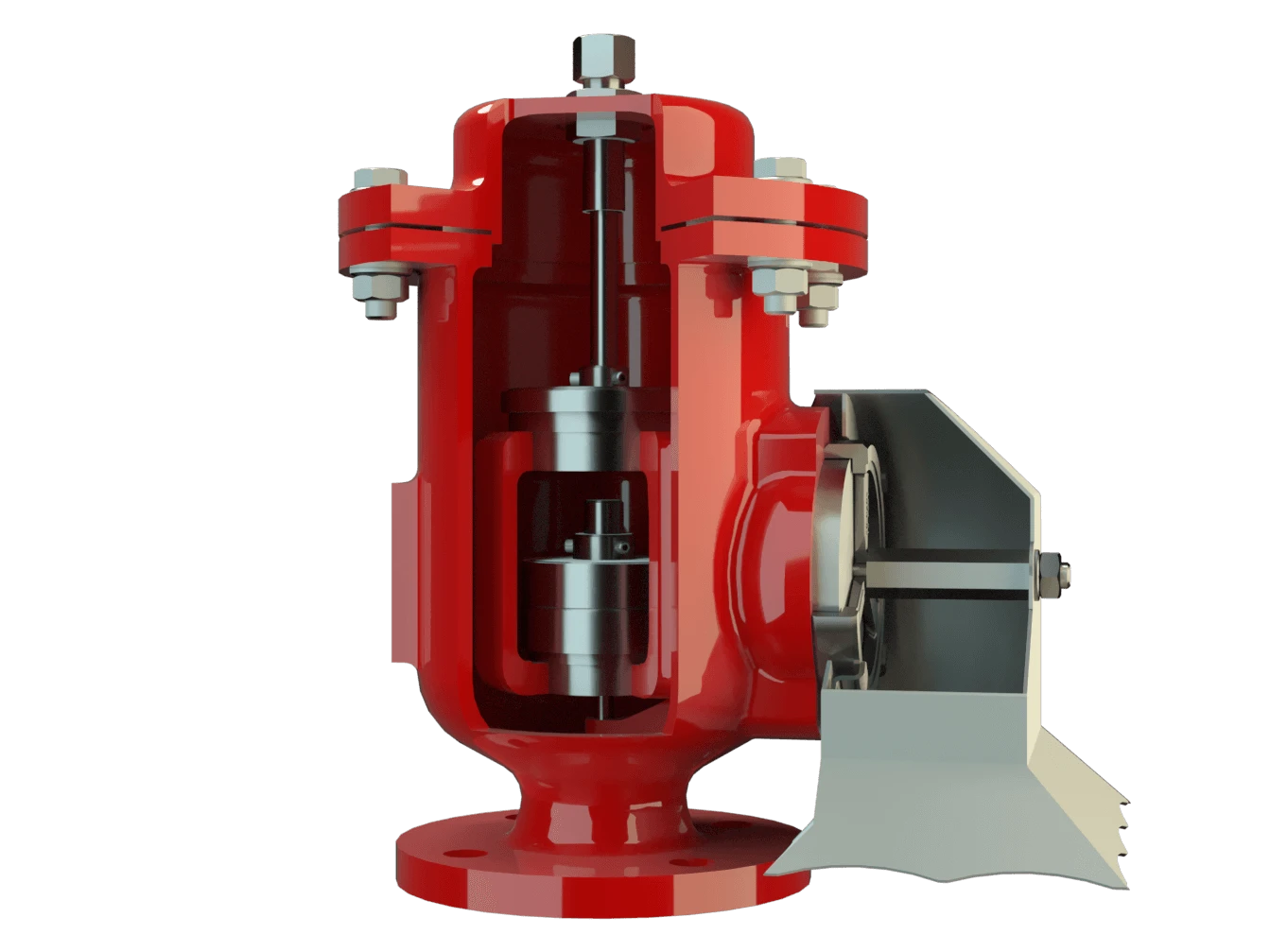

Pressure/Vacuum Relief Valve

VD/TS

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

3.5 up to 50 mbar

Vacuum Range:

-2 up to -25 mbar

Vacuum Relief Valve

VN-VL-L

Vacuum Range:

-2.7 up to -70 mbar

Vacuum Relief Valve

VN-VU

Vacuum Range:

-2.6 up to -25 mbar

Blanketing Valve

ZM-R

Pressure Range:

up to 500 mbar

Vacuum Range:

up to -200 mbar

Points forts des soupapes de reniflard PROTEGO®

Zéro émission grâce aux soupapes de reniflard PROTEGO®

L'étanchéité exceptionnelle des vannes PROTEGO® garantit une émission nulle à la pression de service du réservoir.

Grâce à la technologie de fabrication de pointe des vannes PROTEGO®, la pression de la cuve est maintenue jusqu'à la pression de tarage avec une étanchéité bien supérieure à la norme conventionnelle. Conformément à la norme PROTEGO® PS-001, les taux de fuite sont mesurés à 90 % de la pression de tarage. Ces essais garantissent que les vannes PROTEGO® dépassent les exigences les plus strictes en matière de taux de fuite des normes EPA, API2000 et EN ISO 28300.

Pour atteindre l'objectif de réduction des émissions, les purgeurs à ouverture totale PROTEGO® utilisent la technologie de surpression de 10 %. Cette technologie permet d'obtenir des plages de pression d'ouverture et de fermeture très courtes. Le purgeur n'a besoin que d'une surpression de 10 % au-dessus de la pression de tarage pour atteindre son plein rendement. La pression de la cuve est maintenue juste en dessous de la pression maximale admissible.
Les purgeurs PROTEGO® dotés de la technologie de levée totale à 10 % constituent un atout majeur pour la réduction des émissions et la sécurité de fonctionnement des installations de traitement.

PROTEGO® 10% Technology

The PROTEGO® valves demonstrated outstanding zero-emission performance and helped us achieve the environmental standards required for our site.

Senior Engineer

Exemples d'application des soupapes de purge PROTEGO®

  • Sites chimiques et pharmaceutiques

  • Stockage basse-pression

  •  Stockage d'alcool

  • Stockage réfrigéré et cryogénique

  • Offshore

    Nous proposons des .

    Depuis 1954, PROTEGO® conçoit et fournit des arrêtes-flammes, des soupapes de surpression et de dépression ainsi que des équipements pour réservoirs, et compte aujourd’hui plus de 750 collaborateurs à travers le monde.
