VN-A-PCPF

Pressure/Vacuum Relief Valve,Pilot-operated diaphragm valve

Features

Low Emissions
small amounts of tank substance is released into the atmosphere when the valve is opened
Extreme Tightness
resulting in lowest possible product Product Includes equipment, protective systems, devices, components and combinations of these. losses and reduced environmental pollution
High Durability
protection of the main valve control diaphragm Diaphragm A diaphragm is a thin layer of material, which has a large surface area. from low temperatures – high durability
Flow Capacity
optimized flow capacity
Field Test Kit
field test and kit connection possible upon request
Function and Description

Combined Pressure and Vacuum Relief Valve

Tank pressure controls the pilot valve

The main valve is controlled by a pilot valve which is controlled by the tank pressure Tank pressure Tank pressure is the pressure within a tank. . A small amount of vapor is released into the atmosphere by the pilot valve when the valve opens. The set pressure is adjusted by increasing or decreasing the tension on the spring Spring A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. on the pilot valve.

Extreme thightness

As the pressure increases, the closing force on the main valve increases, i.e., the valve becomes tighter with increasing tank pressure until the set pressure is reached. Once the valve has started to lift, it opens fully within a 10% of the pressure increase or opening pressure difference, and the nominal volume flow is released through a fully open valve. If and when this level is exceeded, the pressure increase will follow the performance curve (Δp/V. curve). From set pressure to full capacity (fully open valve), the pressure increase is 100% in case of vacuum venting/in-breathing function.

advanced manufacturing technology

The tank pressure is maintained up to the set pressure with a tightness that is above the normal standards due to our highly developed manufacturing technology. This feature is ensured by valve seats made of high quality stainless steel with precisely lapped valve discs. After the overpressure is released or the vacuum is balanced, the valve re-seats and provides a tight seal Seal A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. .
Product Data and Features

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), use the flow capacity charts on the folloeing pages

DN1 DN2 abcdefg
50 / 2" 50 / 2" 175 / 6.89 175 / 6.89 170 / 6.69 360 / 14.17 916 / 36.06 205 / 8.07 343 / 13.53
50 / 2" 80 / 3" 175 / 6.89 175 / 6.89 170 / 6.69 360 / 14.17 931 / 36.65 205 / 8.07 358 / 14.09
80 / 3" 80 / 3" 200 / 7.87 200 / 7.87 205 / 8.07 360 / 14.17 957 / 37.68 205 / 8.07 383 / 15.08
80 / 3" 100 / 4" 200 / 7.87 200 / 7.87 205 / 8.07 360 / 14.17 967 / 38.07 205 / 8.07 393 / 15.47
100 / 4" 100 / 4" 225 / 8.86 225 / 8.86 250 / 9.84 360 / 14.17 991 / 39.02 205 / 8.07 418 / 16.46
100 / 4" 150 / 6" 225 / 8.86 225 / 8.86 250 / 9.84 360 / 14.17 1001 / 39.41 205 / 8.07 428 / 16.85
150 / 6" 150 / 6" 300 / 11.81 250 / 9.84 335 / 13.19 500 / 19.69 1104 / 43.46 275 / 10.83 503 / 19.80
150 / 6" 200 / 8" 300 / 11.81 250 / 9.84 335 / 13.19 500 / 19.69 1124 / 44.25 275 / 10.83 523 / 20.59
200 / 8" 200 / 8" 375 / 14.77 300 / 11.81 410 / 16.14 630 / 24.80 1237 / 48.70 340 / 13.39 610 / 24.02
200 / 8" 250 / 10" 375 / 14.77 300 / 11.81 410 / 16.14 630 / 24.80 1267 / 49.88 340 / 13.39 640 / 25.20
250 / 10" 250 / 10" 425 / 16.73 350 / 13.78 500 / 19.69 790 / 31.10 1357 / 53.43 420 / 16.54 710 / 27.96
250 / 10" 300 / 12" 425 / 16.73 350 / 13.78 500 / 19.69 790 / 31.10 1377 / 54.41 420 / 16.54 730 / 28.74
300 / 12" 300 / 12" 500 / 19.69 400 / 15.75 570 / 22.44 920 / 36.22 1468 / 57.80 485 / 19.09 803 / 31.61
300 / 12" 350 / 14" 500 / 19.69 400 / 15.75 570 / 22.44 920 / 36.22 1488 / 58.59 485 / 19.09 823 / 32.40
300 / 12" 400 / 16" 500 / 19.69 400 / 15.75 570 / 22.44 920 / 36.22 1508 / 59.37 485 / 19.09 843 / 33.19

Dimensions in mm / inches

Material selection for housing

DesignA B C
Housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. Aluminium Stainless Steel LTCS* (Low Temperature Carbon Steel)
Valve seat Valve seat The valve seat is a component on which the valve pallet rests when the valve is closed. Stainless Steel Stainless Steel Stainless Steel
Sealing - housing PTFE PTFE PTFE
Sealing – valve disc metal - to - metal metal - to - metal metal - to - metal
Housing diaphragm Stainless Steel Stainless Steel Stainless Steel
Pilot lines Stainless Steel Stainless Steel Stainless Steel
Pilot housing Aluminium Aluminium/ Stainless Steel Aluminium/ Stainless Steel
Pilot diaphragm FEP FEP FEP

* Special materials upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

Other types upon request

Coefficient of Discharge

DN150 / 2"50 / 2"80 / 3"80 / 3"100 / 4"100 / 4"150 / 6"150 / 6"200 / 8"200 / 8"250 / 10"250 / 10"300 / 12"300 / 12"300 / 12"
DN2 50 / 2" 80 / 3" 80 / 3" 100 / 4" 100 / 4" 150 / 6" 150 / 6" 200 / 8" 200 / 8" 250 / 10" 250 / 10" 300 / 12" 300 / 12" 350 / 14" 400 / 16"
d054 / 2.13 54 / 2.13 83 / 3.27 83 / 3.27 108 / 4.25 108 / 4.25 160 / 6.30 160 / 6.30 208 / 8.19 208 / 8.19 262 / 10.31 262 / 10.31 310 / 12.20 310 / 12.20 310 / 12.20
K 0.57 0.83 0.75 0.74 0.69 0.85 0.7 0.8 0.65 0.8 0.62 0.76 0.62 0.72 0.8

DN1 = size inlet
DN2 = size outlet
d0 = orifice diameter(mm / inches)
K =  coefficient of discharge

Additional special devices available upon request.
* It is recommended that an external control line is to be provided with direct connection to the tank.

Druckeinstellungen

Pressure:+20 mbar+1034 mbar
Vacuum:-2.2 mbar-7 mbar
-0.88 inch W.C.-2.8 inch W.C.

Other settings upon request

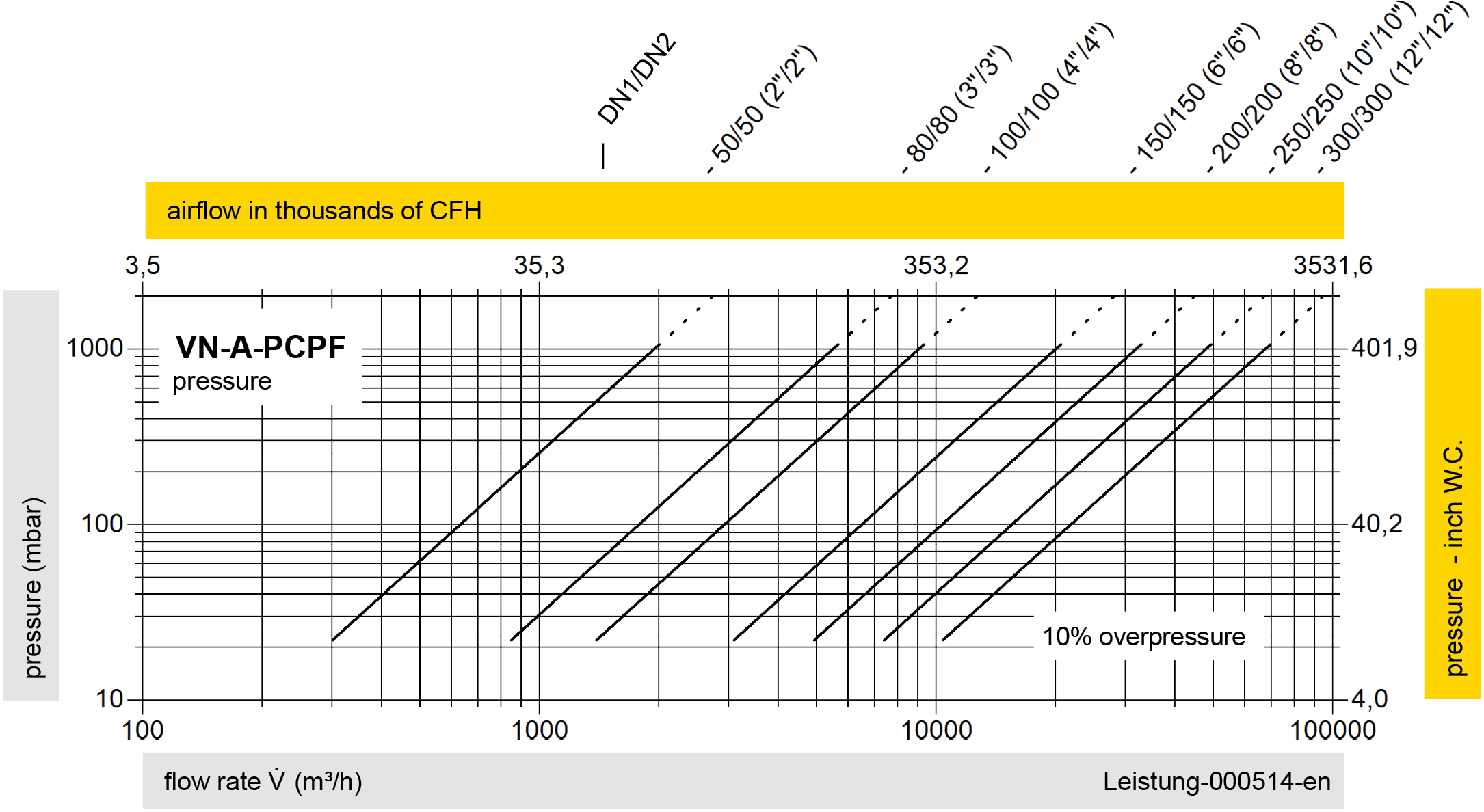

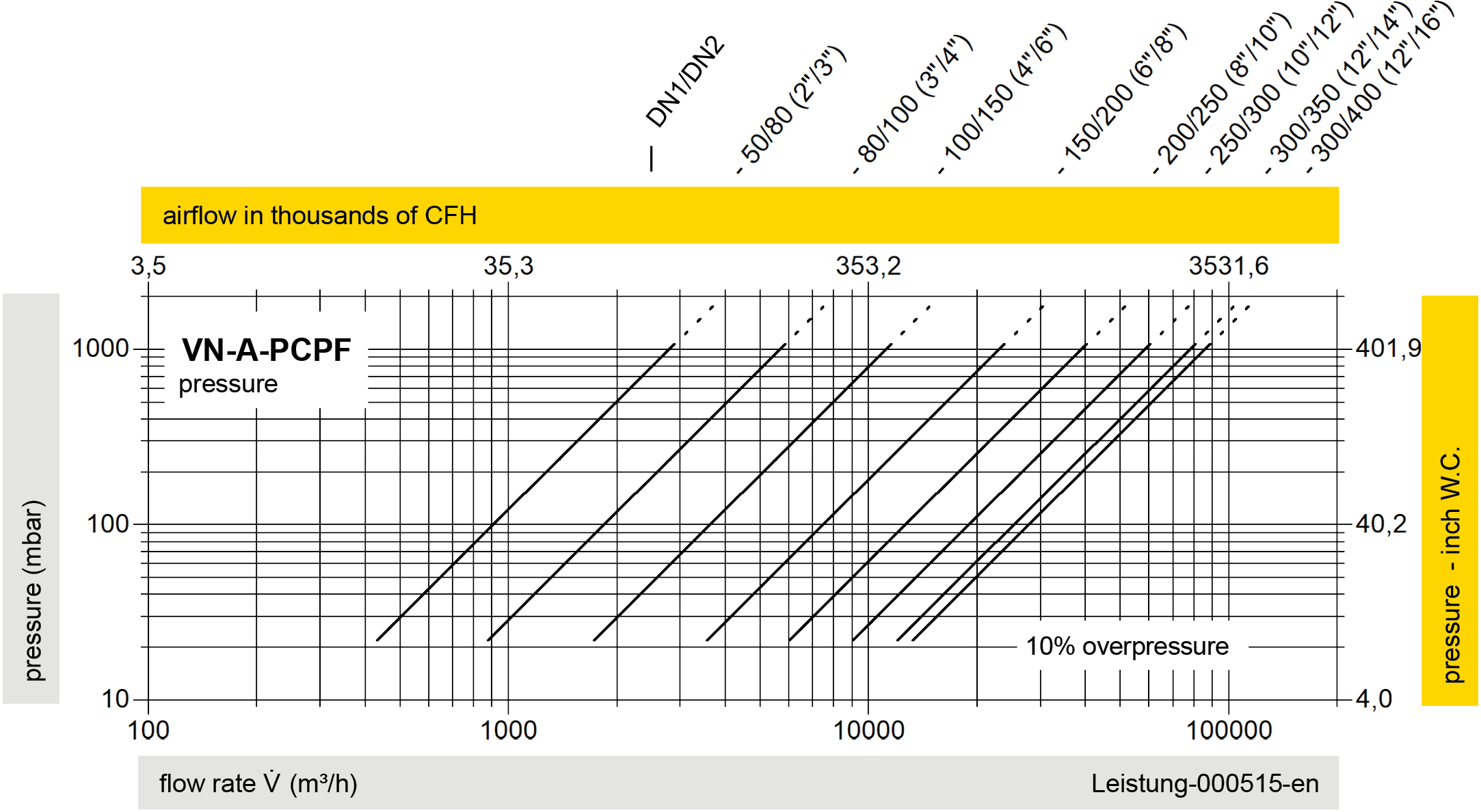

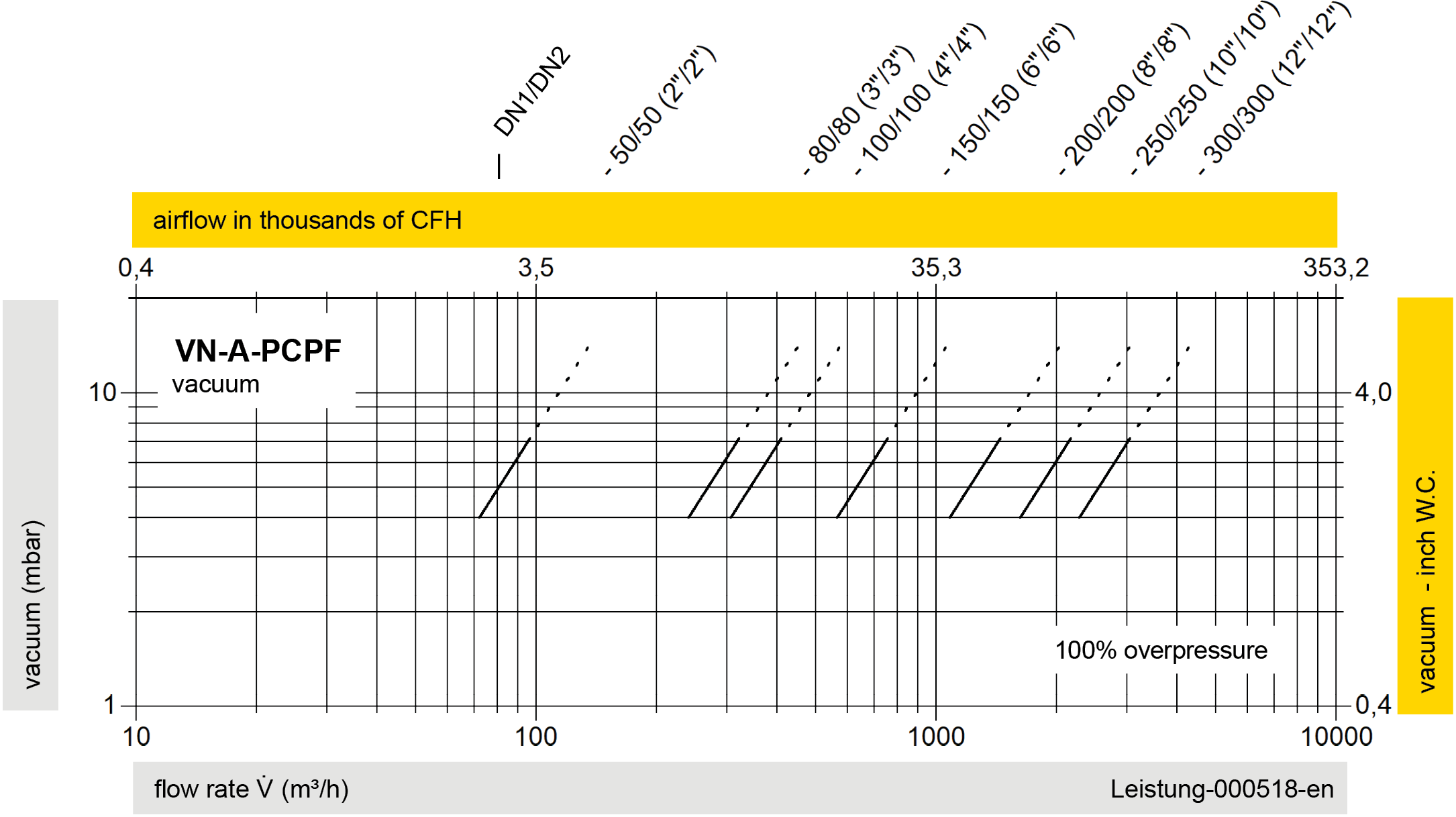

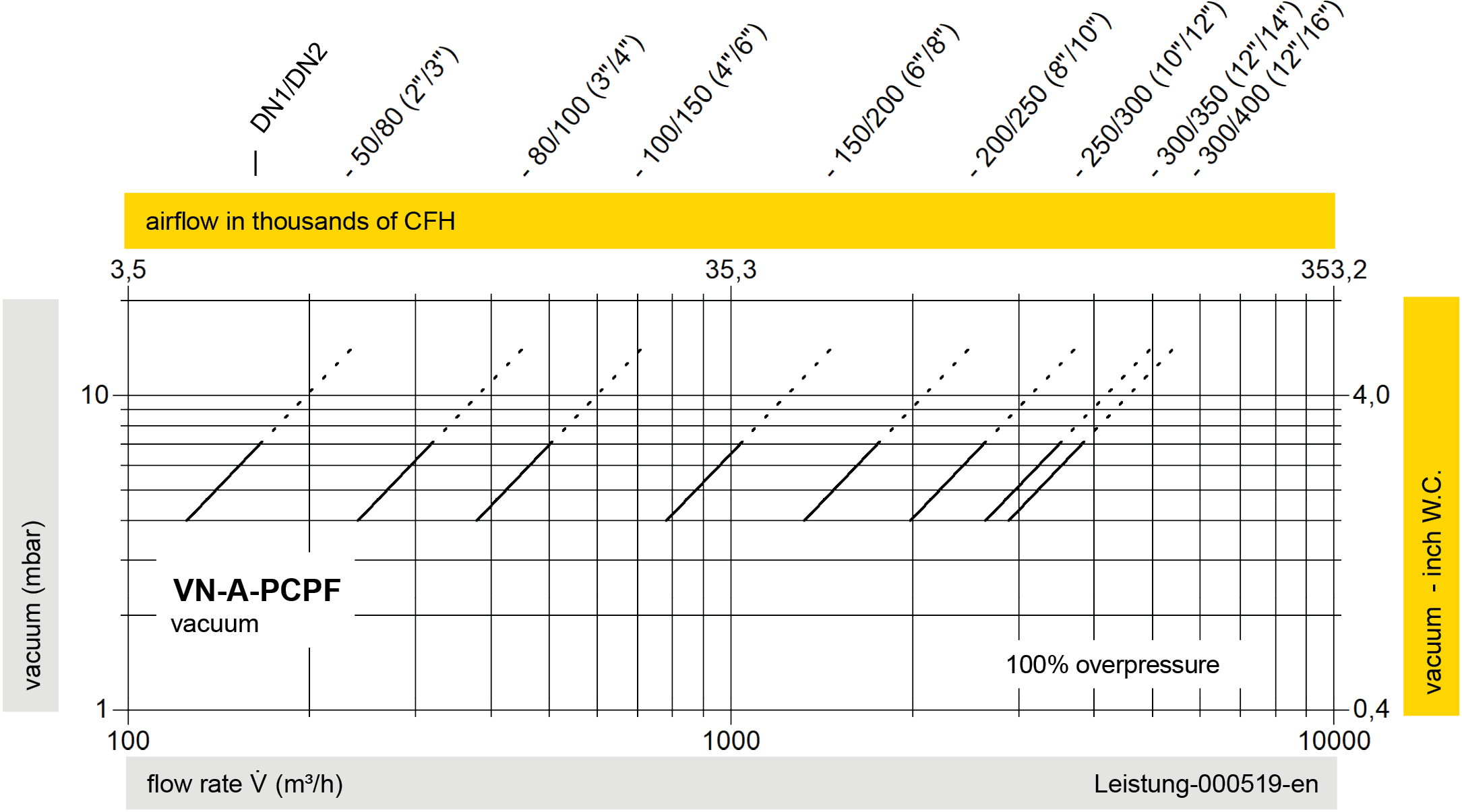

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
