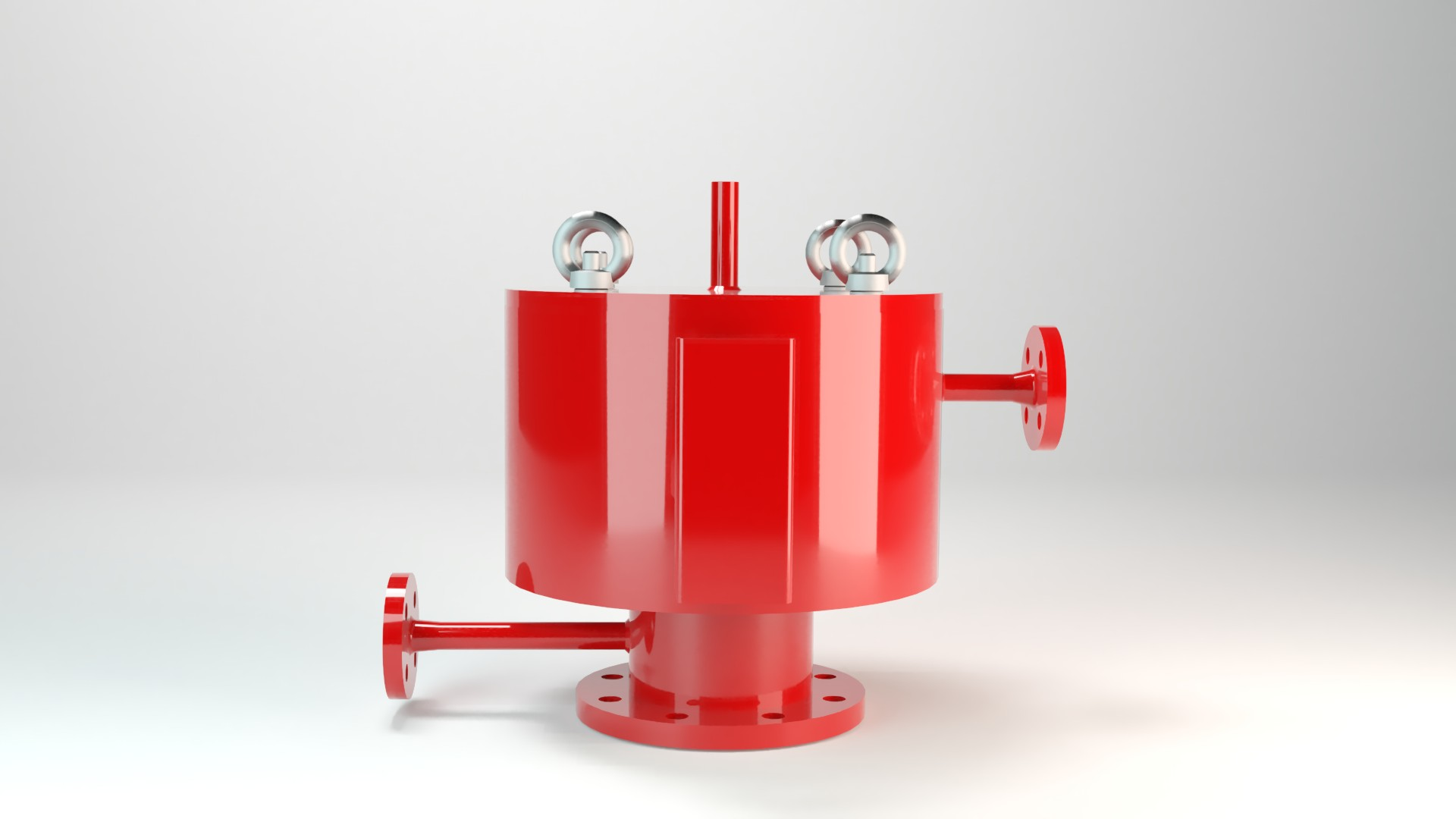

SD/BS-H

Pressure Relief Valve in heat jacketed design

Features

10% Technology
for minimum pressure increase up to full lift
Heating Jackets
complete heating jacket up to the flange to avoid ice build-up
Heating Medium Temperature
maximum allowable heating medium temperature of 320°C / 608°F (at 6 bar / 87 psi)
Heatable Valve Cover Available
available in a special design with a heatable valve cover
Sturdy Housing Design
(PN 10 and PN 16)
Used in Explosion Hazardous Areas
can be used in explosion hazardous areas
Extreme Tightness
resulting in lowest possible product losses and reduced environmental pollution
Optimal Pressure Maintenance
set pressure close to opening pressure for optimum pressure maintenance in the system
Flow Capacity
optimized flow capacity
Guided Valve Pallet
valve pallet is guided inside the housing to protect against harsh weather conditions
Function and Description

Highly Developed Pressure Relief Valve

The SD/BS-H type PROTEGO® valve is a highly developed pressure relief valve Soupape de surpression Valve designed to open and relieve excess pressure and to reclose and prevent the further flow of fluid after normal conditions have been restored. with a heating jacket down to the flange. It is primarily used as pressure relief device Appareil A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. for vessels and process engineering equipment Appareils Machines, appliances, fixed or mobile devices, control parts and accessories, and warning and prevention systems, whether separate or combined, intended for the generation, transfer, storage, measurement, control, and conversion of energy, and for the processing of materials, which have their own potential source of ignition and may cause an explosion. under difficult operating conditions. This includes extreme weather conditions or products that tend to form polymers at certain temperatures, stick together, or form deposits that negatively influence function (such as bitumen, tar, dust). The valve offers reliable protection against overpressure Surpression Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure. and prevents excessive loss of product Produit Includes equipment, protective systems, devices, components and combinations of these. vapors close to the set pressure Pression de réponse Set pressure is the gauge pressure at the device inlet at which the relief device is set to start opening under service conditions. .

Full Lift Technology

The device will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift Course Lift is the actual travel of the valve pallet from the main valve out of the closed position. . Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. With this “full lift type” technology, the valve can be set at just 10% below the maximum allowable working pressure of the tank and still safely vent the required mass flow.

Advanced Manufacturing Technology

Due to our highly developed manufacturing technology, the tank pressure Pression de la cuve Tank pressure is the pressure within a tank. is maintained up to set pressure with a tightness that is far superior to the conventional standard. This feature is achieved by valve seats made of high-grade stainless steel with precisely lapped valve pallets and a sturdy housing Corps A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. design.After the excess pressure is released, the valve re-seats and provides a tight seal Joint A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. again.
Product Data

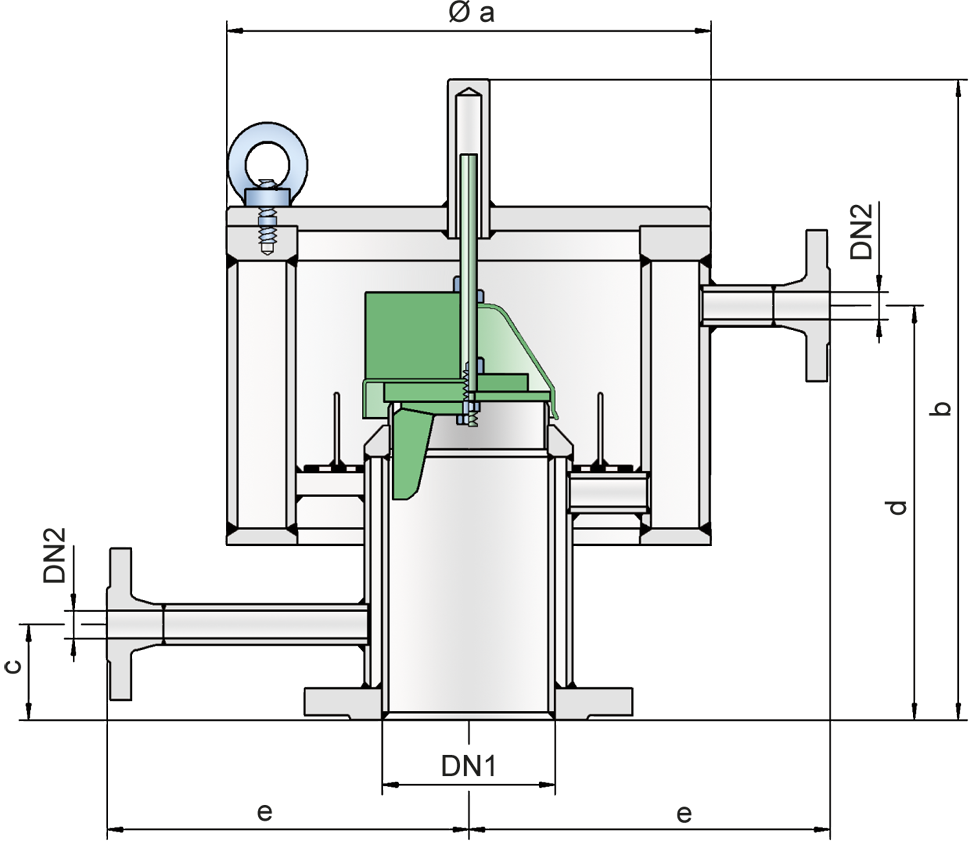

Dimensions

To select the nominal size Diamètre nominal The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), use the flow capacity chart on the following page

DN1DN2ab b c d d e
bis 30 mbar> 30 mbarbis 30 mbar> 30 mbar
80 / 3"15 / ½"325 / 12.80400 / 15.75515 / 20.2870 / 2.76250 / 9.84390 / 15.35250 / 9.84
100 / 4"15 / ½"325 / 12.80400 / 15.75505 / 19.8860 / 2.36250 / 9.84380 / 14.96250 / 9.84
150 / 6"15 / ½"405 / 15.94460 / 18.11595 / 23.4360 / 2.36315 / 12.40470 / 18.50290 / 11.42
200 / 8"15 / ½"510 / 20.08470 / 18.50575 / 22.6465 / 2.56305 / 12.01445 / 17.52340 / 13.39

Dimensions in mm / inches

* also available with special flange DN 50 / 2''

Material selection for housing

Design AB
HousingSteelStainless Steel
Heating JacketSteelStainless Steel
Valve SeatStainless SteelStainless Steel

Special materials upon request

Material selection for pressure valve pallet

Design ABC
Pressure range [mbar]
[inch W.C.]
+5,0 up to +25
+2 up to +10
>+10 up to +30
>+4 up to +12
>+30 up to +210
>+12 up to +84
Valve palletAluminiumStainless SteelStainless Steel
Valve pallet hoodStainless SteelStainless Steel-
SealingMetal to MetalMetal to MetalMetal to Metal

Special materials and devices with higher set pressure or vacuum Dépression Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. are available upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other types upon request

Design Types and Specifications

The valve pallet Clapet Valve pallet is the generic term for the assembly that rests on the valve seat. is weight-loaded. Starting at a set pressure of 30 mbar, a vane guide is also used.
Pressure valve in basic design with heating jacketSD/BS - H

Additional special devices available upon request.

Settings

Pressure:+5.0 mbar+210 mbar
+2.0 inch W.C.+84 inch W.C.

Higher pressure settings upon request.

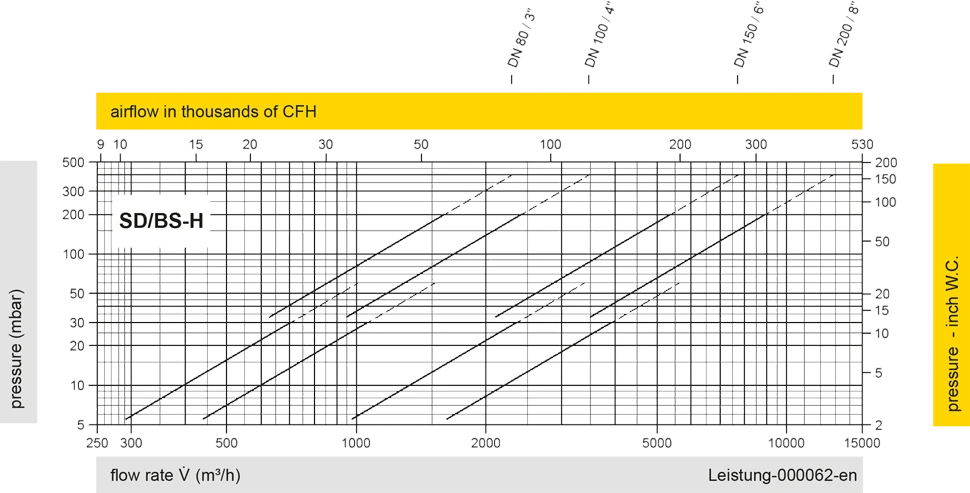

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.

Applications

Landfill and Waste Water Treatment Plants

Fixed Roof Storage Tanks

Methanol Fueled Ships
