PS/K, PS/TK

Name: PS/K, PS/TK
Brand: PROTEGO
SKU: product3288720276912

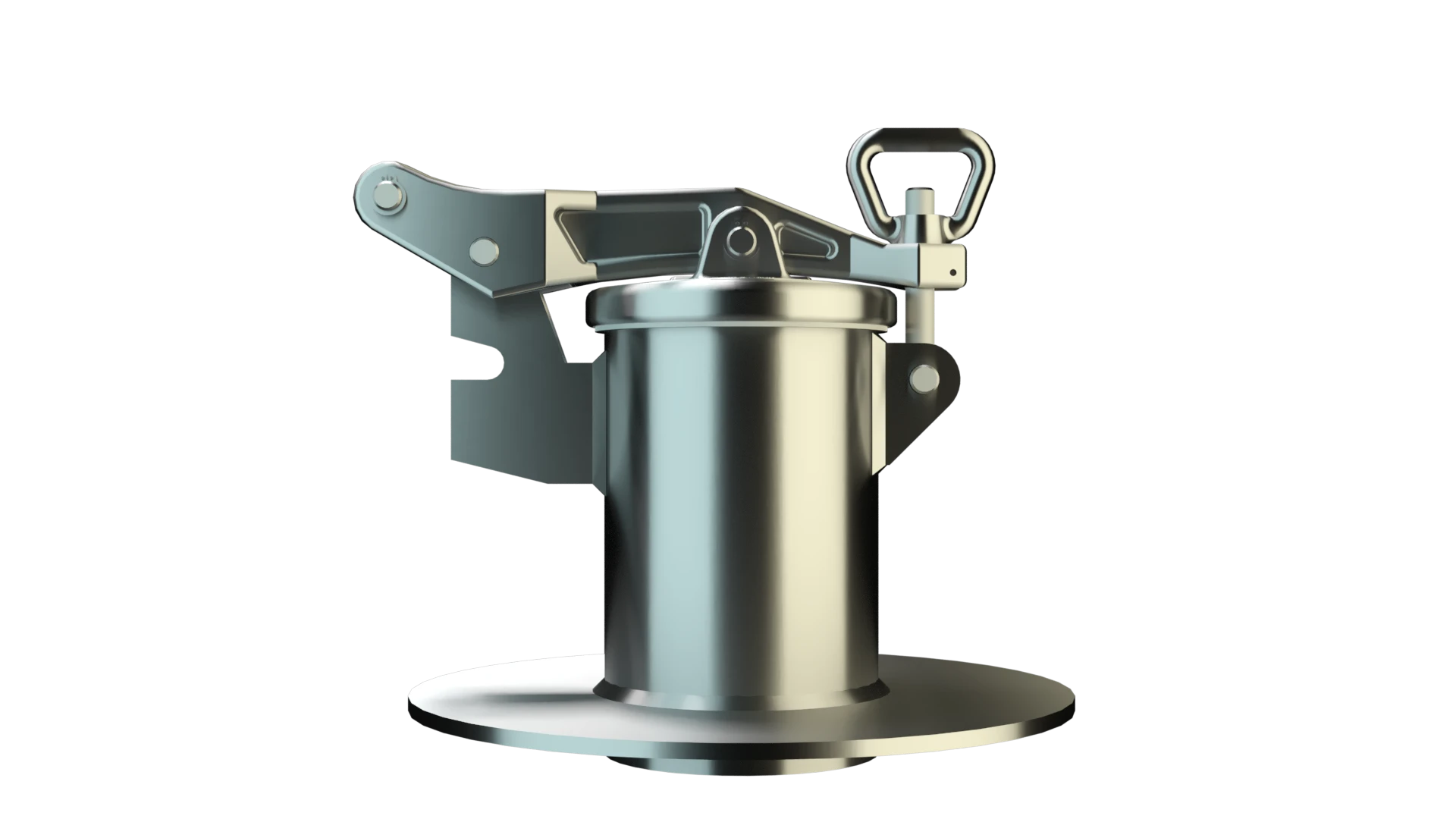

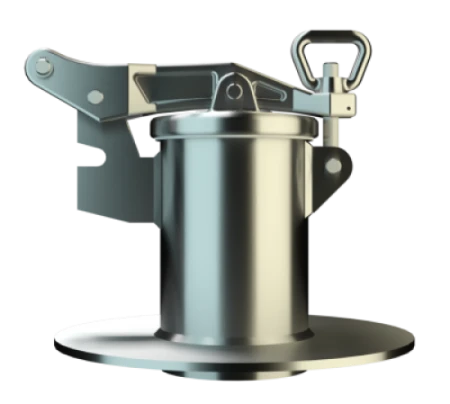

Gauge Hatch with welded nozzle

Request for Quotation Find Contact Person

Features

Lockable Sounding Openings

For lockable sounding openings that are only opened for sounding or sampling

Stainless Steel Sounding Marks

The housings are standardly equipped with stainless steel sounding marks

Foot-Operated Control

In the foot-operated design, the sounding nozzle pedal is connected with the housing and bracket

Function and Description

Lockable Level Gauging and Sampling Nozzles

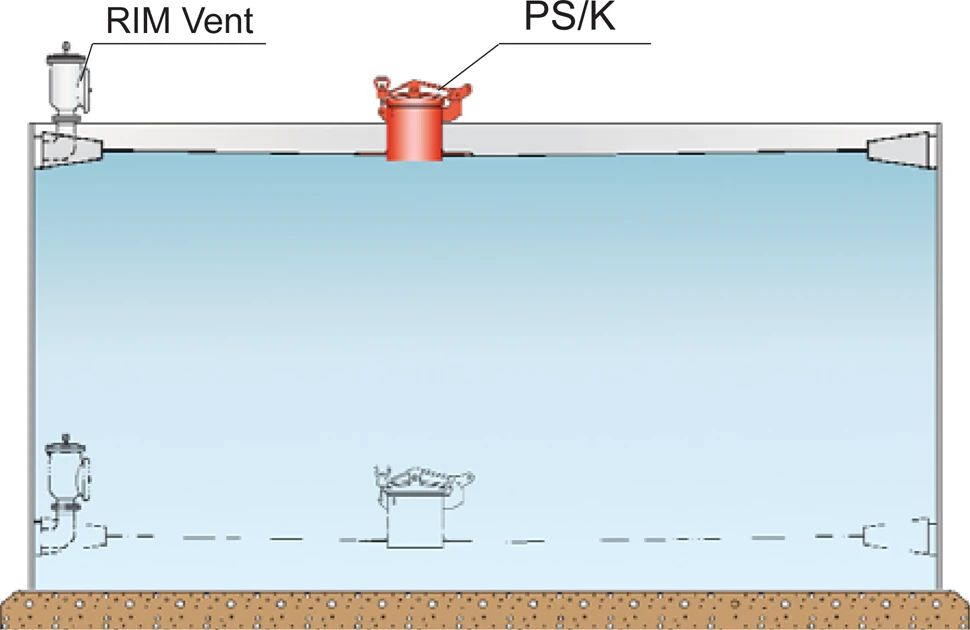

PROTEGO® gauge hatches PS/K and PS/TK are used as lockable gauge nozzles which are only opened for gauging or sampling. The gauge hatches PROTEGO® PS/K and PS/TK mainly consist of , , and . As a standard, the housing has stainless steel gauging marks. In the pedal-operated version PROTEGO® PS/TK, the is connected to both the housing and the bracket.

Product Data

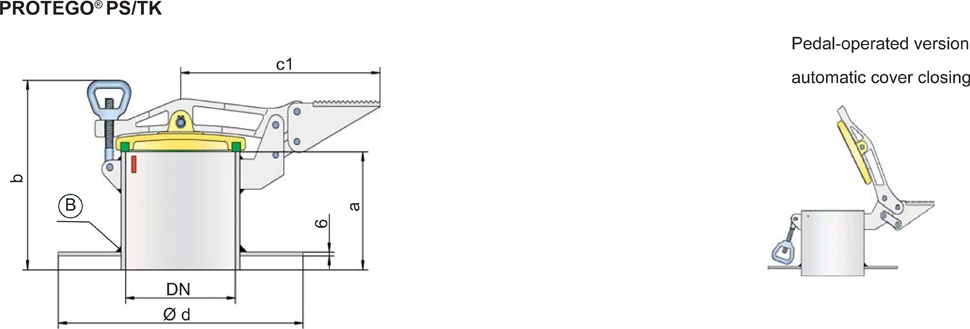

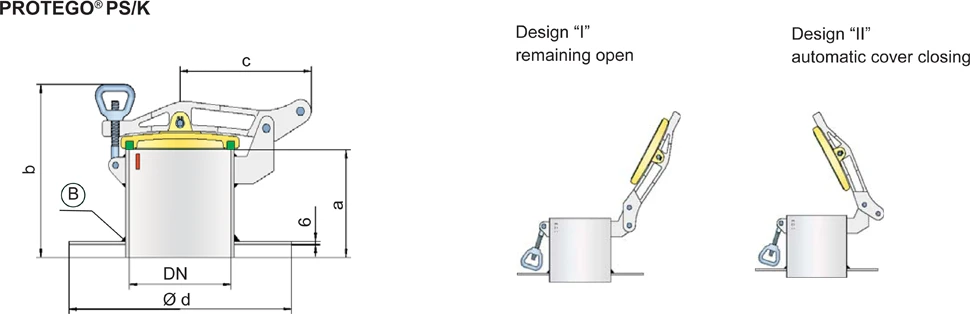

Dimensions

DN	100 / 4''	150 / 6''	200 / 8''
a	175 / 6.89	225 / 8.86	250 / 9.84
b	265 / 10.43	320 / 12.60	355 / 13.98
c	160 / 6.30	205 / 8.07	235 / 9.25
c1	260 / 10.24	305 / 12.01	335 / 13.19
d	275 / 10.83	350 / 13.78	450 / 17.72

Dimensions in mm / inches

The nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. depends on the dimensions of the gauging and sampling device Gauging and sampling device A gauging and sampling device is used for gauging the fluid level of storage tanks as well as for sampling from different levels within the stored medium.

Material selection

Design	A	B
Housing	Steel	Stainless Steel*
Cover	Steel	Stainless Steel*

* only for PS/K

Gauge Hatches can for instance be used in combination with the Manual gauge devices type PROTEGO^® H/P or wih the gauging and sampling device PROTEGO^® VP/HK.
