Horizontal Storage Tanks

Safety Solutions for Storage Tanks

Horizontal storage tanks need consistent protection against pressure changes, vacuum Vacuum Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. formation, vapor movement, and ignition risks during all operations. PROTEGO® Solutions ensure safe, controlled operation by addressing these risks in a coordinated system, integrating into early engineering concepts and supporting long-term use.

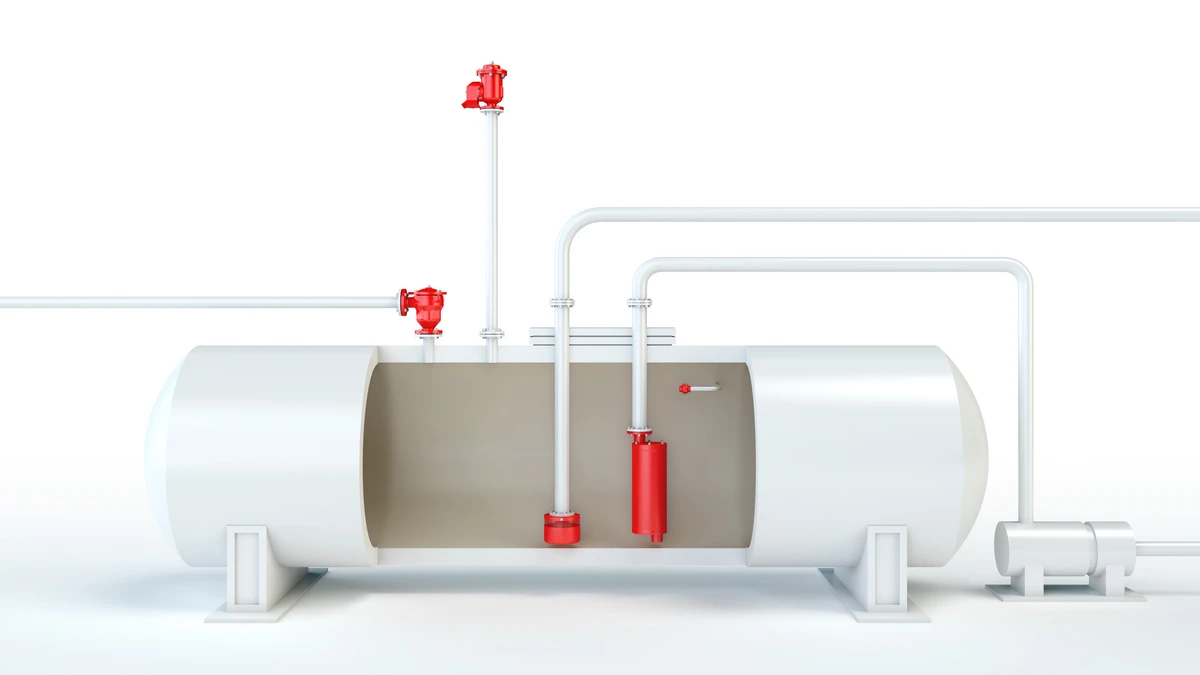

Horizontal storage tank equipped with PROTEGO® devices for industrial applications.

Highlights

Operational and Process Risks
Horizontal storage tanks face multiple challenges including pressure fluctuations, vapor flow, and ignition sources.
Comprehensive Risk Management
PROTEGO® designs coordinated strategies to manage risks across the tank system effectively.
Pressure and Vacuum Relief Solutions
ensure safe handling of pressure and vacuum fluctuations during operations.
Explosion Prevention
Integrated approaches focus on preventing explosions in both vapor and liquid pathways, enhancing overall safety.

Products for Horizontal Storage Tanks

Pressure/Vacuum Relief Valve

PV/EBR

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure Range:

-3.5 up to -50 mbar

Vacuum Range:

2 up to 210 mbar

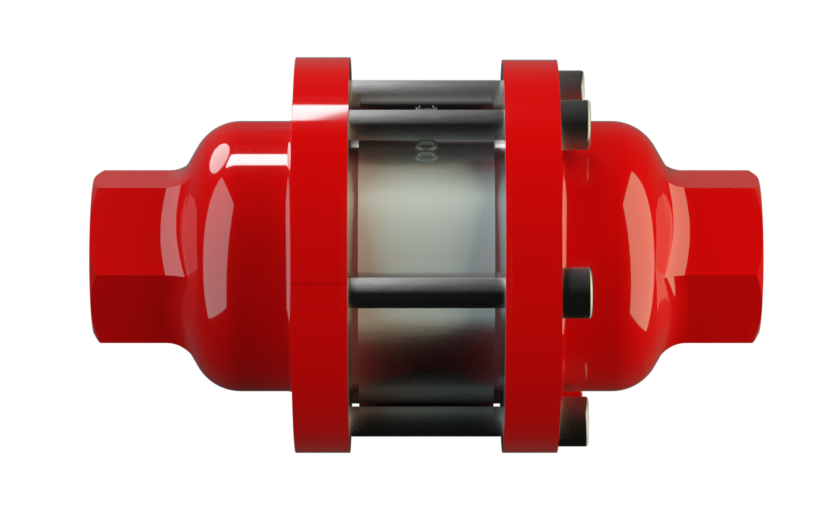

In-Line Detonation Flame Arrester

DA-G

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3
B / IIB
B / IIC

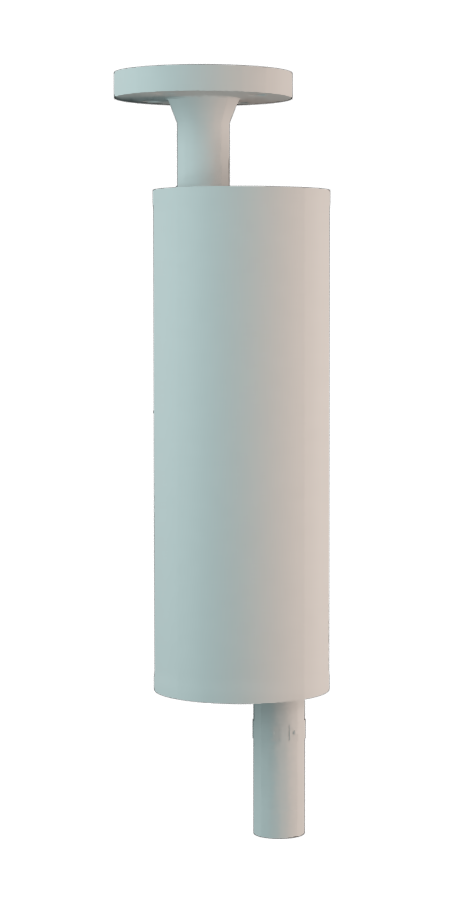

Liquid Detonation Flame Arrester

LDA

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

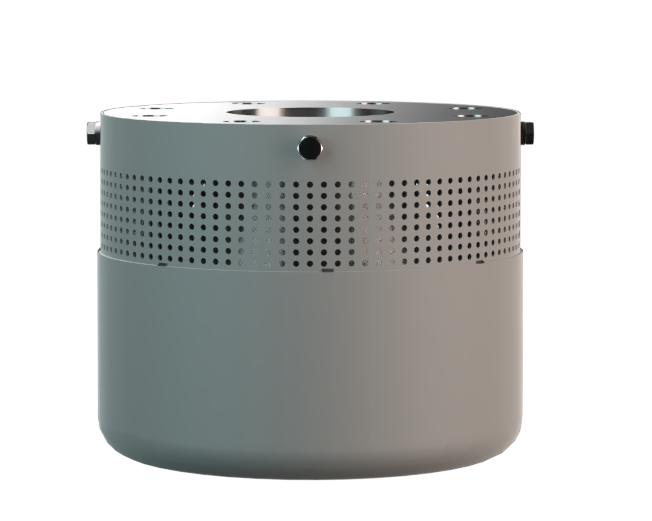

Detonation Flame Arrester,

EF/V-IIB3

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Safety Strategies for Underground Storage Tanks

Underground storage tanks introduce distinct operational challenges. Filling, draining, and venting activities occur in confined environments where vapor accumulation Accumulation Pressure increase over the MAWP of the vessel allowed during discharge through the pressure-relief device. and limited accessibility increase the importance of reliable protection at clearly defined points.

Horizontal storage tanks equipped with PROTEGO® devices for industrial applications and safety enhancement.

Highlights

Operational Challenges in Confined Spaces
Underground tanks face unique challenges like vapor accumulation and limited accessibility.
Targeted Safety Measures
PROTEGO® offers specialized components for safe pressure relief and controlled venting.
Explosion Prevention
Solutions include measures to prevent explosions in vapor and liquid pathways, ensuring better safety.
Simplified Maintenance
Structured protection strategies aid safer daily operations and simplify inspection and maintenance Maintenance Combination of all technical and administrative actions, including supervision actions, intended to maintain or restore a unit in working order. tasks.

Products for Horizontal Storage Tanks

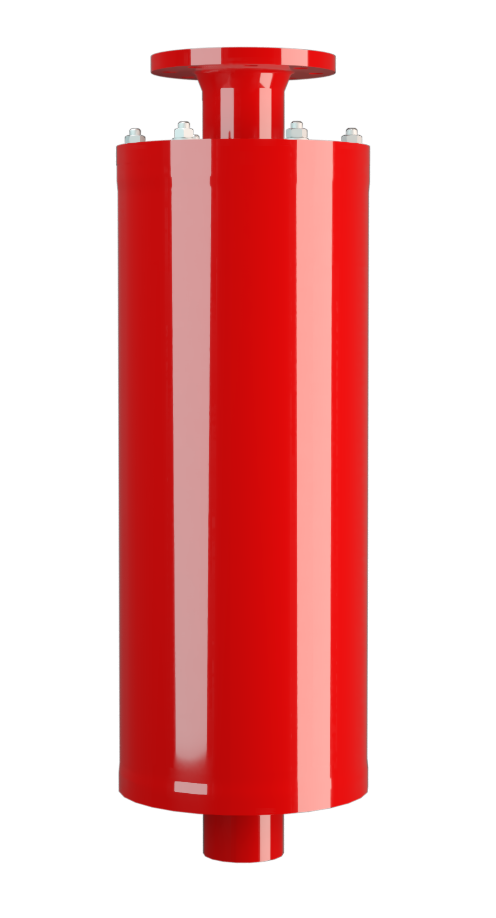

Liquid Detonation Flame Arrester

LDA-F

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

Pressure and Vacuum Relief Valve

VD/SV

Pressure Range:

-2 up to -60 mbar

Vacuum Range:

2 up to 60 mbar

In-Line Detonation Flame Arrester

DR/ES

Explosion Group

IIA1
D / IIA
C / IIB1
C / IIB2
C / IIB3

The PROTEGO® devices are working to our utmost satisfaction. PROTEGO® - who, with their technical expertise, supported in reducing the overall life cycle cost of the Detonation Flame Arresters installed at our plant by installing flame arresters, which are easy to clean and maintenance-friendly.

Maintenance and Reliability Engineer

DOW UCAR Emulsion Systems Jebel Ali FZE Plant
