PROTEGO®

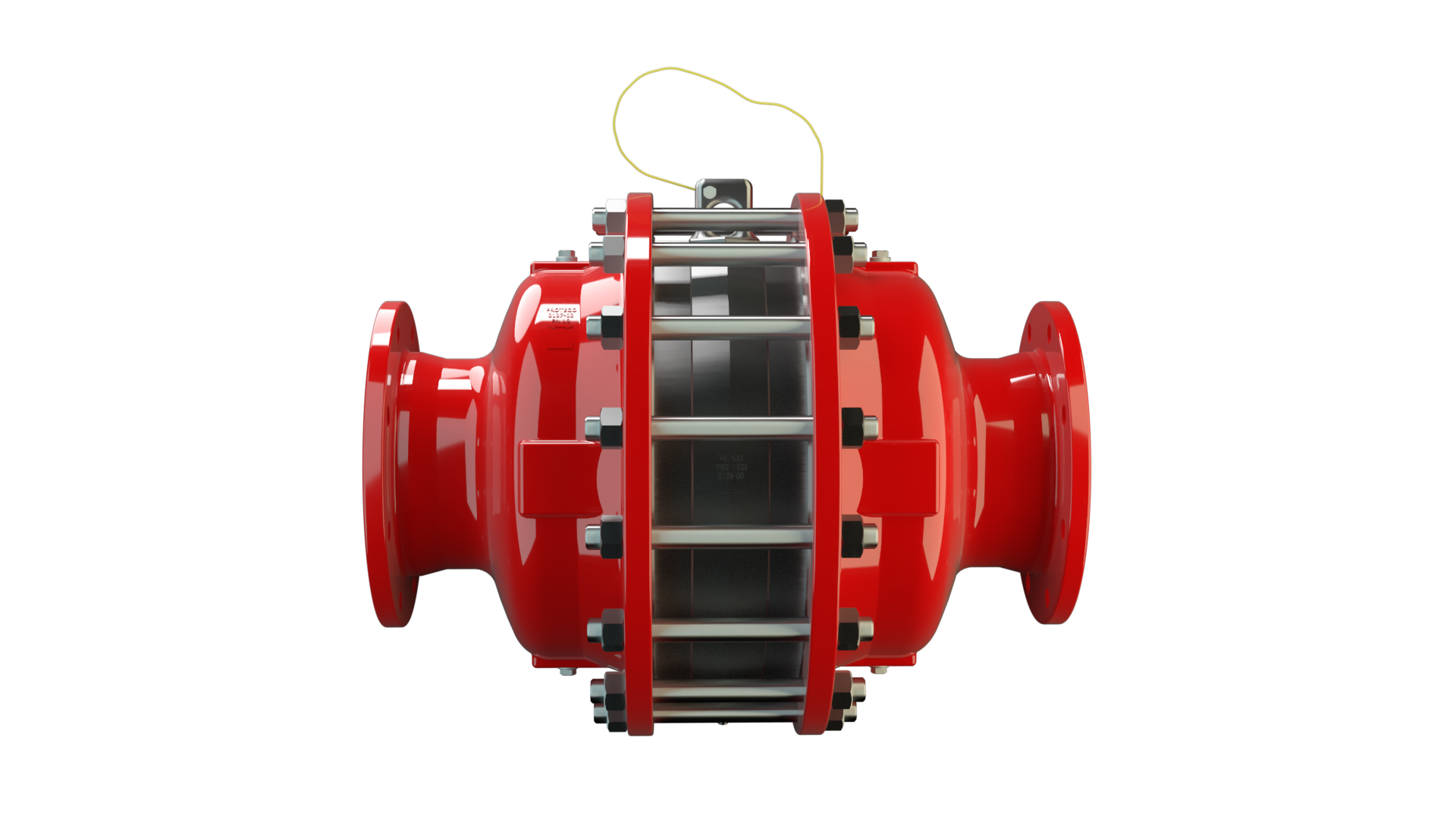

Detonation Flame Arresters
Purpose and Application
Detonation Detonation Explosion propagating at supersonic velocity and characterized by a shock wave (EN 1127-1: 1997). Flame Arresters Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. are designed to prevent flame propagation in piping systems where combustion can transition into high-energy detonations. Unlike deflagrations, detonations involve supersonic flame speeds and significant pressure waves, requiring equipment Equipment Machines, appliances, fixed or mobile devices, control parts and accessories, and warning and prevention systems, whether separate or combined, intended for the generation, transfer, storage, measurement, control, and conversion of energy, and for the processing of materials, which have their own potential source of ignition and may cause an explosion. that can withstand and safely dissipate these extreme conditions. In industrial systems handling flammable gases or vapors, Detonation Arresters are typically installed within pipework to protect upstream equipment, storage tanks, and process units.
Highlights of PROTEGO® Detonation Flame Arresters
Zero flashback incidents
Higher uptime & lower losses
Lifecycle confidence
Compliance made simpler
Lorem Ipsum Working principle of Flame Arresters
The FLAMEFILTER® is made of wound metal strips and forms an effective band arrester. This flame- quenching Quenching Cooling of a fluid by mixing it with another fluid of a lower temperature. principle is applied in PROTEGO® end-of-line Flame Arresters and in-line Flame Arresters.
When a mixture ignites in a gap, the flame spreads towards the unburned mixture. The volume expansion of the burned mixture pre-compresses the unburned mixture and accelerates the flame propagation.
Heat dissipation to the large surface of the gap lowers the temperature below the ignition temperature Ignition temperature Lowest temperature (of a hot surface) at which ignition of a flammable gas or vapor in a mixture with air or air/inert gas occurs under specified test conditions. , thus extinguishing the flame.
The gap width and gap length determine the extinguishing effectiveness of the Flame Arrester.
A narrower and longer gap extinguishes the flame more effectively, while a wider and shorter gap reduces the pressure loss. Experiments can determine the optimum solution between the two conditions.
The PROTEGO® devices are working to our utmost satisfaction. PROTEGO®—who, with their technical expertise, supported in reducing the overall life cycle cost of the Detonation Flame Arresters installed at our plant by installing flame arresters Flame Arresters A flame arrester, deflagration arrester, or flame trap is a device or form of construction that will allow free passage of a gas or gaseous mixture but will interrupt or prevent the passage of flame. , which are easy to clean and maintenance-friendly.
Application Examples for PROTEGO® Detonation Flame Arresters
Traitement par vapeur
Stockage en réservoirs
Réservoirs de stockage d'alcool
We provide engineered safety solutions.
Since 1954, PROTEGO® has built and provided Flame Arresters, Pressure and Vacuum Vacuum Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. Relief Valves and Tank Equipment, now with the help of more than 750 employees worldwide.
