PR/0

Gauging and Sampling Pipe, verifiable

Request for QuotationFind Contact Person

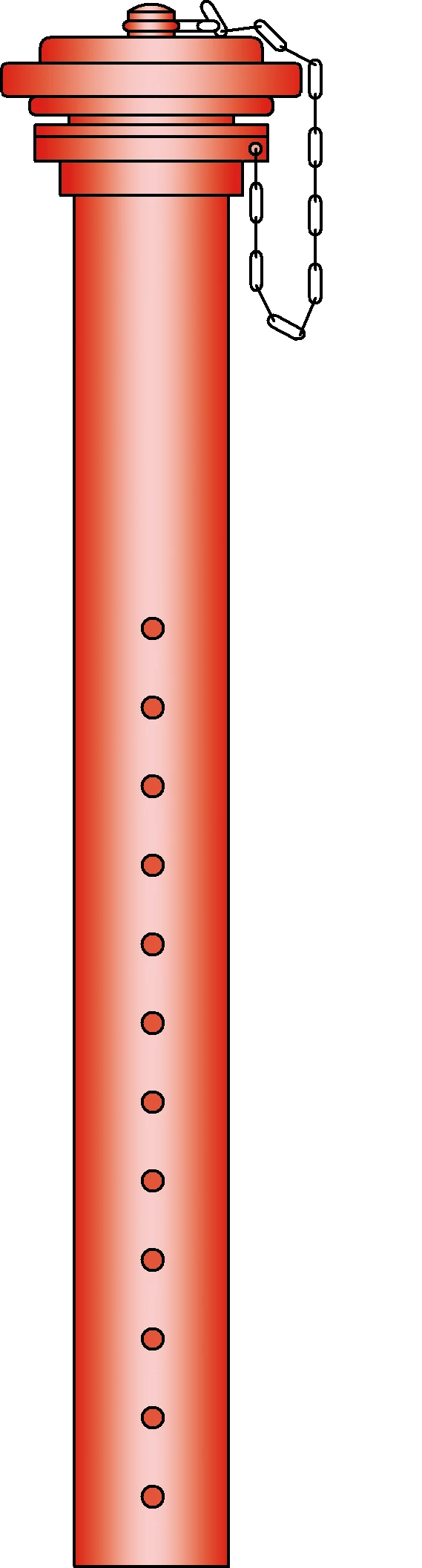

Features

Horizontal or Vertical Tanks
Usable for tank content sounding in horizontal or vertical tanks
No Flame Transmission Proof
The PR/0 is not flame transmission proof
Connection with other Components
Often used in conjunction with other components such as PROTEGO® VP/HK, PS/E, or PG/H
Function and Description

For Tank Content Gauging

The gauging and sampling pipes type PROTEGO® PR/0 are used for gauging of tank contents in horizontal or vertical tanks. They can be used in combination with other devices as for instance PROTEGO® VP/HK, PROTEGO® PS/E as well as PROTEGO® PG/H.

Level Gauging and Sampling Pipes for Tank Safety

The gauging and sampling pipes PROTEGO® PR/0 consist of the gauging and sampling pipe Gauging and sampling pipe A gauging and sampling tube consists of a hanging pipe and an attachment pipe, as well as a sleeve for welding into the cap of the tank nozzle. (1), the cap (2) with gasket and the gauge plate Gauge plate A gauge plate is used in combination with a gauging and sampling tube. (3). In normal operation the gauging pipe Gauging pipe The gauging pipe is a measuring pipe for liquids. is closed with the cap. It is opened only for tank content gauging. PROTEGO® PR/0 is not flame transmission proof and therefore special safety measures have to be implemented in order to avoid flame transmission into the tank caused by external ignition sources.
Product Data

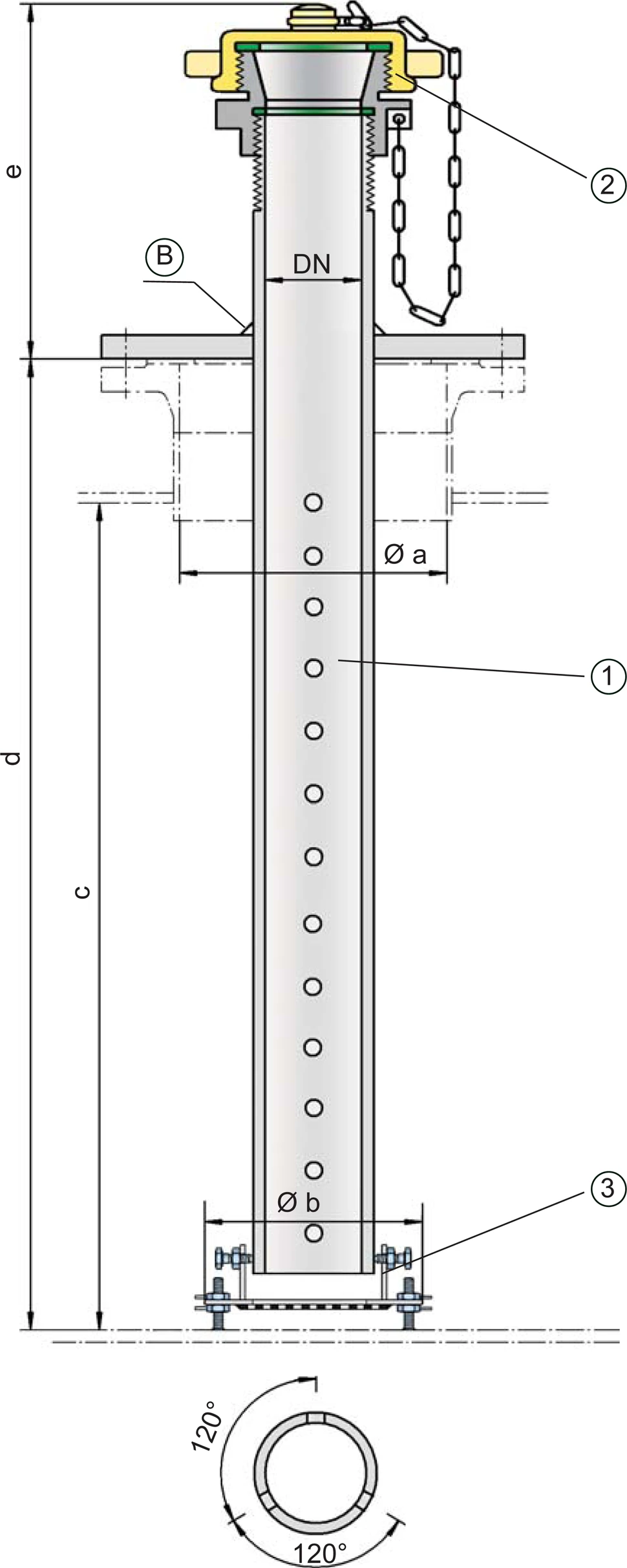

Dimensions

DNDNabnumber of hole lines
251"32-1
321¼"40-1
502"80-2
803"1003053
1004“150 / 5.913053

Dimensions in mm / inches

The measures c, d, e, f must be given with the order

Material selection

DesignAB
Gauging pipeSteelStainless Steel
Gauge plateSteelStainless Steel
CapBrassStainless Steel

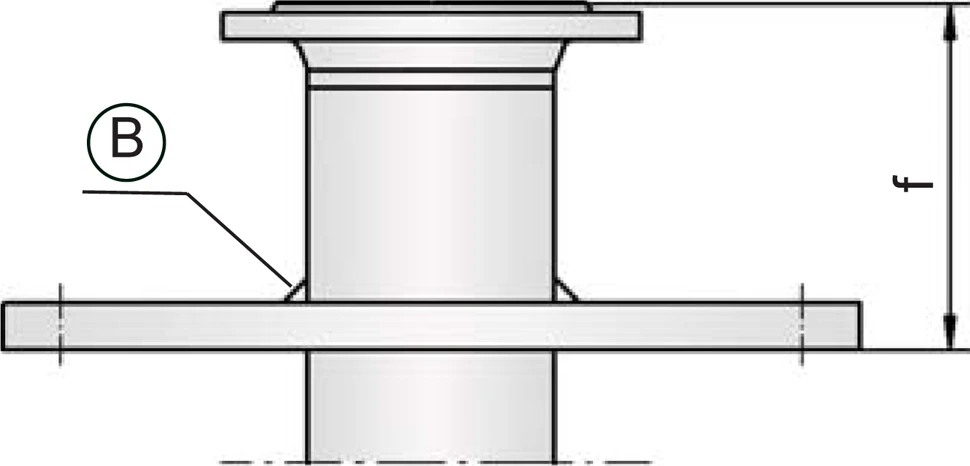

For combination with other gauging device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. design 1 with welding neck flange is available (from DN 100/4''). Instead of the gauging table PROTEGO® PT/S a perforated bottom can be Chosen alternatively.

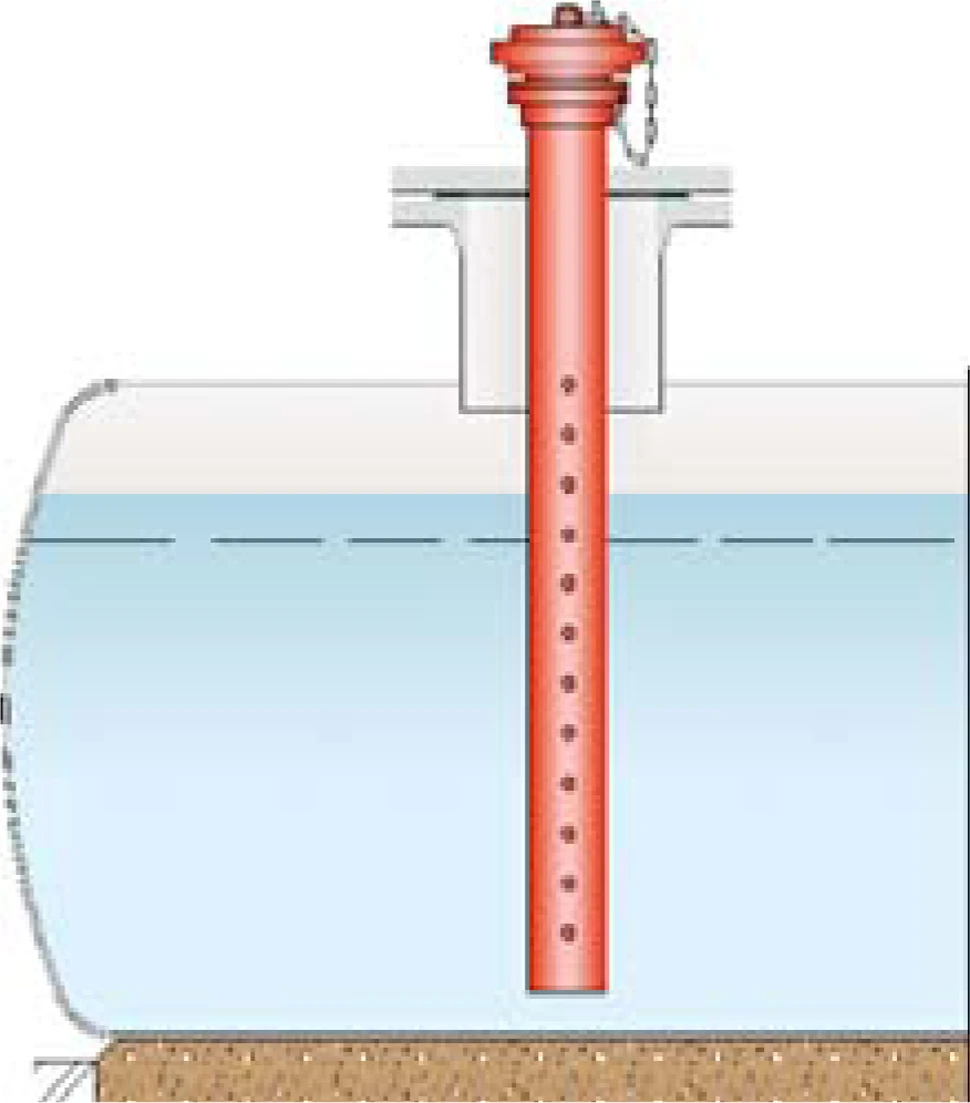

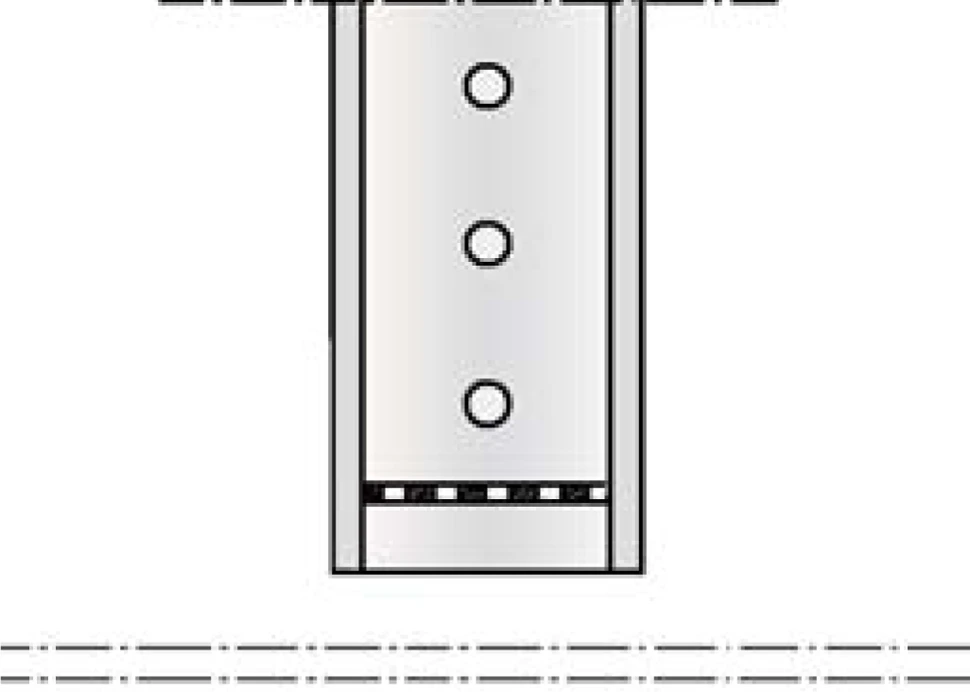

Gauging and Sampling Pipe PROTEGO® PR/0 with perforated bottom for the horizontal tank.

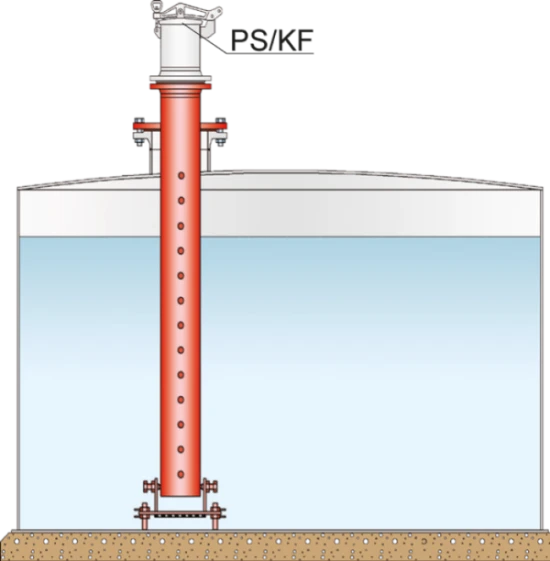

Gauging and Sampling PIpe PROTEGO® PR/0 with gauging table PROTEGO® PS/KF for a vertical tank. Also sampling with a suitable Sampling Pot PROTEGO® PG/H is possible. Information about gauging and sampling device Gauging and sampling device A gauging and sampling device is used for gauging the fluid level of storage tanks as well as for sampling from different levels within the stored medium. are available in a seperate catalogue sheet.
