R/KSM

Pressure or Vacuum Relief Valve, In-Line

Features

10% Technology
for Minimum Pressure Increase up to Full Lift
Extreme Tightness
Resulting in Lowest Possible Product Losses and Reduced Environmental Pollution
Optimum Pressure Maintenance
Based on 10% Technology, Set Pressure Is Close to Opening Pressure for Optimum Pressure Maintenance in the System as Compared to Conventional 40% or 100% Technology
For Over- and Underpressure
can Be Used as Pressure or Vacuum Relief Valve
Compact Design
Eases Installation Close to Floors and Walls
High Flow Capacity
Reduces Costs Through the Use of Smaller Valves
Non-Corrosive
Weight Reduction
in Comparison to Steel/Stainless Steel
Different Plastics
can Easily Be Combined
Function and Description

Pressure or Vacuum Relief Valve in Corner Design Made of Plastic

Full Lift Technology

The device Bastidor A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift Carrera Lift is the actual travel of the valve pallet from the main valve out of the closed position. . Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. This “Full Lift Type” technology allows the valve to be set at just 10% below the maximum allowable working pressure or vacuum Vacío Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. (MAWP or MAWV) of the tank and still safely vent the required mass flow. The opening characteristic for pressure and vacuum side is the same.

Advanced Manufacturing Technology

Due to our highly developed manufacturing technology, the tank pressure Presión del tanque Tank pressure is the pressure within a tank. is maintained up to the set pressure with a tightness that is far above to the conventional standard. This feature is ensured by special valve seats made of high quality synthetic material or PTFE. After the overpressure is released or the vacuum is balanced, the valve re-seats and provides a tight seal Sello A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. . The optimized fluid dynamic design of the valve body and valve pallet Disco de la válvula Valve pallet is the generic term for the assembly that rests on the valve seat. is a result of many years of research, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Product Data

Dimensions

To select the nominal size Diámetro nominal The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity chart on the following page

DN50 / 2" 80 / 3" 100 / 4" 150 / 6" 200 / 8"
a200 / 7.87245 / 9.65300 / 11.81370 / 14.57625 / 24.61 (650 / 25.59)*
b376 / 14.80521 / 20.51563 / 22.17 (523 / 20.59)*687 / 27.05 (651 / 25.63)*914 / 35.98 (912 / 35.91)*
c150 / 5.91200 / 7.87225 / 8.86280 / 11.02350 / 13.78
d180 / 7.09250 / 9.84300 / 11.81350 / 13.78 (405 / 15.94)*560 / 22.05 (500 / 19.68)*

Dimensions in mm / inches

* Dimensions in brackets only for PVDF

Material selection for housing

DesignABC
HousingPEPPPVDF
Valve seatPEPPPVDF
GasketFPMFPMFPM
Valve palletA, C, DB, C, DC, D

Special materials upon request

Material selection for valve pallet

Design A B C D
Pressure range [mbar]
[inch W.C.]
±6,0 up to ±16
±2.4 up to ±6.4
±5,5 up to ±16
±2.2 up to ±6.4
±9,5 up to ±30
±3.8 up to ±12
±30 up to ±100
±12 up to ±40
Valve palletPEPPPVDFHastelloy
SealingPTFEPTFEPTFEPTFE
Spindle guidePEPPPVDFHastelloy

Special materials and devices with higher set pressure or vacuum are available upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 F.F.

other connections upon request

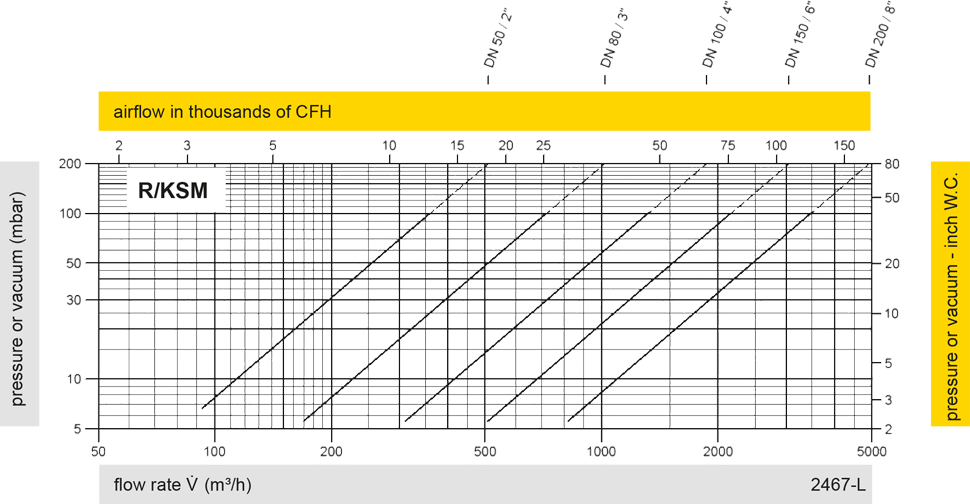

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.

Tank connection for pressure relief function

Tank connection for vacuum relief function

Applications

Tank Storage

Chemical and Pharmaceutical Processing Facilities

Renewable Energy

Vapor Treatment
