Pressure Relief Valvedeflagration- and endurance burning-proof

Features

Extreme Tightness
resulting in lowest possible product Product Includes equipment, protective systems, devices, components and combinations of these. losses and reduced environmental pollution
Safety Against Endurance Burning
Protection against Atmospheric Deflagration and Endurance Burning
Flow Capacity
optimized flow capacity
Function and Description

Pressure Relief Valve with Integrated PROTEGO® Flame Arrester

The deflagration Deflagration Explosion propagating at subsonic velocity (EN 1127-1:1997). -proof and endurance burning Endurance burning Stabilized burning for an unlimited time. -proof BE/HR-D type PROTEGO® valve is a highly developed pressure relief valve Pressure-relief valve Valve designed to open and relieve excess pressure and to reclose and prevent the further flow of fluid after normal conditions have been restored. with an integrated flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. . It is primarily used as a device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. for flame transmission proof outbreathing on tanks, containers and process engineering apparatus. The valve offers reliable protection against excess pressure and prevents product losses almost up to the set pressure Set pressure Set pressure is the gauge pressure at the device inlet at which the relief device is set to start opening under service conditions. ; it also protects against atmospheric deflagration as well as endurance burning if stabilized burning Stabilized burning Steady burning of a flame stabilized at, or close to the flame arrester element. occurs. The PROTEGO® flame arrester unit is designed to achieve minimum pressure drop with maximum safety. The BE/HR-D valve is available for substances of explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group IIA (NEC group D MESG > 0.9 mm).

Advanced manufacturing technology

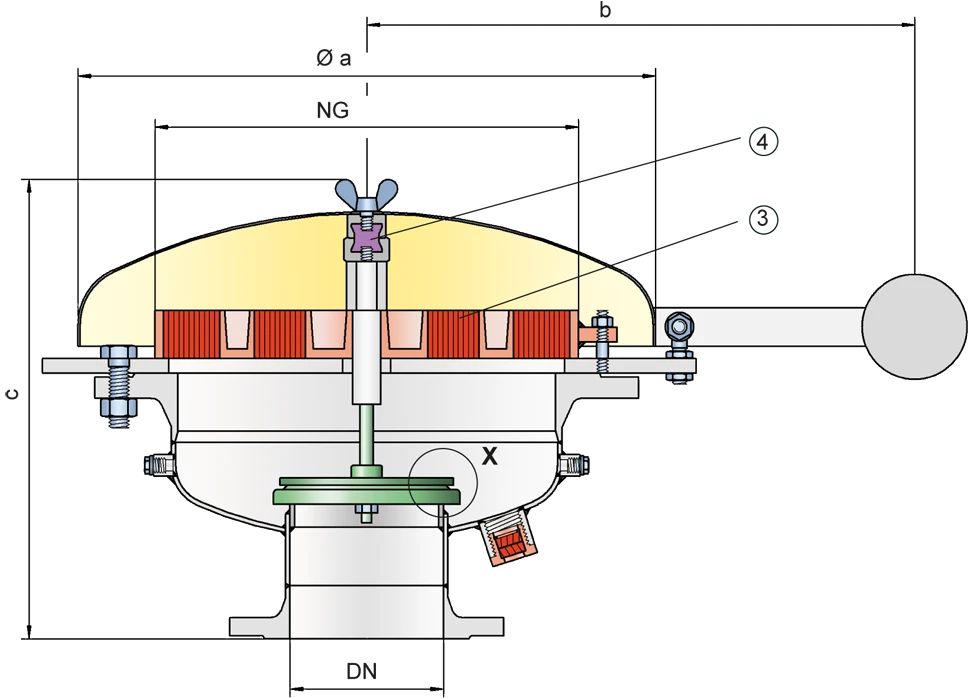

When the set pressure is reached, the valve starts to open and reaches full lift Lift Lift is the actual travel of the valve pallet from the main valve out of the closed position. within 40% overpressure Overpressure Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure. . The tank pressure Tank pressure Tank pressure is the pressure within a tank. is maintained up to the set pressure with a tightness that is far superior to the conventional standard due to our state of the art manufacturing technology. This feature is ensured by the valve seats made of high quality stainless steel and with individually lapped valve pallets (1) or with an air cushion seal Seal A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. (2) in conjunction with high quality FEP diaphragm Diaphragm A diaphragm is a thin layer of material, which has a large surface area. . After the excess pressure is discharged, the valve reseats and provides a tight seal.

Many Individual Certifications

If the set pressure is exceeded, explosive gas/product-vapour air mixtures are released to the atmosphere. If this mixture ignites, the integrated PROTEGO® flame arrester unit (3) prevents flame transmission into the tank. If additional mixture continues to flow and stabilized burning occurs, the integrated flame arrester unit prevents flashback Flashback Phenomenon occurring in a flammable mixture of air and gas when the local velocity of the combustible mixture becomes less than the flame velocity, causing the flame to travel back to the point of mixture. as a result from endurance burning. The valve is protected and also fulfils its function under this severe service conditions. The spring Spring A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. loaded weather hood Weather hood A weather hood is a cover to protect the internal components of a device from environmental influences. opens as soon as the fusible element (4) melts. The valve can be used up to an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of +60°C / 140°F and meets the requirements of European tank design standard EN 14015 – Appendix L and ISO 28300 (API 2000). EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Data and Features

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity chart on the following page

DN150 / 6" 200 / 8"
NG400 / 16"400 / 16"
a600 / 23.62600 / 23.62
b545 / 21.46545 / 21.46
c485 / 19.09485 / 19.09NG = Nominal size

Dimensions in mm / inches

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
> 0,90 mmIIAD

Special approvals upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other types upon request

Design Types and Specifications

The valve disc is weight-loaded.
Pressure relief valve, basic designBE/HR-D-400/...

Additional special devices available upon request

Settings

Pressure:+2.0 mbar+35 mbar
+0.8 inch W.C.+14 inch W.C.

Higher pressure settings upon request.

Material selection for housing

DesignAB
HousingSteelStainless Steel
Valve seat Valve seat The valve seat is a component on which the valve pallet rests when the valve is closed. Stainless SteelStainless Steel
Weather HoodSteelStainless Steel
Flame arrester unitAB

Special materials upon request

Material combinations of flame arrester unit

Design  AB
FLAMEFILTER® cageSteelStainless Steel
FLAMEFILTER®Stainless SteelStainless Steel

Special materials upon request

Material selection for valve pallet

Design ABC
Pressure range [mbar]
[inch W.C.]
+2.0 up to +3.5
+0.8 up to +1.4
>+3.5 up to +14
>+1.4 up to +5.6
>+14 up to +35
>+5.6 up to +14
Valve palletAluminiumStainless SteelStainless Steel
SealingFEPFEPMetal to Metal

Special materials and higher pressure settings upon request

Flow Capacity Chart

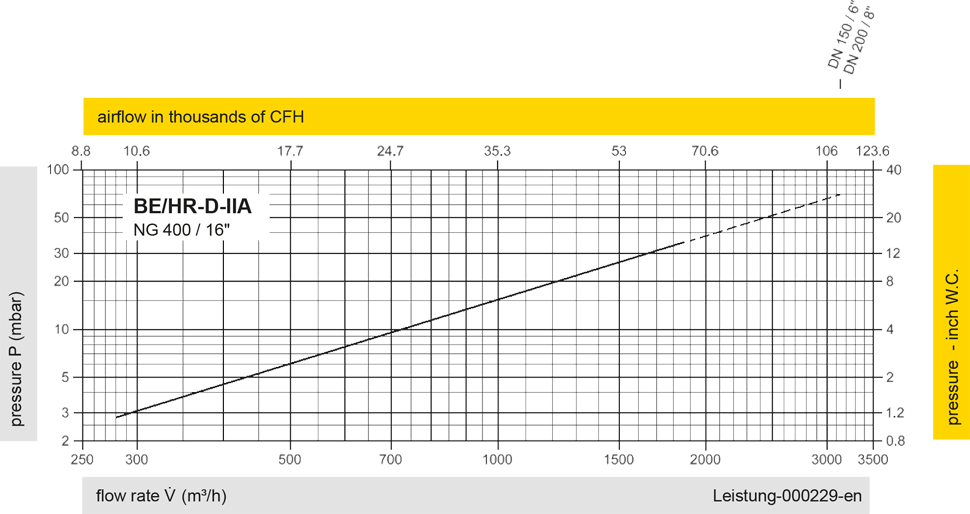

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.

Detail X

Detail X
