Deflagration Flame Arrester, endurance burning proof, End-of-Line

Features

Comprehensive Weather Protection
Weather Hood With Protection Screen Protects the PROTEGO® Flame Arrester Unit Against Environmental Impact, Such as Nesting Animals and Weather Conditions
Visible Fire Indication by Tilting Weather Hood
in Case of Fire, the Weather Hood Opens, Allowing the Flame to Be Seen From a Far Distance
Chemically Resistant
Centrally Aligned Melting Element Is Resistant to Chemicals
Endurance Burn Safety
for Alcohols and Hydrocarbons up to Explosion Group IIB
Safety Against Endurance Burning
Protection against Atmospheric Deflagration and Endurance Burning
Spare Parts
Cost-Effective Spare Parts
Modular Design
Allows Replacement and Cleaning of Single FLAMEFILTER®
Function and Description

Protection Against Atmospheric Deflagration and Endurance Burning

The Pressure/vacuum relief valve Pressure/vacuum relief valve is an umbrella term that includes pressure or vacuum relief valve as well as pressure and vacuum relief valve. PROTEGO® BE/HR-E End-of-Line Deflagration Flame Arrester Deflagration flame arrester Flame arrester designed to prevent the transmission of a deflagration. It can be an end-of-line flame arrester or an in-line flame arrester. was specifically developed for vessels which are not pressurized and store Ethanol or other alcohols with a MESG ≥ 0,85 mm. The combustion of alcohol requires a modified Flame Arrester Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. Element design to provide protection against endurance burning Endurance burning Stabilized burning for an unlimited time. . In addition, the device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. provides protection against atmospheric deflagration Deflagration Explosion propagating at subsonic velocity (EN 1127-1:1997). . It is typically installed on in-breathing and out-breathing vent lines to prevent flame transmission into the vessel Vessel Container or structural envelope in which materials are processed, treated or stored. or plant caused by endurance burning or atmospheric deflagration.

Main Component – PROTEGO® Flame Arrester Unit

For Explosion Group IIB1

The PROTEGO® BE/HR-E End-of-Line Deflagration Flame Arrester is available for alcohols and other substances with a MESG ≥ 0,85 mm. The standard design can be used for operating temperatures up to +60°C / 140°F. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Data

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN80 / 3"100 / 4"
a353 / 13.90353 / 13.90
b250 / 9.84250 / 9.84

Dimensions in mm / inches

Dimensions for Deflagration flame arrester with heating jacket upon request

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
≥ 0,85 mmIIB1

Special approvals upon request

Material selection for housing

Design BC
HousingSteelStainless Steel
Weather HoodSteelStainless Steel
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. AA, B

Special materials upon request

Material combinations of flame arrester unit

DesignAB
FLAMEFILTER® cageStainless SteelStainless Steel
FLAMEFILTER®Stainless SteelHastelloy
Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® se Stainless SteelHatelloy

Special materials upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

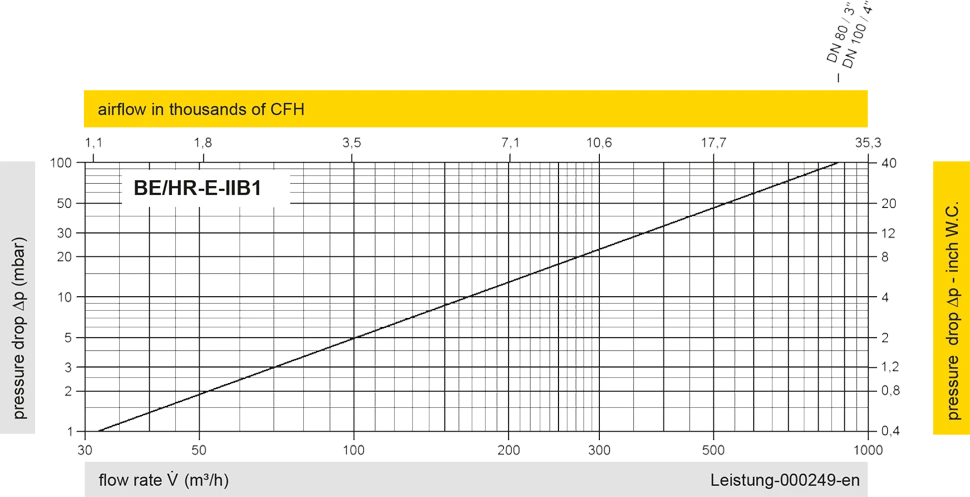

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
