DA-SB-EO-P1,1

In-Line Detonation Flame Arrester for stable detonations and deflagrations in a straight through design with shock tube, bidirectional

Features

Ethylene Oxide/Air-Mixtures
Worldwide First Flame Arresting Unit for Ethylene Oxide, Which Has Been Tested and Approved With Ethylene Oxide/Air Mixtures
Optimized Performance
Due to the Patented Shock Wave Guide Tube Effect (SWGTE)
Use of Patented Shock Wave Guide Tube Effect (SWGTE)
Low Number of FLAMEFILTER® Discs Due to the Patented Shock Wave Guide Tube Effect (SWGTE)
Modular Design
Allows Replacement and Cleaning of Single FLAMEFILTER®
Low Costs
Low Operating and Lifecycle Costs
Spare Parts
Cost-Effective Spare Parts
Easy Maintenance
Without Disassembling of the FLAMEFILTER®
Bi-Directional Flame Transmission
Proof Design
Function and Description

Main Component – PROTEGO® Flame Arrester Unit

The devices are symmetrical and offer bi-directional flame arresting for deflagrations and stable detonations for Ethylene oxide/air-mixtures. The arrester essentially consists of two housing Carcasa A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. parts with an integrated shock tube (1) and the PROTEGO® Flame Arrester Unit (2) in the center. The PROTEGO® Flame Arrester Unit is modular and consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. .

Many Individual Certifications

Product Data

Dimensions

To select nominal width/ nominal size Diámetro nominal The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (NG/DN) - combination, please use the flow capacity charts on the following pages

NG 150 / 6“ 150 / 6“ 200 / 8“ 300 / 12“ 400 / 16“
DN ≤50 / 2" 65, 80 / 2½", 3" ≤100 / 4" ≤150 / 6" ≤200 / 8"
a 285 / 11.22 285 / 11.22 340 / 13.39 445 / 17.52 565 / 22.24
b 400 / 15.75 400 / 15.75 500 / 19.69 638 / 25.12 700 / 27.56
c 500 / 19.69 500 / 19.69 520 / 20.47 570 / 22.44 620 / 24.41

Dimensions in mm / inches

Selection of explosion group

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
≥ 0,59 mm EO EO

Special approvals upon request

Selection of max. operating pressure

DN≤50 / 2" 65, 80 / 2½", 3"≤100 / 4"≤150 / 6"≤200 / 8"
NG 150 / 6'' 150 / 6'' 200 / 8'' 300 / 12'' 400 / 16''
Pmax 1,1 / 15.9 1,1 / 15.9 1,1 / 15.9 1,1 / 15.9 1,1 / 15.9

Pmax = maximum allowable operating pressure in bar / psi absolut

in-between size up to Pmax upon request
*capacity charts upon request

Specification of max. operating temperature

≤ 60°C / 140°FTmaximum allowable operating temperature in °C

higher operating temperatures upon request

Material selection for housing

DesignABC
Housing Steel Stainless Steel Hastelloy
Heating jacket (DA-SB-(T)-H-...EO) Steel Stainless Steel Stainless Steel
Gasket PTFE PTFE PTFE
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. A, B B, C, D D

The housing is also available in carbon steel with an ECTFE coating Revestimiento Coating is the application of a firmly adhering layer of shapeless material to the surface of a workpiece. .

Special materials upon request

Material combinations of flame arrester unit

Design ABCD
FLAMEFILTER® cageSteelStainless SteelStainless SteelHastelloy
FLAMEFILTER®*Stainless SteelStainless SteelHastelloyHastelloy
SpacerStainless SteelStainless SteelHastelloyHastelloy

*the FLAMEFILTER® are also avail- able in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used.

Special materials upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

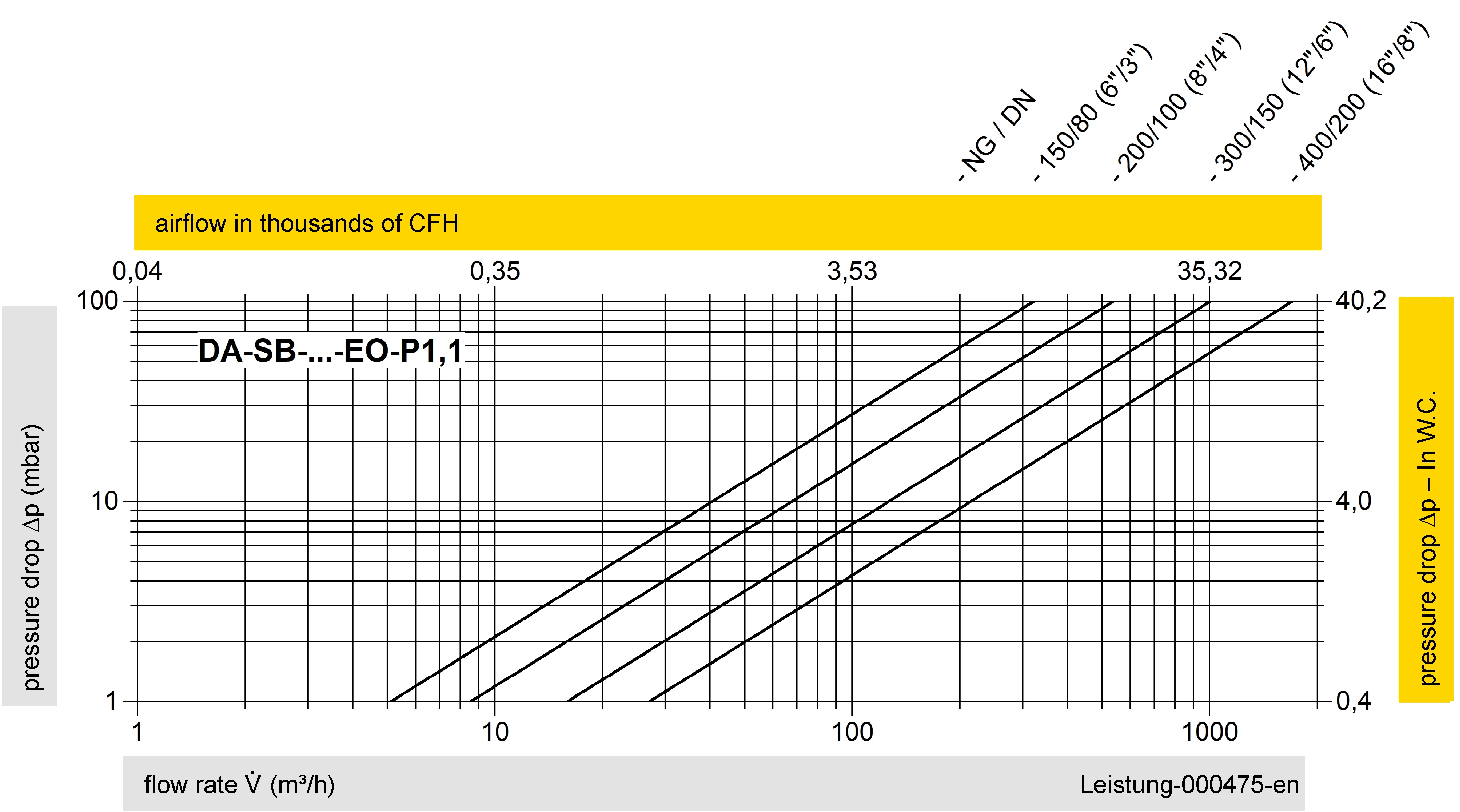

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.

Applications

Processing Facilities

Vapor Combustion Systems

Tank Storage

Alcohol Storage Tanks
