BR/TS-80-IIB-P1,6

Detonation Flame Arrester for tank ships and containers

Features

Meets all ADNR* requirements
* PRESCRIPTION OF THE TRANSPORT OF DANGEROUS GOODS ON THE RHINE
Flat Design
Emergency Venting
with the flexibly mounted flame arrester enables use even in bad weather conditions as well as with contaminated products
Easy Maintenance
Extraordinarily Easy to Service
Modular Design
allows replacement and cleaning of single FLAMEFILTER®
Calculation of loading and unloading rates
We offer Support in Calculating Loading and Unloading Rates
For Flammable Liquids
useable for nearly all flammable liquids
Maintenance and cleaning hatch
May be used as Maintenance and Cleaning Hatch
Spare Parts
cost-effective spare parts
Function and Description

Main component - PROTEGO® flame arrester

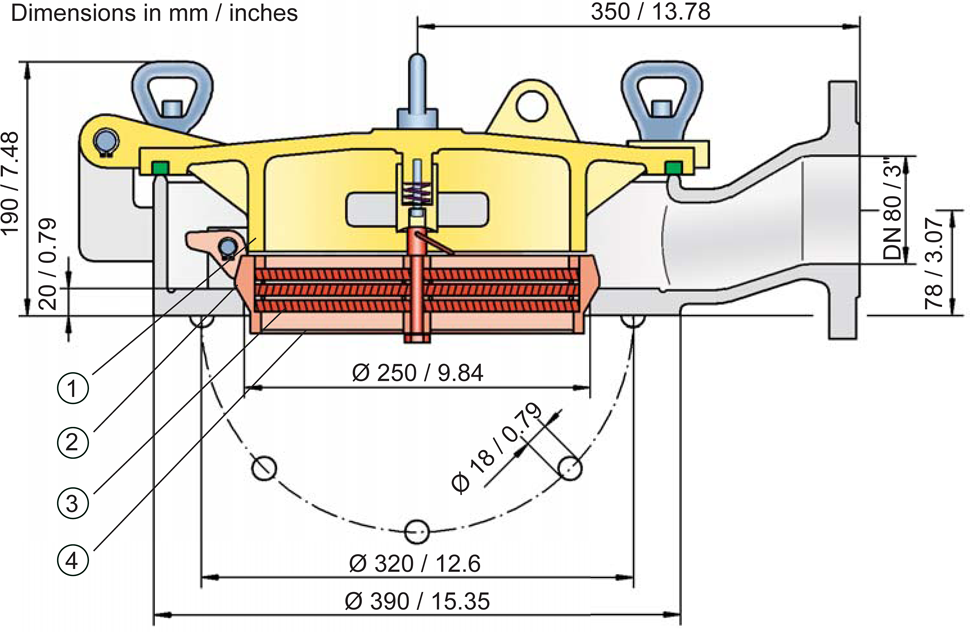

The device protects against unidirectional detonation. In particular, the arrester consists of a shock absorber Shock absorber A shock absorber is a device that reduces the kinetic energy of a detonation. (1) and the PROTEGO® flame arrester unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. (2). The PROTEGO® flame arrester unit consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® cage FLAMEFILTER® cage The FLAMEFILTER® cage is a housing for a FLAMEFILTER® set. (4). It is moveable and can be folded to the side for maintenance Maintenance Combination of all technical and administrative actions, including supervision actions, intended to maintain or restore a unit in working order. . The primary goal of this design is to enable the tank to be vented or supplied with air in an emergency when ice or crystallizing products clog the FLAMEFILTER®.

For Explosion groups IIA to IIB

The PROTEGO® BR/TS flame arrester is available for explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. groups IIA to IIB (NEC group D to B MESG ≥ 0.5 mm). The standard design is approved up to an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of +60°C / 140°F and an operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. up to 1.6 bar / 23.2 psi (absolute), and it meets all the conditions of the ADN* for hazardous goods transport on European Inland Waterways. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Data

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

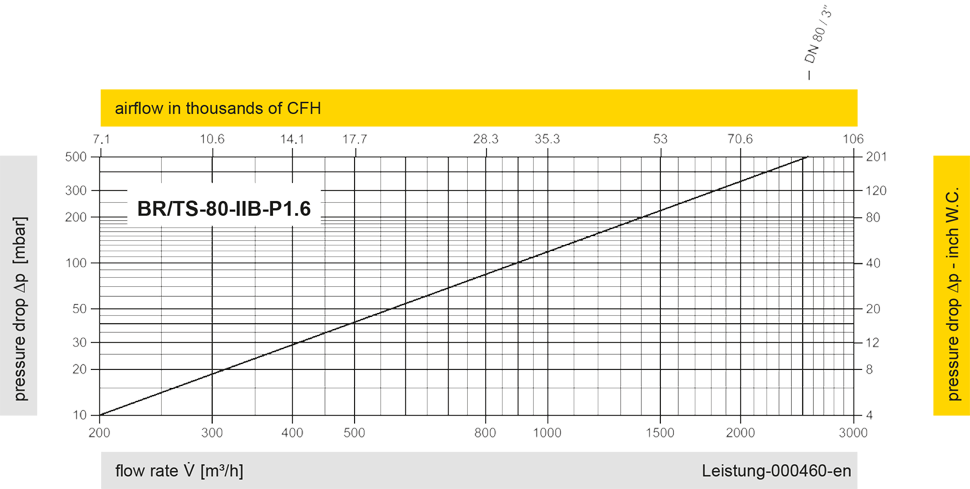

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.

Applications

Floating-Roof Storage Tanks

Processing Facilities

Vapor Combustion Systems
