Full Lift Technology

The device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift. Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. This “full lift type” technology allows the valve to be set at just 10% below the maximum allowable working pressure or vacuum (MAWP or MAWV) of the tank and still safely vent the required mass flow. Due to our highly developed manufacturing technology, the tank pressure Tank pressure Tank pressure is the pressure within a tank. is maintained up to set pressure with a tightness that is far above the conventional standard.

Custom Materials

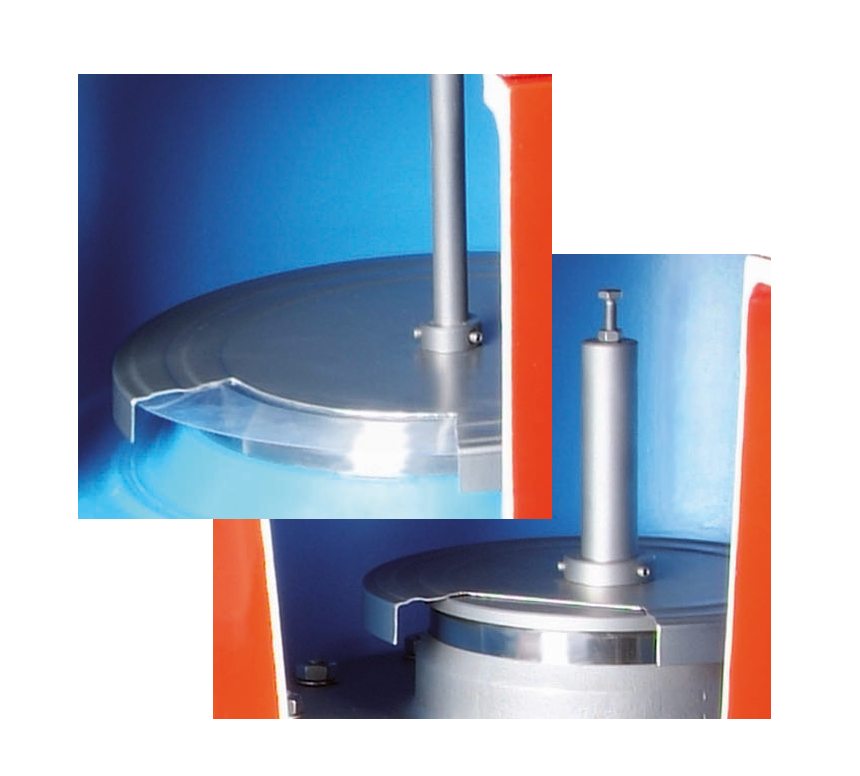

This feature is ensured by valve seats made of high quality stainless steel and with individually lapped valve pallets (1), or with an air cushion seal Seal A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. (2), in conjunction with high quality FEP diaphragm Diaphragm A diaphragm is a thin layer of material, which has a large surface area. . The valve pallets are also available with a PTFE seal to prevent the valve pallets from sticking when sticky products are used and to enable the use of corrosive fluids. After the overpressure is released or the vacuum is balanced, the valve re-seats and provides a tight seal.

Optimized Valve Design for Maximum Performance

The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Product Data and Features

Dimensions

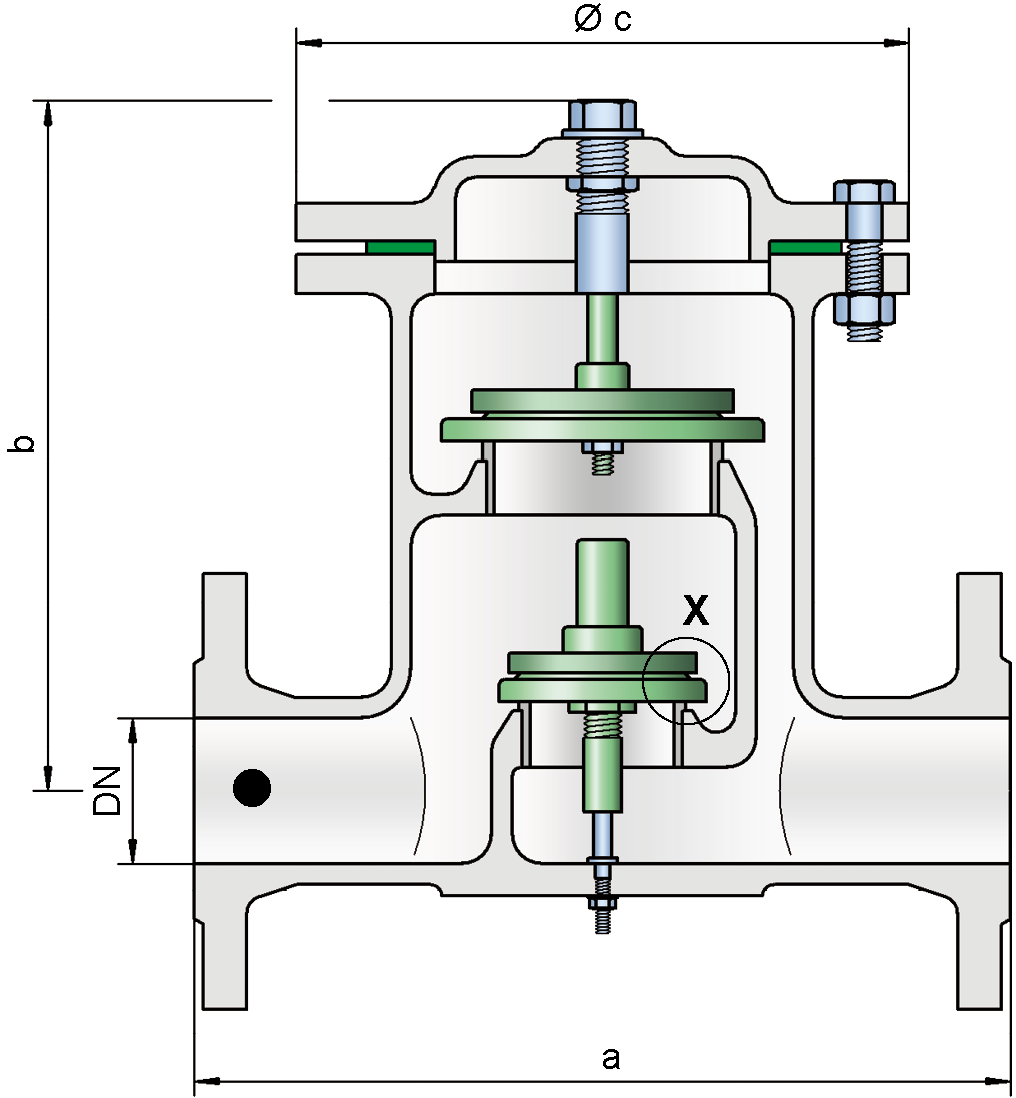

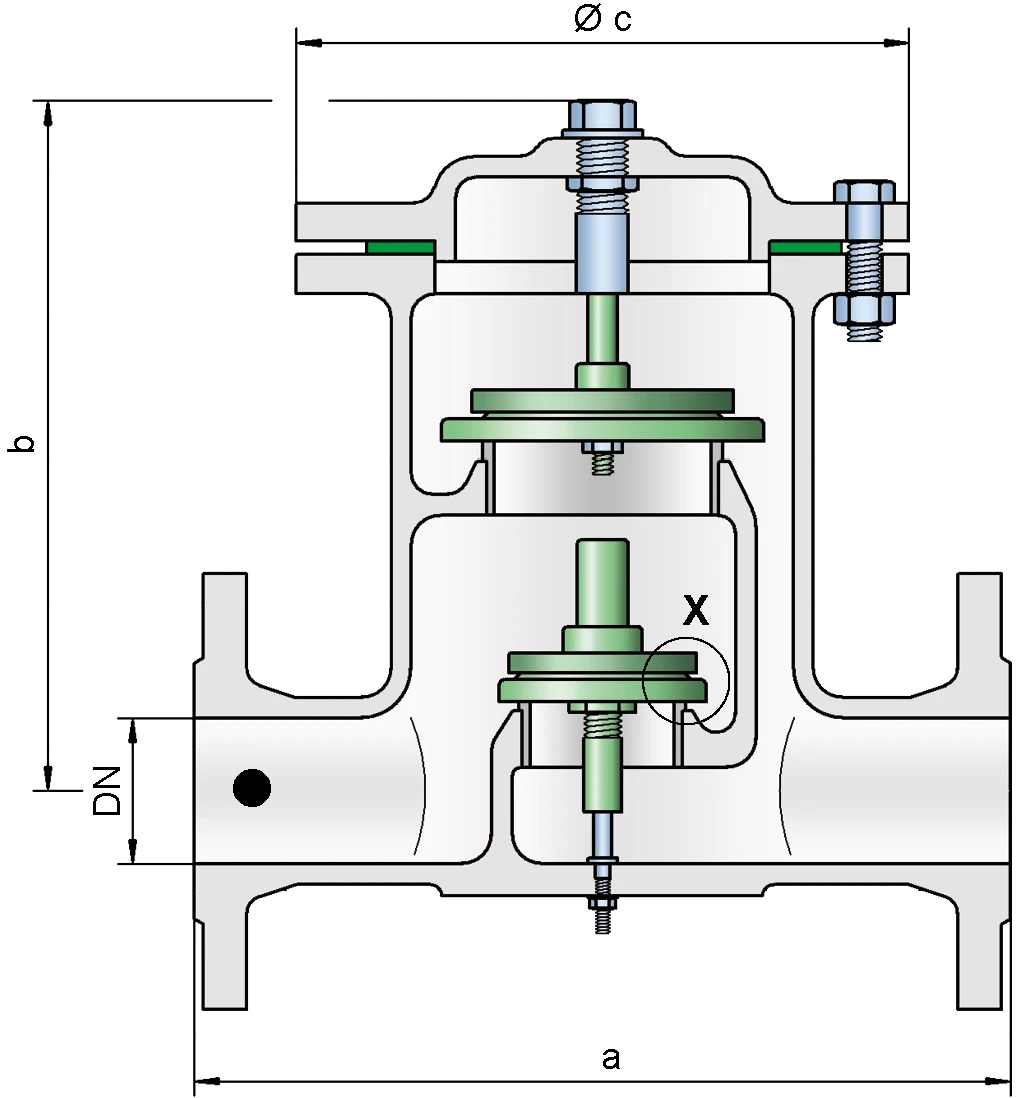

Dimensions in mm / inches

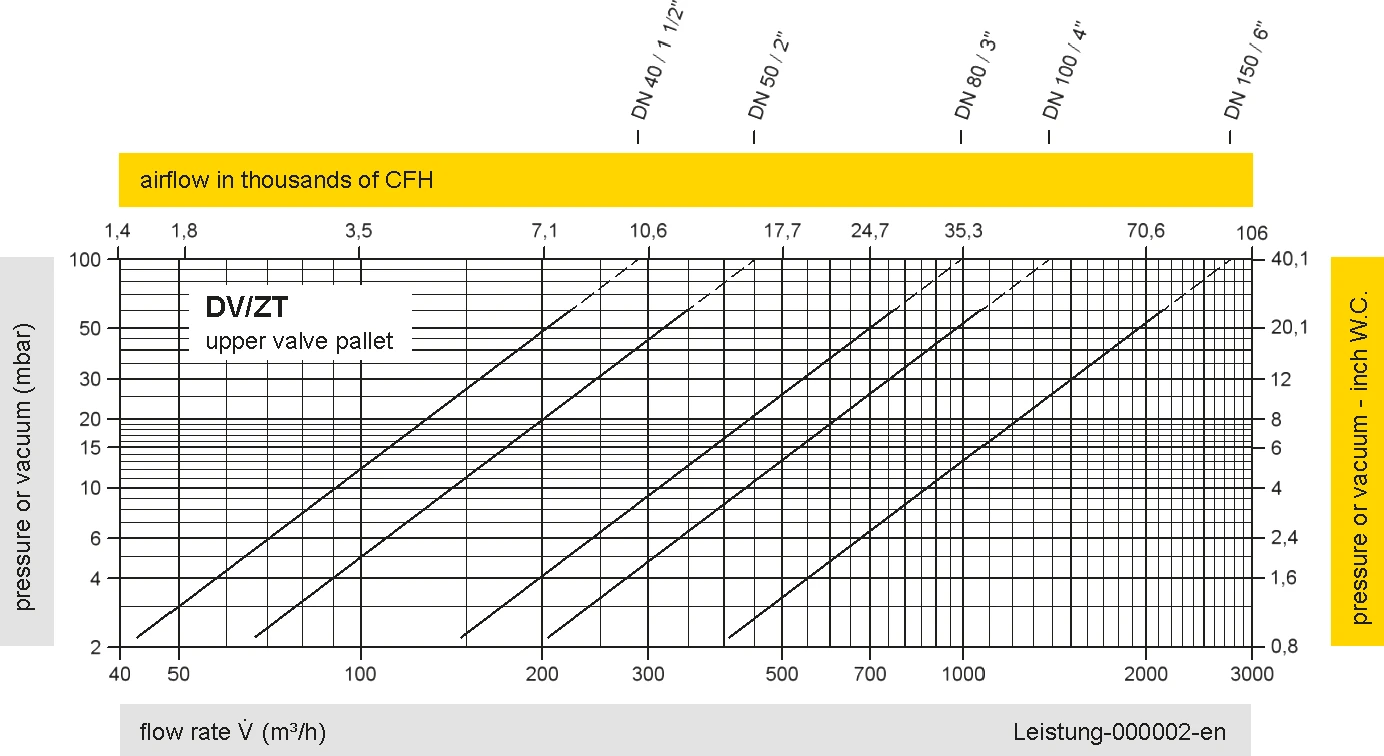

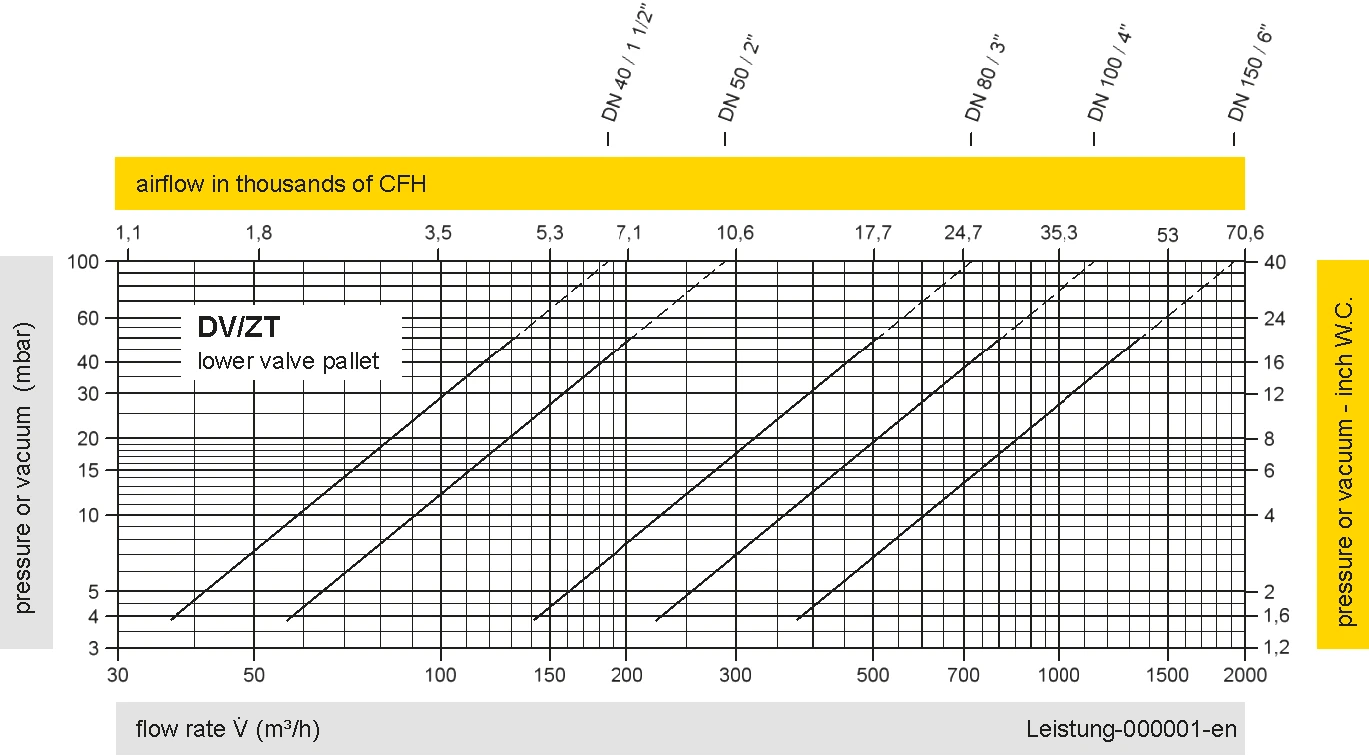

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity chart on the following page

DN40 / 1½“ 50 / 2" 80 / 3" 100 / 4" 150 / 6"
a280 / 11.02280 / 11.02340 / 13.39390 / 15.35520 / 20.47
b270 / 10.63270 / 10.63290 / 11.42355 / 13.98425 / 16.73
c210 / 8.27210 / 8.27280 / 11.02310 / 12.20390 / 15.35

Material selection for upper valve pallet

Design ABCD
Pressure range [mbar]
[inch W.C.]
±2.0 up to ±3.5
±0.8 up to ±1.4
±3.5 up to ±14
>±1.4 up to ±5.6
±14 up to ±60
>±5.6 up to ±24
±14 up to ±60
>±5.6 up to ±24
Valve palletAluminiumStainless SteelStainless SteelStainless Steel
SealingFEPFEPMetal to MetalPTFE

Material selection for lower valve pallet

Design ABCDEF
Pressure range [mbar]
[inch W.C.]
±2,0 up to ±3,5
±0.8 up to ±1.4
±3,5 up to ±14
±1.4 up to ±5.6
±14 up to ±35
±5.6 up to ±14
±35 up to ±50
±14 up to ±20
±14 up to ±35
±5.6 up to ±14
±35 up to ±50
±14 up to ±20
Valve palletAluminiumStainless SteelStainless SteelStainless SteelStainless SteelStainless Steel
SealingFEPFEPMetal to MetalMetal to MetalPTFEPTFE

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.
Applications

Landfill and Waste Water Treatment Plants

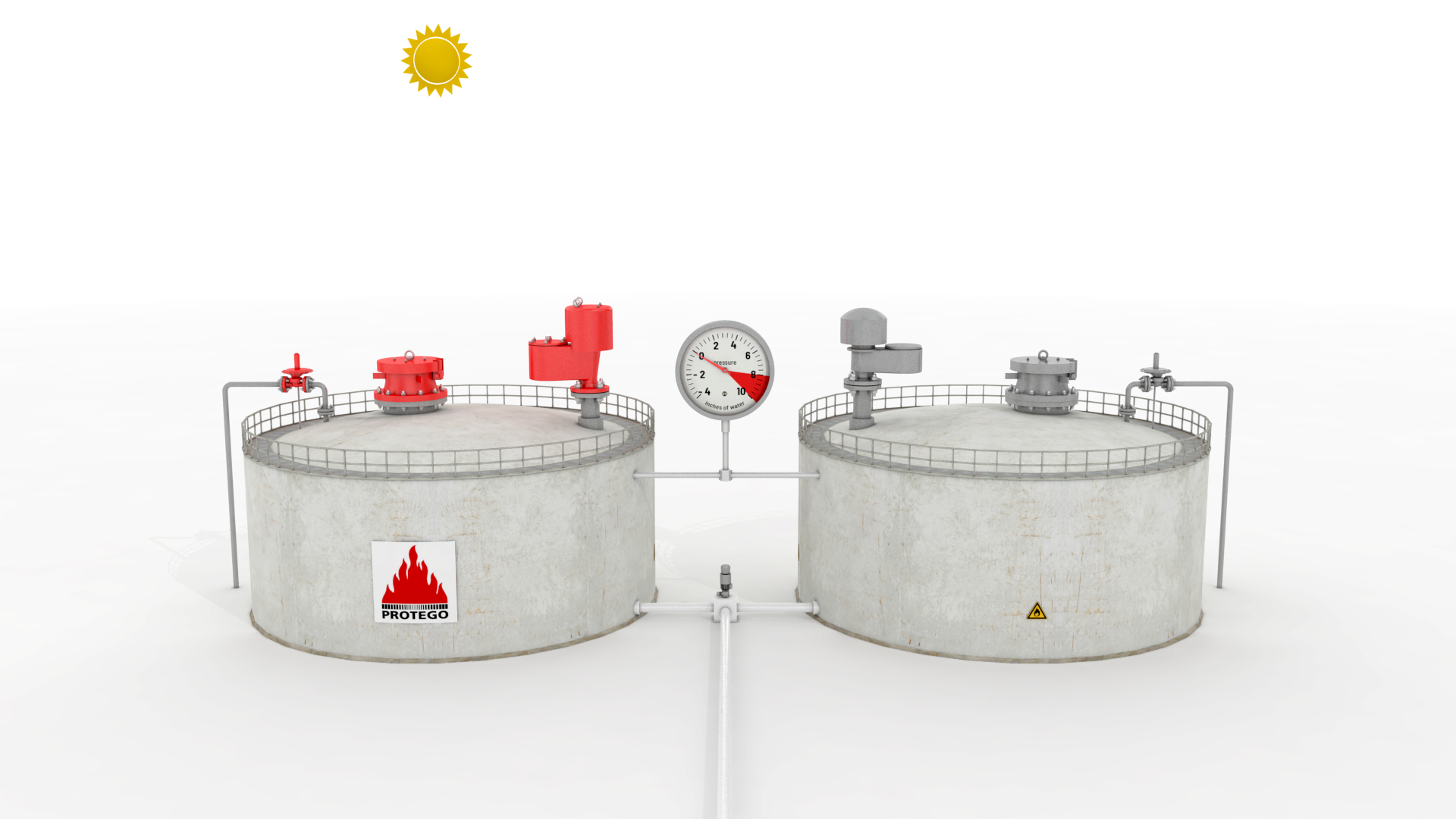

Fixed Roof Storage Tanks

Methanol Fuelled Ships
