Corta-chamas à prova de deflagração para tubulaçãopara biogás, gás de esgoto e gás de aterro sanitário, construção concêntrica, de efeito bilateral

Features

Extended Application Range
for elevated operating temperatures and pressures
Eccentric Design
eases installation close to floors and walls
Spare Parts
cost-effective flame arrester / spare parts
Modular Design
allows replacement and cleaning of single FLAMEFILTER®
Low Costs
low operating and lifecycle costs
Bi-Directional Flame Transmission
proof design
Function and Description

Compact and Maintenance-Friendly endurance-burning-proof in-line device

The deflagration Deflagration Explosion propagating at subsonic velocity (EN 1127-1:1997). and endurance burning Endurance burning Stabilized burning for an unlimited time. -proof PROTEGO® FA-CN-IIA1 in-line flame arrester In-line flame arrester An in-line flame arrester is a flame arrester, which has pipe connectors on either side of the flame arrester unit. was specially developed for bio-, sewage- and landfill-gas applications. With this device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. it is possible to protect compressors with high operating pressures and high operating temperatures. It can also be used as an endurance-burning-proof in-line device under atmospheric conditions Atmospheric conditions Atmospheric conditions are pressures from 80 kPa till 110 kPa and temperatures from -20°C up to +60°C. , without temperature monitoring. The PROTEGO® FA-CN-IIA1 deflagration flame arrester is a compact design utilizing an easy access cover for easy maintainability.

Main component - PROTEGO® flame arrester

The FLAMEFILTER® unit can be removed and cleaned within moments without having to disassemble the pipe. When installing the deflagration flame arrester, make sure that the distance between potential ignition sources and the location of the installed device, does not exceed the L/D ratio (pipe length/ pipe diameter), for which the device was tested. For this device the (L/D)max ratio is 50. The in-line deflagration flame arrester In-line deflagration flame arrester A deflagration flame arrester is designed to prevent the transmission of a deflagration. An in-line deflagration flame arrester is equipped with a pipe connection on both sides. is symmetrical and offers bidirectional flame transmission protection. The device consists of a housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. (1) with an easy access cover (3) and the PROTEGO® flame arrester unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. (2) in the center. The PROTEGO® flame arrester unit is modular and consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. . The number of FLAMEFILTER® discs and their gap size depend on the arrester‘s conditions of use.

For Explosion group IIA1

By indicating the operating parameters such as temperature, pressure, explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group and the composition of the fluid, the optimum deflagration flame arrester can be selected from a series of approved devices. This version of PROTEGO® FA-CN-IIA1 flame arrester protects against deflagrations and endurance burning of explosion group IIA1 – methane (former designation Expl.gr. I).

Many Individual Certifications

PROTEGO® FA-CN devices for substances of explosion groups IIA, IIB3 and IIC (NEC groups D, C, and B) are shown on separate pages. The standard design can be used up to an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of +60°C / 140°F and an absolute operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. up to 2.0 bar / 29.0 psi (DN 40/1½" and DN 50/2”) or 1,6 bar / 23.2 (DN 80/3” to DN 300/12”). Devices with special approval can be obtained for higher pressures (see table 3) and higher temperatures upon request. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.

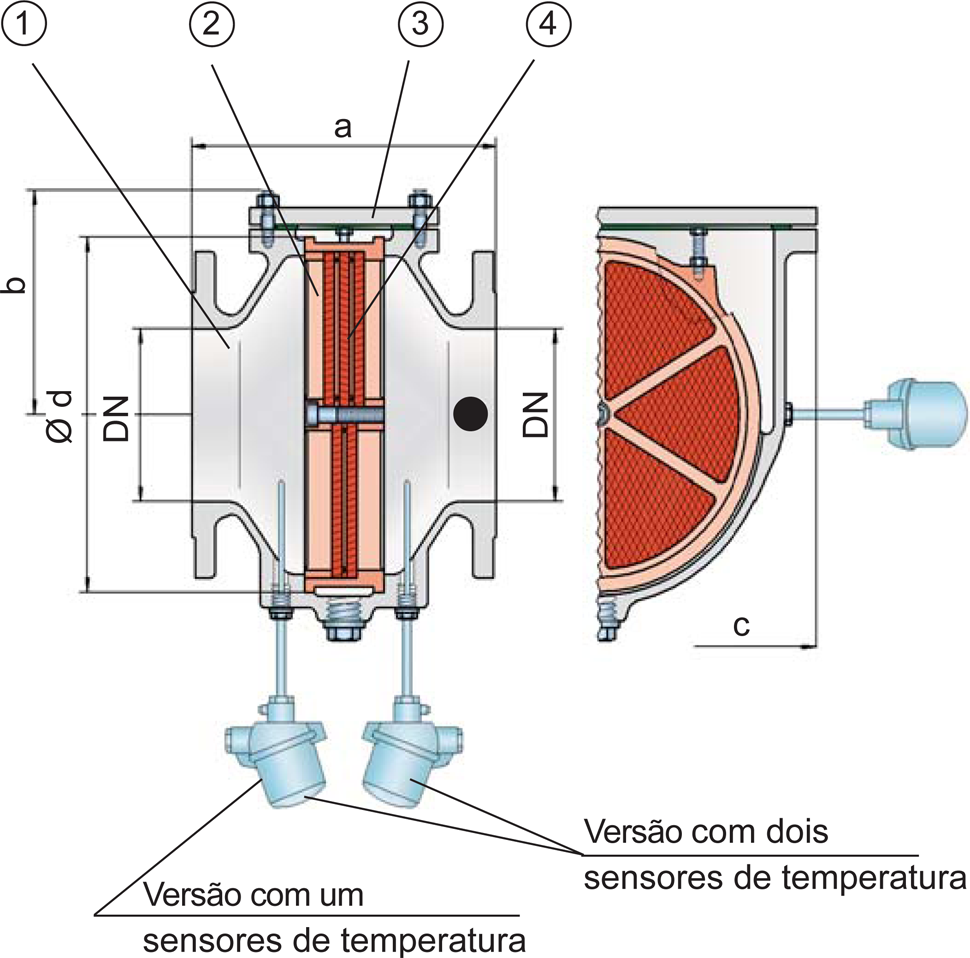

Tabela de dimensões

Para escolher o diâmetro nominal (DN), veja os diagramas de vazão nas páginas seguintes

DN40 / 1½"50 / 2"65 / 2½"80 / 3"100 / 4"125 / 5"150 / 6"200 / 8"250 / 10"300 / 12"
a210215235240265305310300320350
b105105132132150197197220260295
c200200260260308415415446520600
d130130185185220310310355420490

Dimensões em mm

Seleção do grupo de explosão

MESG Gr. expl. (IEC / CEN)
> 1,14 mmIIA1 (I)*

Aprovações especiais sob solicitação

Seleção da pressão máx. de trabalho

DN40 / 1½"50 / 2"65 / 2½"80 / 3"100 / 4"125 / 5"150 / 6"200 / 8"250 / 10"300 / 12"
Pmax221,61,61,61,61,61,61,61,6
Pmax2,52,52,52,52,52,52,52,5
Pmax4,54,54,54,54,54,54,5
Pmax55

Pmáx. = pressão de trabalho máxima admissível em bar absoluta, pressão de trabalho mais elevada sob solicitação

Indicação da temperatura máx. de trabalho

≤ 60°C Ttemperatura máxima de trabalho admissível em °C
-Designation

temperaturas de trabalho mais elevadas, sob solicitação

Tipo de conexão flangeada

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

Outras conexões sob solicitação

Versão e especificação

Estão disponíveis três versões:
Corta-chamas à prova de deflagração para tubulação em versão básicaFA-CN - –
Corta-chamas à prova de defl agração para tubulação com sensor de temperatura* integrado como proteção adicional contra combustão de curta duração de um ladoFA-CN - T
Corta-chamas à prova de deflagração para tubulação com dois sensores de temperatura* integrados para proteção adicional contra combustão de curta duração de ambos os ladosFA-CN - TB

Outros dispositivos especiais sob solicitação
*Termoresistência para grupo de equipamentos II, categoria (1) 2 (cat. GII (1) 2)

Seleção do material

Execução A B
Corpo Aço Aço inoxidável
Tampa Aço Aço inoxidável
VedaçãoWS 3822*PTFE
Conjunto abafador de chamas Aço inoxidável Aço inoxidável

* para equipamentos em caso de aplicação com temperaturas elevadas a partir de 150°C (T150), vedações em PTFE.

Materiais especiais sob solicitação

Diagrama de vazão

Este diagrama de vazão foi determinado em uma bancada de medição de vazão calibrada e certificada pela TÜV. A vazão V em m³/h se refere ao estado técnico padrão de ar, conforme ISO 6358 (20°C, 1bar). Para conversão em outras densidades e temperaturas, veja o cap. 1: Bases técnicas.
