DV/ZT

Válvula de alívio de pressão e vácuo para tubulação

Features

Function and Description

Full Lift Technology

The device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift. Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. This “full lift type” technology allows the valve to be set at just 10% below the maximum allowable working pressure or vacuum Vacuum Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. (MAWP or MAWV) of the tank and still safely vent the required mass flow. Due to our highly developed manufacturing technology, the tank pressure Tank pressure Tank pressure is the pressure within a tank. is maintained up to set pressure with a tightness that is far above the conventional standard.

Custom Materials

This feature is ensured by valve seats made of high quality stainless steel and with individually lapped valve pallets (1), or with an air cushion seal Seal A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. (2), in conjunction with high quality FEP diaphragm Diaphragm A diaphragm is a thin layer of material, which has a large surface area. . The valve pallets are also available with a PTFE seal to prevent the valve pallets from sticking when sticky products are used and to enable the use of corrosive fluids. After the overpressure is released or the vacuum is balanced, the valve re-seats and provides a tight seal. The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Product Data and Features

Tabela de dimensões

Para selecionar o diâmetro nominal (DN), veja os diagramas de vazão na página seguinte

DN40 / 1½"50 / 2"80 / 3"100 / 4"150 / 6"
a280280340390520
b270270290355425
c210210280310390

Dimensões em mm

DN maiores sob solicitação

Dimensões para a válvula de pressão e vácuo para tubulação com camisa de aquecimento sob solicitação

Seleção do material do corpo

Execução AB
Corpo Aço Aço inoxidável
Camisa de aquecimento (DV / ZT-H-...) Aço Aço inoxidável
Sede de válvula Aço inoxidável Aço inoxidável
VedaçãoPTFEPTFE

Os corpos também podem ser fornecidos com revestimento de ECTFE

Materiais especiais sob solicitação

Material selection for upper valve pallet

Execução            ABCD
Faixa de pressão [mbar]
±2,0 até ±3,5
±3,5 até ±14±14 até ±60±14 até ±60
Disco da válvula Alumínio Aço inoxidável Aço inoxidável Aço inoxidável
VedaçãoFEPFEP metálicaPTFE

Materiais especiais sob solicitação

Em caso de ajustes de pressão mais altos, usar o tipo DV/ZT-F

Material selection for lower valve pallet

Execução ABCDEF
Faixa de pressão [mbar]
±3,5 até ±5,0±5,0 até ±14±14 até ±35±35 até ±50±14 até ±35±35 até ±50
Disco daválvula Alumínio Aço inoxidável Aço inoxidável Aço inoxidável Aço inoxidável Aço inoxidável
VedaçãoFEPFEP metálica metálicaPTFEPTFE

Materiais especiais, bem como ajustes de vácuo mais baixos sob solicitação

Tipo de conexão flangeada

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

Outras conexões sob solicitação

Versão e especificação

Os discos da válvula são calibrados por peso. Pressões de ajuste mais altas são estabelecidas no lado da pressão com calibração por mola (tipo DV/ZT-F)
Estão disponíveis duas versões:
Válvula de pressão e vácuo para tubulação na versão básicaDV/ZT - –
Válvula de pressão e vácuo para tubulação com camisa de aquecimentoDV/ZT - H

Outros dispositivos especiais sob solicitação
Geralmente deve-se observar a contrapressão nas válvulas de tubulação, que tem influência na pressão de ajuste e no comportamento de abertura. Para casos especiais (p. ex., operação de carga parcial), a válvula também pode ser fornecida com disco convencional (comportamento proporcional).

Ajustes de pressão

Disco superior da válvula:±2.0 mbar±60 mbar
±0.8 inch W.C.±24 inch W.C.
Disco inferior da válvula:±3.5 mbar±50 mbar
±1.4 inch W.C.±20 inch W.C.

Em caso de ajustes de pressão mais altos, usar o tipo DV/ZT-F.
Ajustes de vácuo mais baixos sob solicitação

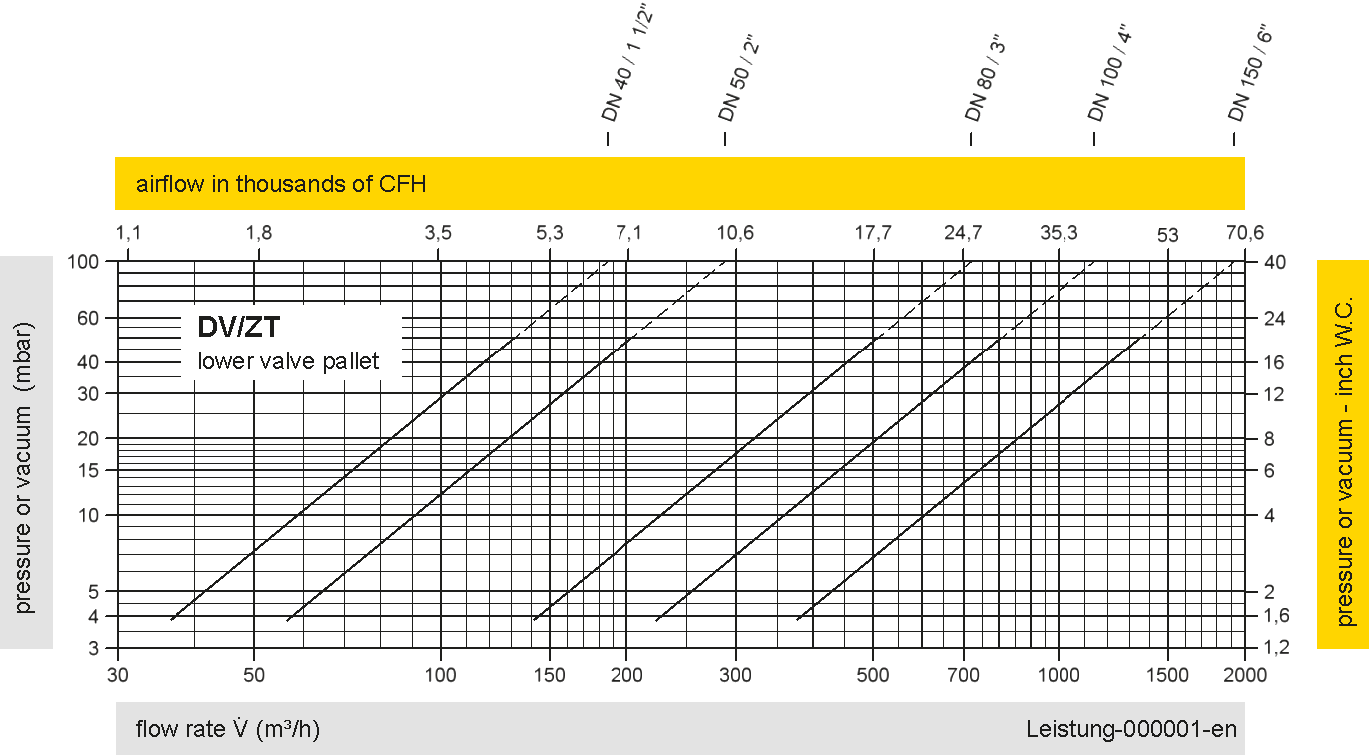

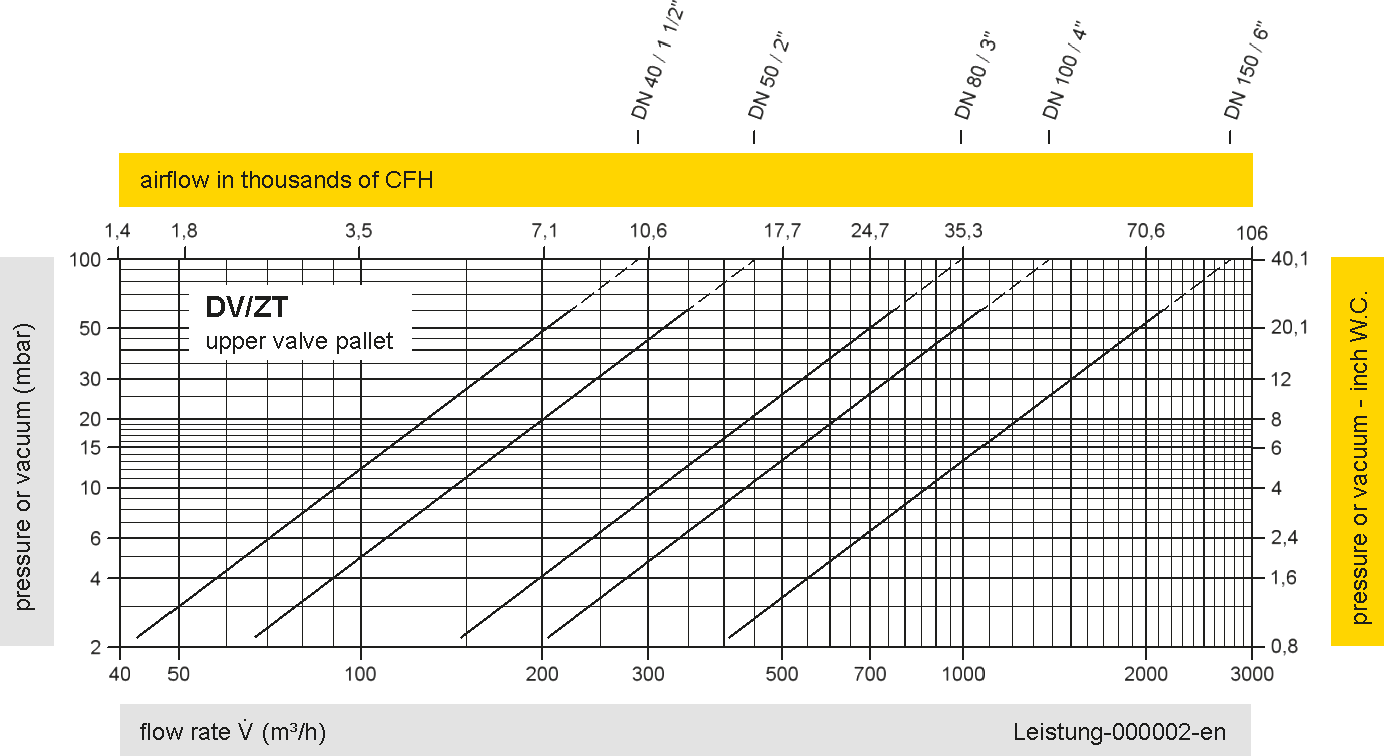

Diagrama de vazão

Este diagrama de vazão foi determinado em uma bancada de medição de vazão calibrada e certificada pela TÜV. A vazão V em m³/h se refere ao estado técnico padrão de ar, conforme ISO 6358 (20°C, 1bar). Para conversão em outras densidades e temperaturas, veja o cap. 1: Bases técnicas.

Detalhe X

Detalhe X

Tank connection; Other arrangement of the tank connection upon request.
