SV/E

Válvula de alívio de vácuoà prova de deflagração

Features

Extreme Tightness
resulting in lowest possible product Product Includes equipment, protective systems, devices, components and combinations of these. losses and reduced environmental pollution
Flow Capacity
optimized flow capacity
Modular Design
allows replacement and cleaning of single FLAMEFILTER®
Function and Description

Main component - PROTEGO® flame arrester

The deflagration Deflagration Explosion propagating at subsonic velocity (EN 1127-1:1997). -proof SV/E type PROTEGO® valve is a state-of-the-art vacuum relief valve Vacuum relief valve A vacuum relief valve is used to ventilate a part of the system and protects it from impermissible underpressure. with an integrated flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. . It is primarily used as a device for flame transmission-proof Flame transmission-proof Characteristic of a device to avoid flashback. in-breathing on tanks, containers, and process equipment Equipment Machines, appliances, fixed or mobile devices, control parts and accessories, and warning and prevention systems, whether separate or combined, intended for the generation, transfer, storage, measurement, control, and conversion of energy, and for the processing of materials, which have their own potential source of ignition and may cause an explosion. . The valve offers reliable protection against vacuum Vacuum Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. and prevents in-breathing of air almost up to the set pressure; while at the same time protecting against atmospheric deflagration. The PROTEGO® flame arrester unit PROTEGO® flame arrester unit The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation. is designed to achieve minimum pressure drop with maximum safety. The PROTEGO® SV/E valve is available for substances from explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. groups IIA to IIC.

10%-Technology

When the set vacuum Set vacuum Internal negative gauge pressure at which a vacuum valve first opens. is reached, the valve starts to open and reaches full lift within 10% overpressure Overpressure Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure. . This unique 10% technology enables a set vacuum that is only 10% above the maximum allowable working vacuum (MAWV) of the tank. After years of development, this typical opening characteristic of a safety relief valve is now also available for the low pressure range.

Custom Materials

The tank pressure Tank pressure Tank pressure is the pressure within a tank. is maintained up to the set vacuum with a tightness that is above the normal standards due to our state-of-the-art manufacturing technology. This feature is ensured by the valve seats made of high quality stainless steel and with individually lapped valve pallets (1), or with an air cushion seal Seal A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. , (2) in conjunction with high quality FEP diaphragm Diaphragm A diaphragm is a thin layer of material, which has a large surface area. . The valve pallets are also available with a PTFE seal to prevent them from sticking when sticky substances are used and to enable the use corrosive fluids. After the vacuum is balanced, the valve re-seats and provides a tight seal.

Prevents Ignition Through Integrated FLAMEFILTER®

If the valve is used in atmospheres forming an explosive mixture with air and the mixture ignites, the integrated PROTEGO® flame arrester unit (3) prevents flame transmission into the tank. The standard design is tested at an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of up to +60°C / 140°F and meets the requirements of European tank design standard EN 14015 (Appendix L) and ISO 28300 (API 2000). In addition, numerous versions for higher operating temperature are available.

Many Individual Certifications

EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request. Additional certificates from classification organizations for use on ships are also available.
Product Data and Features

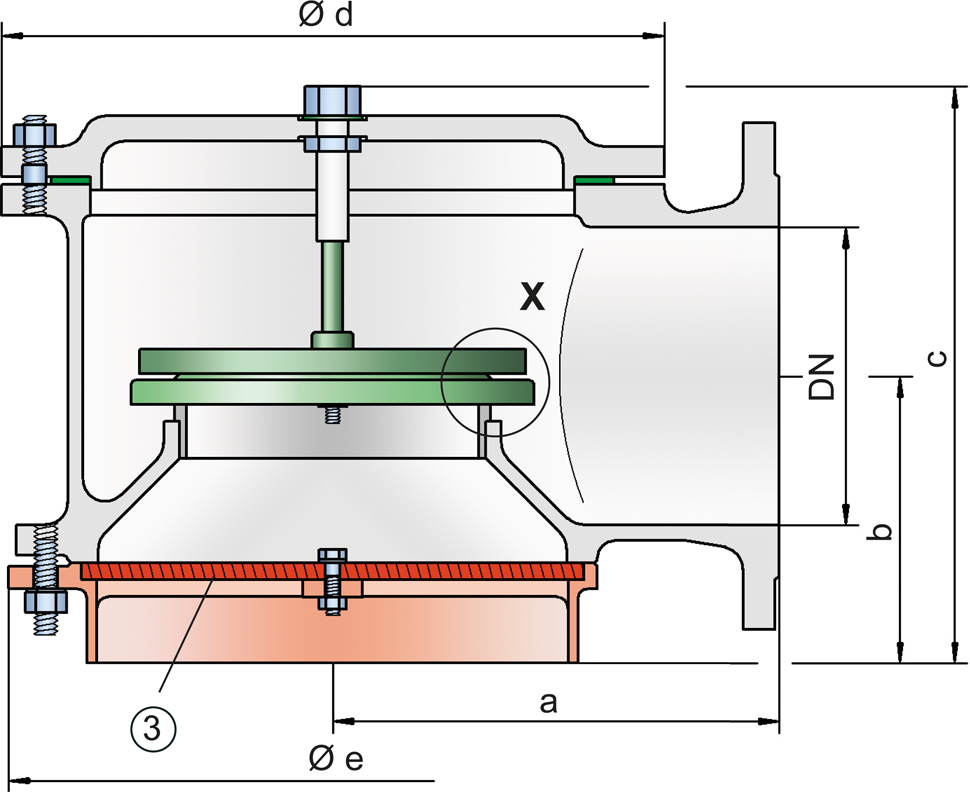

Tabela de dimensões

Para escolher o diâmetro nominal (DN), veja o diagrama de vazão da página seguinte

DN50 / 2"80 / 3"100 / 4"150 / 6"200 / 8"250 / 10"300 / 12"
a140170190230300325425
b105115125165195230280
c225240320410460525575
d170235280335445505505
e215215255345435470635

Dimensões em mm

Seleção do grupo de explosão

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
≥ 0,65 mm IIB3 C
≥ 0,50 mm IIB B
< 0,50 mm IIC B

Aprovações especiais sob solicitação

Indicação da temperatura máx. de trabalho

≤ 60 °C temperatura máx. de serviço admissível em °C
-

temperaturas de trabalho mais elevadas, sob solicitação

Tipo de conexão flangeada

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

Outras conexões sob solicitação

Versão e especificação

O obturador da válvula é calibrado por peso. Para pressões de ajuste mais altas são realizadas, sob solicitação, versões especiais calibradas por mola.
Estão disponíveis quatro versões:
Válvula de alívio de vácuo na versão básicaSV/E- – - –
Válvula de alívio de vácuo com camisa de aquecimento (temperatura máx. do meio de aquecimento +85°C)SV/E- – - H
Válvula de alívio de vácuo disponível com um dispositivo de acionamento manual (versão de navio)SV/E- S - –
Válvula de alívio de vácuo com dispositivo de acionamento manual (versão de navio) e camisa de aquecimento (temperatura máx. do meio de aquecimento +85°C)SV/E- S - H

Outros dispositivos especiais sob solicitação

Ajustes de pressão

Vácuo:-2.0 mbar-60 mbar
-0.8 inch W.C.-24 inch W.C.

Ajustes de vácuo mais altos sob solicitação

Seleção do material do corpo

Execução
BC
Corpo
Aço Aço inoxidável
Camisa de aquecimento (SV / E-(S)-H-...)
Aço Aço inoxidável
Aço inoxidável Aço inoxidável
Vedação
PTFE PTFE
Conjunto abafador de chamas
B B

Materiais especiais sob solicitação

Combinações de material do conjunto abafador de chamas

Execução
B
Armação do FLAMEFILTER®
Aço inoxidável
FLAMEFILTER®
Aço inoxidável

Materiais especiais sob solicitação

Seleção de material do obturador da válvula

ExecuçãoABCDEF
Faixa de pressão [mbar]-2,0 até -3,5<-3,5 até -14<-14 até -35<-35 até -60<-14 até -35<-35 até -60
Obturador da válvulaAlumínioAço inoxidávelAço inoxidávelAço inoxidávelAço inoxidávelAço inoxidável
VedaçãoFEPFEPmetálicametálicaPTFEPTFE

Materiais especiais e ajustes de pressões mais altas sob solicitação

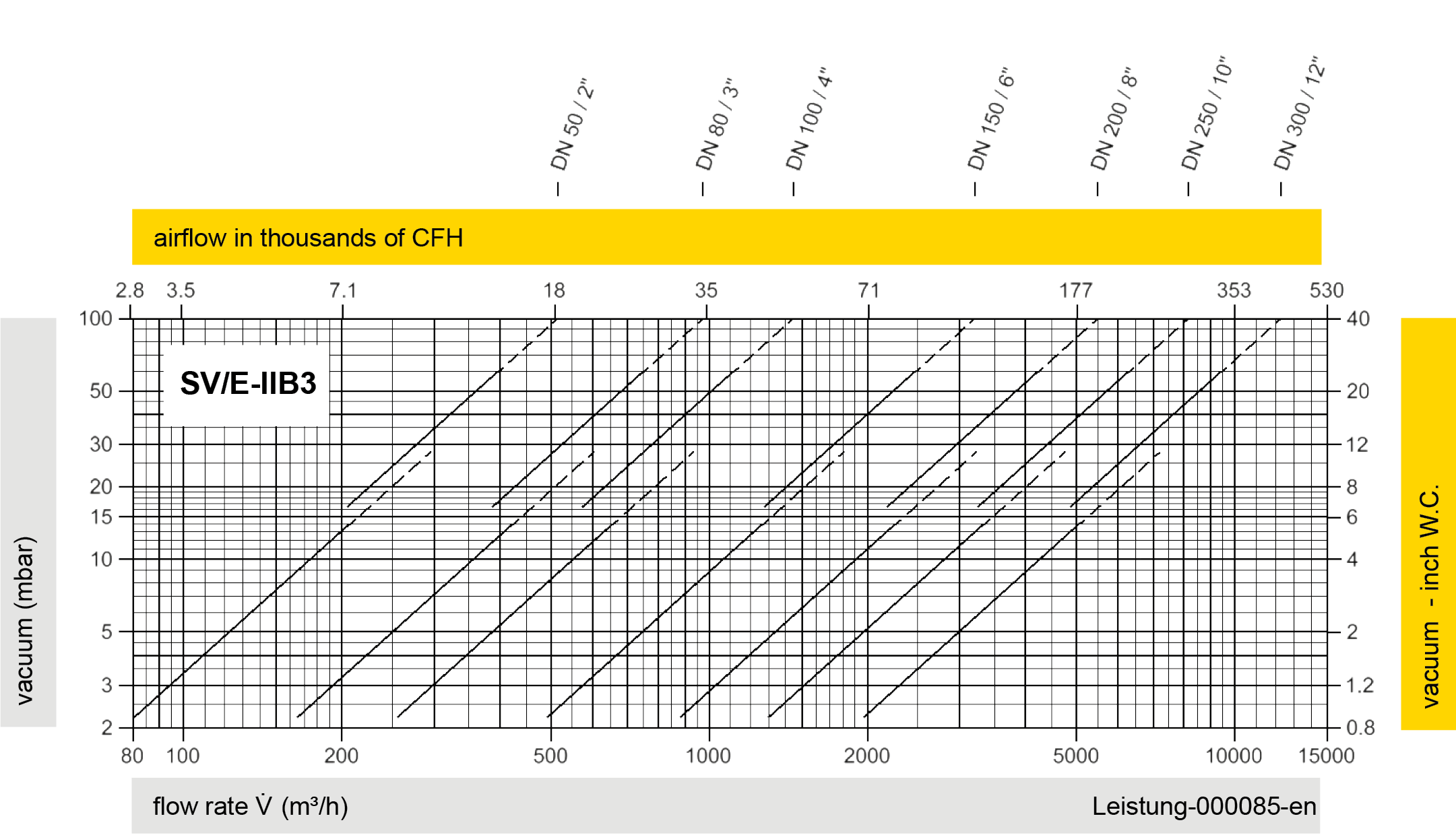

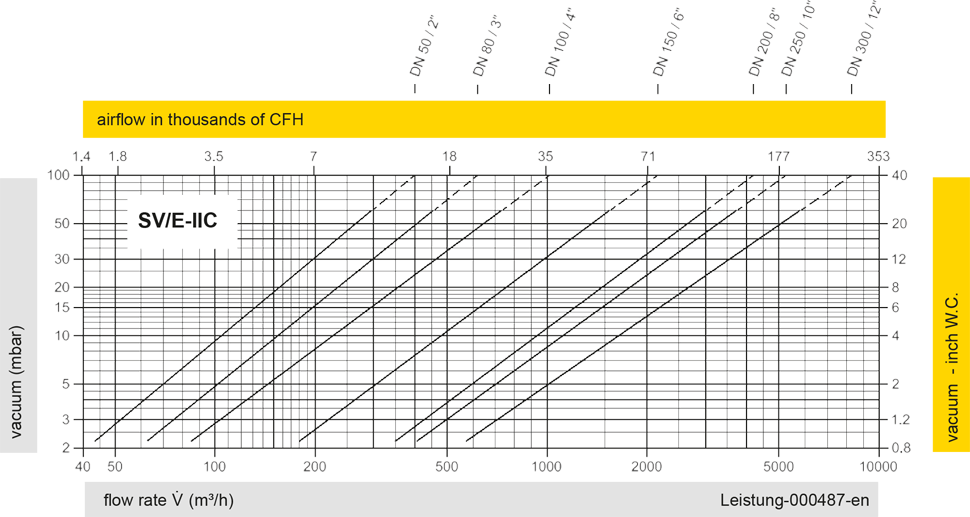

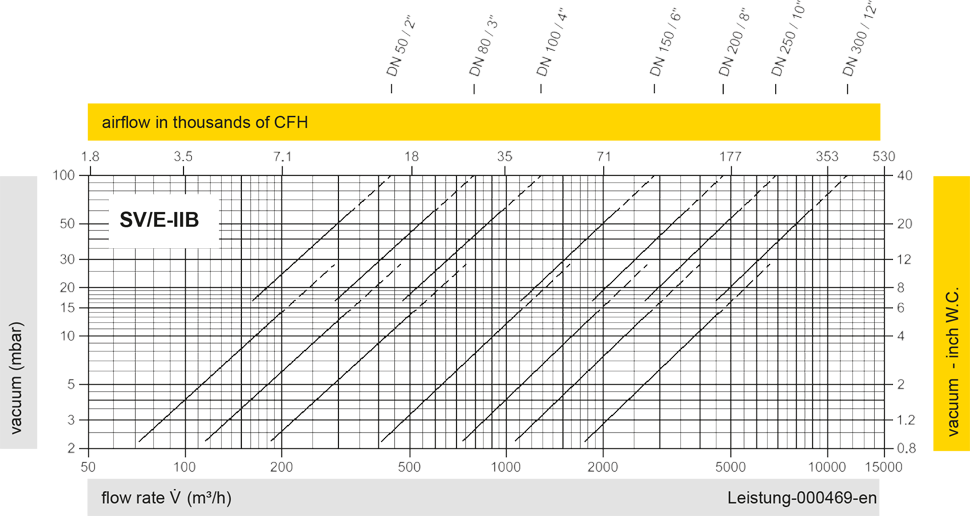

Diagrama de vazão

Este diagrama de vazão foi determinado em uma bancada de medição de vazão calibrada e certificada pela TÜV. A vazão V em m³/h se refere ao estado técnico padrão de ar, conforme ISO 6358 (20°C, 1bar). Para conversão em outras densidades e temperaturas, veja o cap. 1: Bases técnicas.

Detalhe X

Detalhe X
