V/SV-XL
Vacuum Relief Valve
Features
10% Technology
for minimum pressure increase up to full
lift
Lift
Lift is the actual travel of the valve pallet from the main valve out of the closed position.
Condensate Drainage
automatic condensate drain
API Tanks
best technology for API tanks
Used in Explosion Hazardous Areas
Extreme Tightness
resulting in lowest possible
product
Product
Includes equipment, protective systems, devices, components and combinations of these.
losses and reduced environmental pollution
Optimal Pressure Maintenance
set pressure
Set pressure
Set pressure is the gauge pressure at the device inlet at which the relief device is set to start opening under service conditions.
close to opening pressure for optimum pressure
maintenance
Maintenance
Combination of all technical and administrative actions, including supervision actions, intended to maintain or restore a unit in working order.
in the system
Flow Capacity
optimized flow capacity
Guided Valve Pallet
valve pallet
Valve pallet
Valve pallet is the generic term for the assembly that rests on the valve seat.
is guided inside the
housing
Housing
A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content.
to protect against harsh weather conditions
Function and Description
Highly Developed Vacuum Relief Valve
The V/SV-XL type PROTEGO® valve is a highly developed optimized
vacuum relief valve
Vacuum relief valve
A vacuum relief valve is used to ventilate a part of the system and protects it from impermissible underpressure.
with excellent flow performance. It is primarily used as a
device
Device
A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow.
for relieving
vacuum
Vacuum
Vacuum is the pressure in an enclosed space that is lower than the ambient pressure.
in tanks, containers and process engineering
equipment
Equipment
Machines, appliances, fixed or mobile devices, control parts and accessories, and warning and prevention systems, whether separate or combined, intended for the generation, transfer, storage, measurement, control, and conversion of energy, and for the processing of materials, which have their own potential source of ignition and may cause an explosion.
. The valve offers reliable protection against vacuum, and prevents inbreathing of air close to the set pressure.
The device will start to open as soon as the set pressure is reached and only requires 10%
overpressure
Overpressure
Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure.
to full lift. Continuous investments into research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve
10% Technology
This “full lift type” technology allows the valve to be set just 10% below the maximum allowable working pressure of the tank and still safely vent the required mass flow.
Due to our highly developed manufacturing technology the
tank pressure
Tank pressure
Tank pressure is the pressure within a tank.
is maintained up to set pressure, with a tightness that is far superior to the conventional standard. This feature is achieved by valve seats made of high quality stainless steel and with precisely lapped valve pallets (1) or with an air cushion
seal
Seal
A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements.
(2) in conjunction with high quality FEP
diaphragm
Diaphragm
A diaphragm is a thin layer of material, which has a large surface area.
. The valve pallets are also available with a PTFE seal to prevent the valve pallets from sticking when sticky products are used, and they enable the use of corrosive media. After the vacuum is relieved, the valve reseats and provides a tight seal again.
Flow-Optimized Valve Body for Maximum Efficiency
The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research work, which allow a stable operation of the valve pallet and optimized performance resulting in reduction of product losses.
Product Data and Features
Tabela de dimensões
| DN | 300 / 12" |
| a | 946 / 37.24 |
| b | 649 / 25.55 |
Dimensões em mm
Dimensions of pressure and vacuum relief valves with heating jacket upon request
Seleção do material do corpo
| Design | A | B | C |
| Housing | Aluminium | Steel | Stainless Steel |
| Heating jacket (V/SV-XL-H-...) | – | Steel | Stainless Steel |
| Valve seat Valve seat The valve seat is a component on which the valve pallet rests when the valve is closed. | Stainless Steel | Stainless Steel | Stainless Steel |
| Sealing | PTFE | PTFE | PTFE |
| Cover | Aluminium | Steel | Stainless Steel |
Option: Housing ECTFE-coated
Special materials upon request
Seleção do material do disco da válvula de vácuo
| Design | A | B | C |
| Pressure range [mbar] [inch W.C.] | -2.0 up to -3.0 -0.8 up to -1.2 | <-3.0 up to -9.0 <-1.2 up to -3.6 | <-9.0 up to -16 <-3.6 up to -6.4 |
| Valve pallet | Aluminium | Stainless Steel | Stainless Steel |
| Sealing | FEP | FEP | Metal to Metal |
Special material as well as higher vacuum upon request
Tipo de conexão flangeada
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other types upon request
Versão e especificação
The valve pallets are weight-loaded. Higher vacuum can be achieved upon request with a special spring Spring A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. -loaded design. There are two different designs:Pressure/vacuum valve in basic designV/SV-XL - –
Additional special devices available upon request.
Settings
| Vacuum: | -2.0 mbar | -16 mbar |
| -0.8 inch W.C. |
Higher vacuum settings upon request.

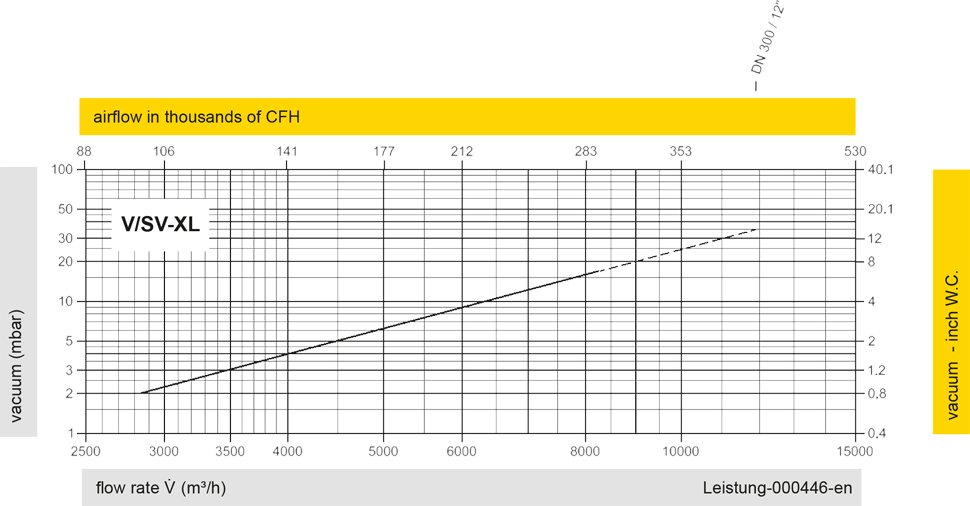

Diagrama de vazão
Este diagrama de vazão foi determinado em uma bancada de medição de vazão calibrada e certificada pela TÜV. A vazão V em m³/h se refere ao estado técnico padrão de ar, conforme ISO 6358 (20°C, 1bar). Para conversão em outras densidades e temperaturas, veja o cap. 1: Bases técnicas.
Einzelheit X
Einzelheit X
