DA-E

Eccentric In-Line Detonation Flame Arresterfor stable detonations and deflagrations in a straight through design, bidirectional

Features

Eccentric Design
prevents condensate build up
Modular Design
allows replacement and cleaning of single FLAMEFILTER®
Fastest Disassembly and Assembly
of single FLAMEFILTER®
Eccentric Design
eases installation close to floors and walls
Bi-Directional Flame Transmission
proof design
Temperature Sensors Possible
use of temperature sensors for G 1½ and G 2 is possible
Spare Parts
cost-effective flame arrester / spare parts
Function and Description

Main component - PROTEGO® flame arrester

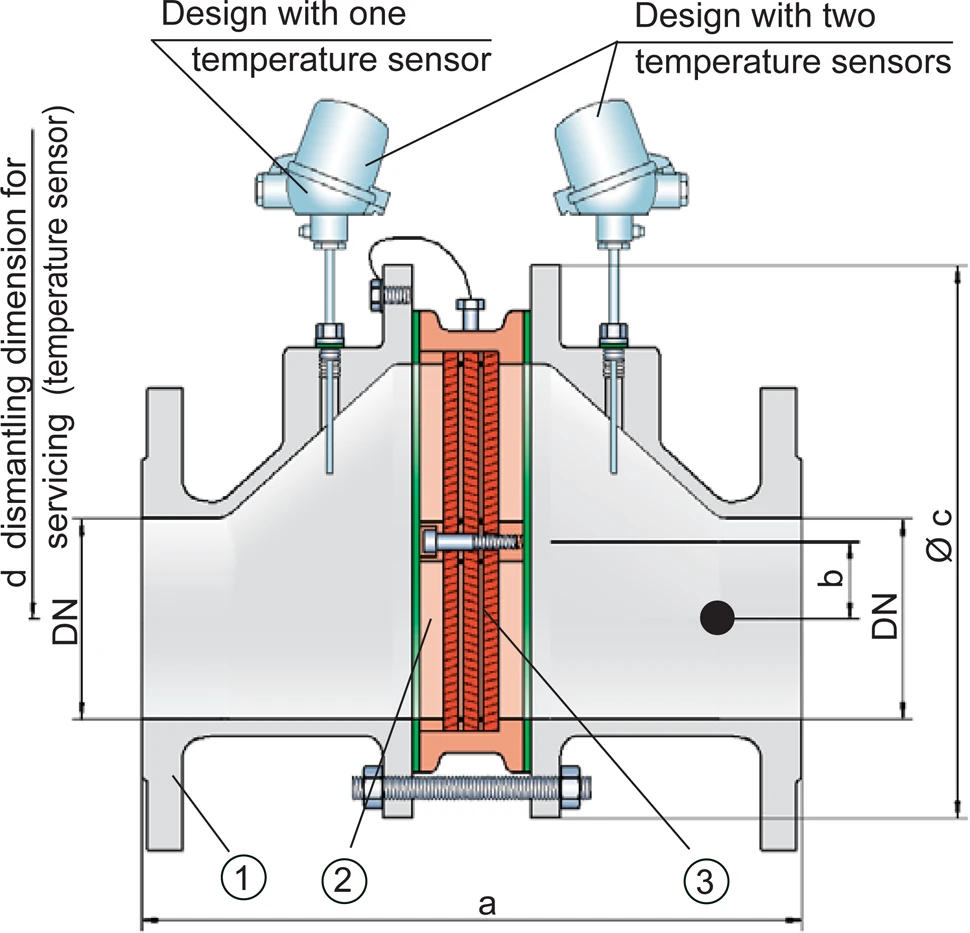

The detonation arrester is symmetrical and offers bi-directional flame arresting. The arrester essentially consists of two housing parts (1) and the PROTEGO® flame arrester unit (2) in the center. The PROTEGO® flame arrester unit consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. . The number of FLAMEFILTER® discs and their gap size depends on the arrester‘s intended use. By specifying the operating conditions, such as the temperature, pressure, explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group, and the composition of the fluid, the optimum detonation arrester can be selected.

For Explosion groups IIA to IIB3

The PROTEGO® DA-E series of flame arresters are available for explosion groups IIA to IIB3 (NEC Group D to C MESG ≥ 0.65 mm). The standard design can be used with an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of up to +60°C / 140°F and an absolute operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. acc. to table 3. Devices with special approval for higher pressures and higher temperatures are available upon request. Type-approved in accordance with the current ATEX Directive and EN ISO 16852, as well as other international standards.

Dimensiones

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN25 / 1"32 / 1¼“40 / 1½“50 / 2"65 / 2½“80 / 3"100 / 4"125 / 5"150 / 6"200 / 8"250 / 10"300 / 12"
Expl. Gr.IIAa304 / 315*304 / 315*320 / 12.60325 / 12.80370 / 14.57375 / 10.83380 / 14.96481 / 18.94487 / 19.17510 / 20.08540 / 21.26560 / 22.05
IIB3a304 / 11.97304 / 11.97357 / 14.06361 / 14.21408 / 16.06412 / 16.22428 / 16.85493 / 19.41499 / 19.65522 / 20.55552 / 21.73572 / 22.52
b29 / 1.1429 / 1.1429 / 1.1429 / 1.1438 / 1.4938 / 1.4939 / 1.5365 / 2.5665 / 2.5655 / 2.1758 / 2.2860 / 2.36
c185 / 7.28185 / 7.28210 / 8.27210 / 8.27250 / 9.84250 / 9.84275 / 10.83385 / 15.16385 / 15.16450 / 17.72500 / 19.69575 / 22.64
d400 / 15.75400 / 15.75410 / 16.14410 / 16.14440 / 17.32440 / 17.32460 / 18.11520 / 20.47520 / 20.47540 / 21.26570 / 22.44600 / 23.62

Dimensiones en mm / pulgadas

* for IIA-P2.0

Selección del grupo de explosión

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
> 0,90 mmIIAD
≥ 0,65 mmIIB3C

Special approvals upon request

Selección de la máxima presión de operación

Expl. Gr.DN25 / 1"32 / 1¼"40 / 1½"50 / 2"65 / 2½"80 / 3"100 / 4"125 / 5"150 / 6"200 / 8"250 / 10"300 / 12"
IIAPmax2,0 / 29.02,0 / 29.01,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.4
IIB 3Pmax1,1 / 15.91,1 / 15.91,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.4

Pmax = Maximum allowable operating pressure in bar / psi absolut, higher operating pressure upon request

Especificación de la máx. temperatura de operación

≤ 60°C / 140°FTmaximum allowable operating temperature in °C
-Designation

higher operating temperatures upon request

Tipo de bridas de conexión

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other types upon request

Modelo y especificación

There are three different designs available:

Selección de materiales para la vivienda

Design BCD
HousingSteelStainless SteelHastelloy
GasketPTFEPTFEPTFE
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. A, CCD

The housing is also available in carbon steel with an ECTFE coating Coating Coating is the application of a firmly adhering layer of shapeless material to the surface of a workpiece. .

Special materials upon request

Combinación de materiales para la unidad apagallamas

Design ACD
FLAMEFILTER® cageSteelStainless SteelHastelloy
FLAMEFILTER®*Stainless SteelStainless SteelHastelloy
Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® se Stainless SteelStainless SteelHastelloy

* the FLAMEFILTER® are also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used.

Special materials upon request

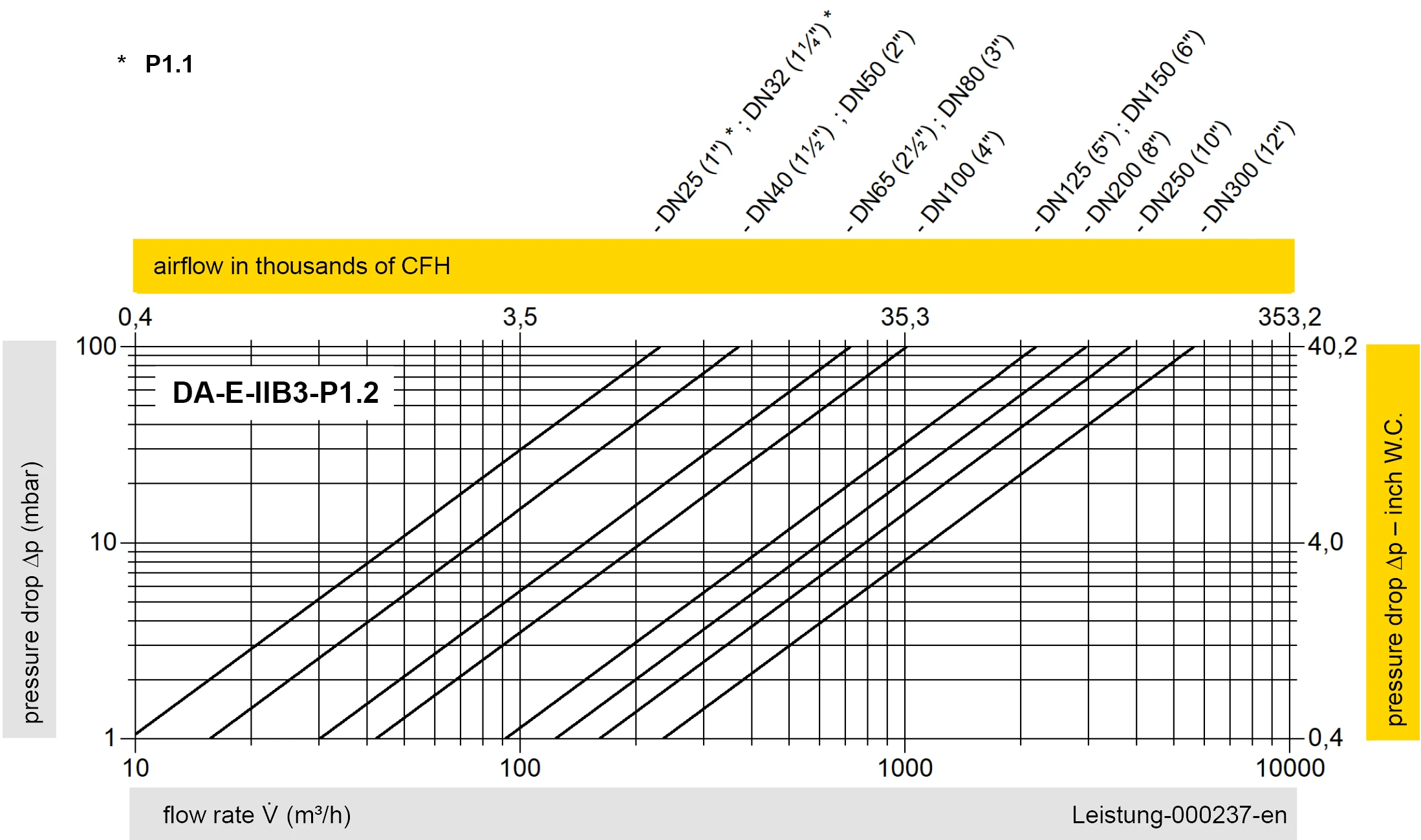

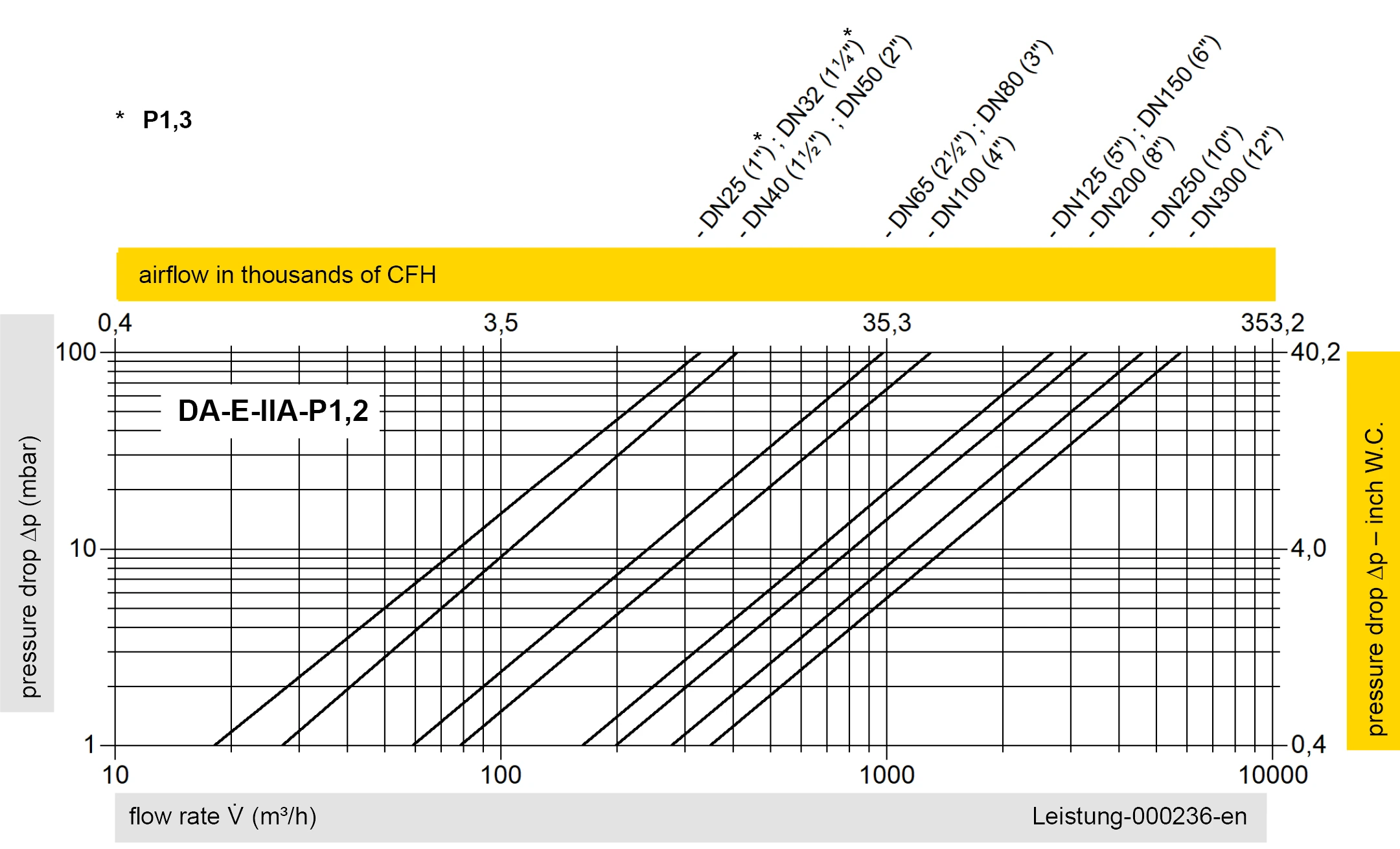

Diagrama de flujo volumétrico

Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
