PROTEGO®
Excellence in Safety and Environment

DR/SBW

In-Line Detonation Flame Arrester for stable detonations and deflagrations in a straight through design with shock absorber, bidirectional

Request for QuotationFind Contact Person

Features

Fácil mantenimiento
Mantenimiento extremadamente sencillo
Número reducido de discos FLAMEFILTER®
Low Number of FLAMEFILTER® Discs Due to Shock Absorber Technology
Diseño modular
Allows Replacement and Cleaning of Single FLAMEFILTER®
Transmisión bidireccional de la llama
Proof Design
Amplio rango de aplicaciones
for Elevated Operating Temperatures and Pressures
Posibilidad de instalar sensores de temperatura
Es posible el uso de sensores de temperatura para G 1½ y G 2
Piezas de recambio
Cost-Effective Spare Parts
Bajo coste
Low Operating and Lifecycle Costs
Function and Description

Maintenance-Friendly In-Line-Detonation Flame Arrester

In Pressure/vacuum relief valve Pressure/vacuum relief valve is an umbrella term that includes pressure or vacuum relief valve as well as pressure and vacuum relief valve. the development of the PROTEGO® DR/SBW In-Line Detonation Detonation Explosion propagating at supersonic velocity and characterized by a shock wave (EN 1127-1: 1997). Flame Arrester Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. , special effort was made to ease future maintenance Maintenance Combination of all technical and administrative actions, including supervision actions, intended to maintain or restore a unit in working order. of the Flame Arresters. The PROTEGO® Flame Arrester Unit (5) can be removed and cleaned within moments without having to disassemble the piping. The effective shock absorber Shock absorber A shock absorber is a device that reduces the kinetic energy of a detonation. of the device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. and elaborate housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. geometry reduces the number of FLAMEFILTER® discs to a minimum.

Main Component – PROTEGO® Flame Arrester Unit

The device is symmetrical and offers bidirectional flame arresting protecting from stable detonations and deflagrations. The Flame Arrester consists of a double-jacket housing (1) with two integrated shock absorbers (2) with the PROTEGO® Flame Arrester Unit in the center. The PROTEGO® Flame Arrester Unit consists of several FLAMEFILTER® discs (4) and spacers firmly held in a FLAMEFILTER® cage FLAMEFILTER® cage The FLAMEFILTER® cage is a housing for a FLAMEFILTER® set. (3). The number of FLAMEFILTER® discs and their gap size depends on the arrester‘s conditions of use. By indicating the operating parameters such as the temperature, pressure and explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group and the composition of the fluid, the optimum In-Line Detonation Flame Arrester can be selected. The PROTEGO® DR/SBW Series of Flame Arresters is available for explosion groups IIA to IIB3 (NFPA group D to C MESG ≥ 0.65 mm).

Many Individual Certifications

The standard design is approved at an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. up to +60°C / 140°F and an absolute operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. acc. to table 3. Devices with special approvals can be obtained for higher pressures and higher temperatures upon request. Type-approved in accordance with the current ATEX Directive and as well as other international standards.
Product Data

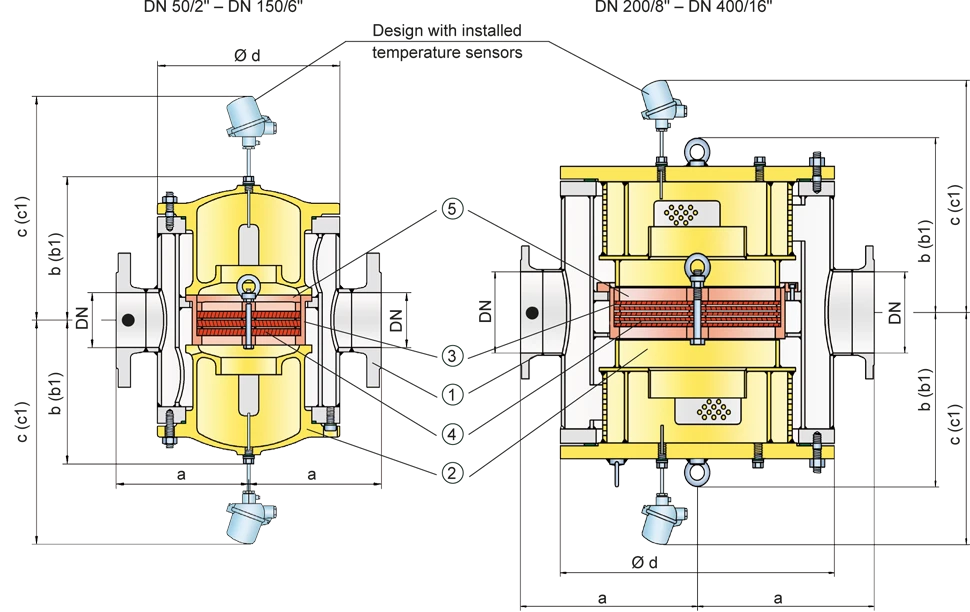

Dimensiones

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN) and nominal width (NG), please use the flow capacity charts on the following pages

DN50 / 2"80 / 3"100 / 4"150 / 6"200 / 8"250 / 10"300 / 12"350 / 14"400 / 16"
NG150 / 6"150 / 6"200 / 8"300 / 12"500 / 20"500 / 20"600 / 24"700 / 28"800 / 32"
a225 / 8.86225 / 8.86275 / 10.83350 / 13.78550 / 21.65550 / 21.65725 / 28.54800 / 31.50825 / 32.48
b210 / 8.27210 / 8.27220 / 8.66290 / 11.42525 / 20.67525 / 20.67590 / 23.23655 / 25.78725 / 28.54
b1*325 / 12.80325 / 12.80360 / 14.17475 / 18.70835 / 32.87835 / 32.87960 / 37.801075 / 42.321215 / 47.83
c395 / 15.55395 / 15.55410 / 16.14475 / 18.70630 / 24.80630 / 24.80700 / 27.56765 / 30.12835 / 32.87
c1*450 / 17.72450 / 17.72465 / 18.31530 / 20.87730 / 28.74730 / 28.74800 / 31.50865 / 34.06935 / 36.81
d275 / 10.83275 / 10.83325 / 12.80460 / 18.11840 / 33.07840 / 33.071000 / 39.371150 / 45.281250 / 49.21

Dimensiones en mm / pulgadas

* b1 dismantling dimension for servicing
c1 dismantling dimension for servicing ( temperature sensor Temperature sensor Temperature sensor for monitoring the temperature. )

Selección del grupo de explosión

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
> 0,90 mmIIAD
≥ 0,65 mmIIB3C

Special approvals upon request

Selección de la máxima presión de operación

DN50 / 2"80 / 3"100 / 4"150 / 6"200 / 8"250 / 10"300 / 12"350 / 14"400 / 16"
NG150 / 6"150 / 6"200 / 8"300 / 12"500 / 20"500 / 20"600 / 24"700 / 28"800 / 32"
Expl. Gr.IIAPmax4 / 584 / 583 / 43.53 / 43.51.6 / 23.21.6 / 23.21.1 / 15.91.1 / 15.91.1 / 15.9
Expl. Gr.IIB3Pmax1.7 / 24.61.7 / 24.61.7 / 24.61.7 / 24.61.2 / 17.41.2 / 17.41.1 / 15.91.1 / 15.91.1 / 15.9

Pmax = Maximum allowable operating pressure in bar / psi absolut, higher operating pressure upon request

Especificación de la máx. temperatura de operación

≤ 60°C / 140°FTmaximum allowable operating temperature in °C
-Designation

higher operating temperatures upon request

Selección de materiales para la vivienda

DesignABC
HousingSteelStainless SteelHastelloy
Heating jacket (DR / SBW-H-(T)-...)SteelStainless SteelStainless Steel
Cover with shock absorberSteelStainless SteelHastelloy
GasketFPM*PTFEPTFE
Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. AC, DE

* for devices exposed to elevated temperatures above 150°C / 302 °F (T150), gaskets made of PTFE. Special device with unidirectional shock absorber DR/SW-... from DN 50 resp. NG 150 available.

Special materials upon request

Combinación de materiales para la unidad apagallamas

DesignACDE
FLAMEFILTER® cageSteelStainless SteelStainless SteelHastelloy
FLAMEFILTER®*Stainless SteelStainless SteelHastelloyHastelloy
Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® se Stainless SteelStainless SteelHastelloyHastelloy

* the FLAMEFILTER® are also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used.

Special materials upon request

Tipo de bridas de conexión

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

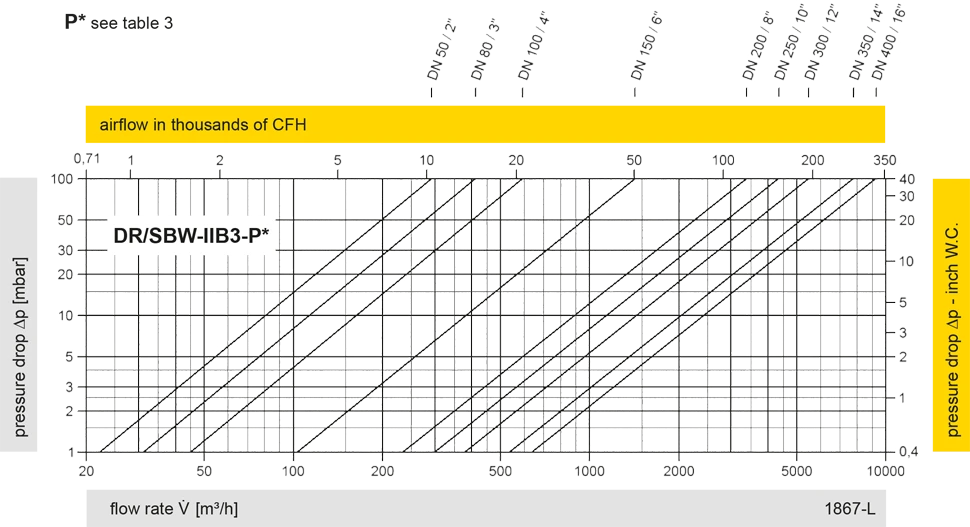

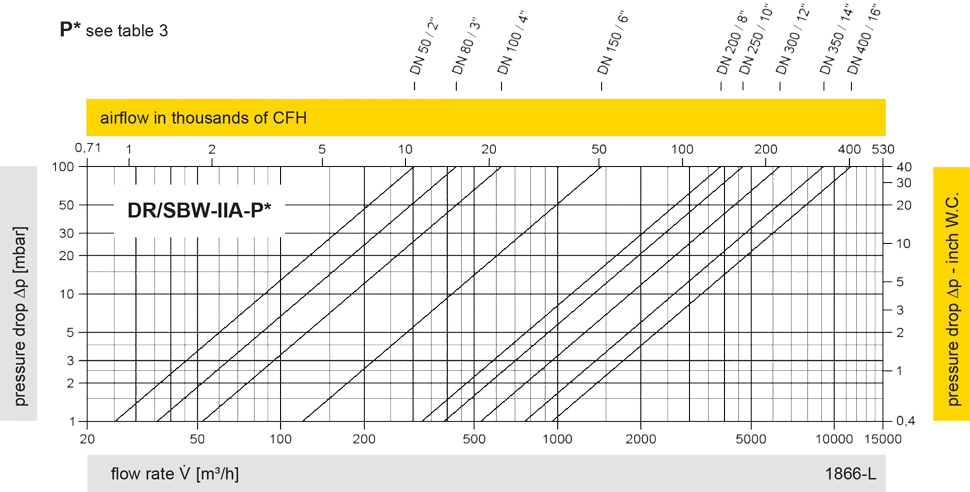

Diagrama de flujo volumétrico

Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.

Applications

Instalaciones de procesamiento

Sistemas de combustión por vapor

Tanques de almacenamiento

Depósitos para el almacenamiento de alcohol
