In-Line Detonation Flame Arrester for unstable and stable detonations and deflagrations in right angle design with a shock absorber, unidirectional

Features

Número reducido de discos FLAMEFILTER®
Low Number of FLAMEFILTER® Discs Due to Shock Absorber Technology
Montaje y desmontaje más rápido
of Single FLAMEFILTER®
Diseño modular
Allows Replacement and Cleaning of Single FLAMEFILTER®
Cuerpo angular
Saves Pipe Elbows
Piezas de recambio
Cost-Effective Spare Parts
Proporciona seguridad
Protege frente a deflagraciones para todos los grupos de explosión IIA, IIB3 e IIC (grupos NEC D, C y B)
Amplio rango de aplicaciones
for Elevated Operating Temperatures and Pressures
Bajo coste
Low Operating and Lifecycle Costs
Function and Description

Main Component – PROTEGO® Flame Arrester Unit

Once a detonation Detonation Explosion propagating at supersonic velocity and characterized by a shock wave (EN 1127-1: 1997). enters the Flame Arrester Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. , energy is absorbed from the detonation shock wave by the integrated shock absorber Shock absorber A shock absorber is a device that reduces the kinetic energy of a detonation. (1) before the flame is extinguished in the narrow gaps of the FLAMEFILTER® (3). The PROTEGO® Flame Arrester Unit (2) consists of several FLAMEFILTER® discs and spacers firmly held in the FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. (4). The gap size and number of FLAMEFILTER® discs are by the operating conditions of the flowing mixture ( explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group, pressure, temperature). This device is can be used for explosion groups from IIA to IIB3 (NEC group D to C MESG ≥ 0.65 mm).

Many Individual Certifications

The standard design can be used with an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of up to +60°C / 140°F and an absolute operating pressure Operating pressure Operating pressure is the pressure existing at normal operating conditions within the system being protected. acc. to table 3. Devices with special approval for higher pressures and temperatures are available upon request. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Data

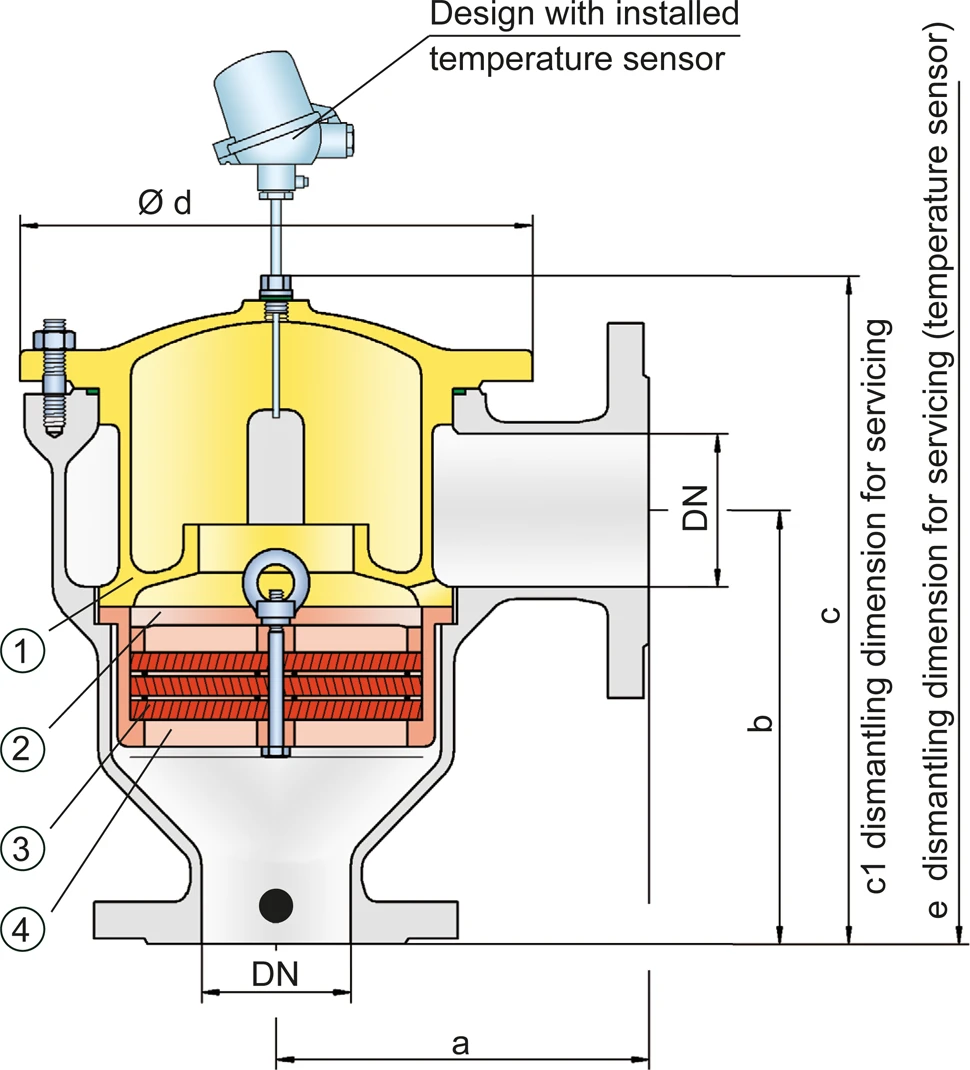

Dimensiones

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity charts on the following pages

DN25 / 1"32 / 1¼“40 / 1½“50 / 2“65 / 2½“80 / 3"100 / 4"125 / 5"150 / 6"
a125 / 4.92125 / 4.92153 / 6.02155 / 6.10198 / 7.80200 / 7.87250 / 9.84332 / 13.07335 / 13.19
b140 / 5.51140 / 5.51183 / 7.20185 / 7.28223 / 8.78225 / 8.86290 / 11.42357 / 14.06360 / 14.17
c210 / 8.27210 / 8.27290 / 11.42290 / 11.42365 / 14.37365 / 14.37440 / 17.32535 / 21.06535 / 21.06
c1285 / 11.22285 / 11.22395 / 15.55395 / 15.55500 / 19.69500 / 19.69595 / 23.43750 / 29.53750 / 29.53
d150 / 5.91150 / 5.91210 / 8.27210 / 8.27275 / 10.83275 / 10.83325 / 12.80460 / 18.11460 / 18.11
e495 / 19.49495 / 19.49600 / 23.62600 / 23.62705 / 27.76705 / 27.76795 / 31.30950 / 37.40950 / 37.40

Dimensiones en mm / pulgadas

Selección del grupo de explosión

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
> 0,90 mmIIAD
≥ 0,65 mmIIB3C

Special approvals upon request

Selección de la máxima presión de operación

Expl. Gr.DN25  / 1"32  / 1¼"40  / 1½"50 / 2"65 / 2½"80 / 3"100  / 4"125  / 5"150  / 6"
IIAPmax1,6 / 23.31,6 / 23.31,6 / 23.31,6 / 23.31,6 / 23,.31,6 / 23.31,5 / 21.71,2 / 17.41,2 / 17.4
IIB2Pmax1,4 / 20.31,4 / 20.3
IIB3Pmax1,6 / 23.21,6 / 23.31,6 / 23.31,6 / 23.31,6 / 23.31,6 / 23.31,4 / 20.31,2* / 17.41,2* / 17.4

Pmax = maximum allowable operating pressure in bar / psi absolute, higher operating pressure upon request, * Special flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set.

Especificación de la máx. temperatura de operación

≤ 60°C / 140°FTmaximum allowable operating temperature in °C
-Designation

higher operating temperatures upon request

Selección de materiales para la vivienda

Design  BCD
Housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. Carbon SteelStainless SteelHastelloy
Heating jacket (DR / EU-H-(T)-...)SteelStainless SteelStainless Steel
Cover with shock absorberSteelStainless SteelHastelloy
O-RingFPM*PTFEPTFE
Flame arrester unitAC, DESpecial materials upon request

* for devices exposed to elevated temperatures above 150°C / 302°F (T150), gaskets made of PTFE.

The housing and cover with the shock absorber can also be delivered in steel with an ECTFE coating Coating Coating is the application of a firmly adhering layer of shapeless material to the surface of a workpiece. .

Combinación de materiales para la unidad apagallamas

Design ACDE
FLAMEFILTER® cageSteelStainless SteelStainless SteelHastelloy
FLAMEFILTER®*Stainless SteelStainless SteelHastelloyHastelloy
Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® se Stainless SteelStainless SteelHastelloyHastelloy

* the FLAMEFILTER® are also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used.

Special materials upon request

Tipo de bridas de conexión

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

Diagrama de flujo volumétrico

Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.

Applications

Instalaciones de procesamiento

Sistemas de combustión por vapor

Tanques de almacenamiento

Depósitos para el almacenamiento de alcohol
