VP/HK mit PS/E und PG/H

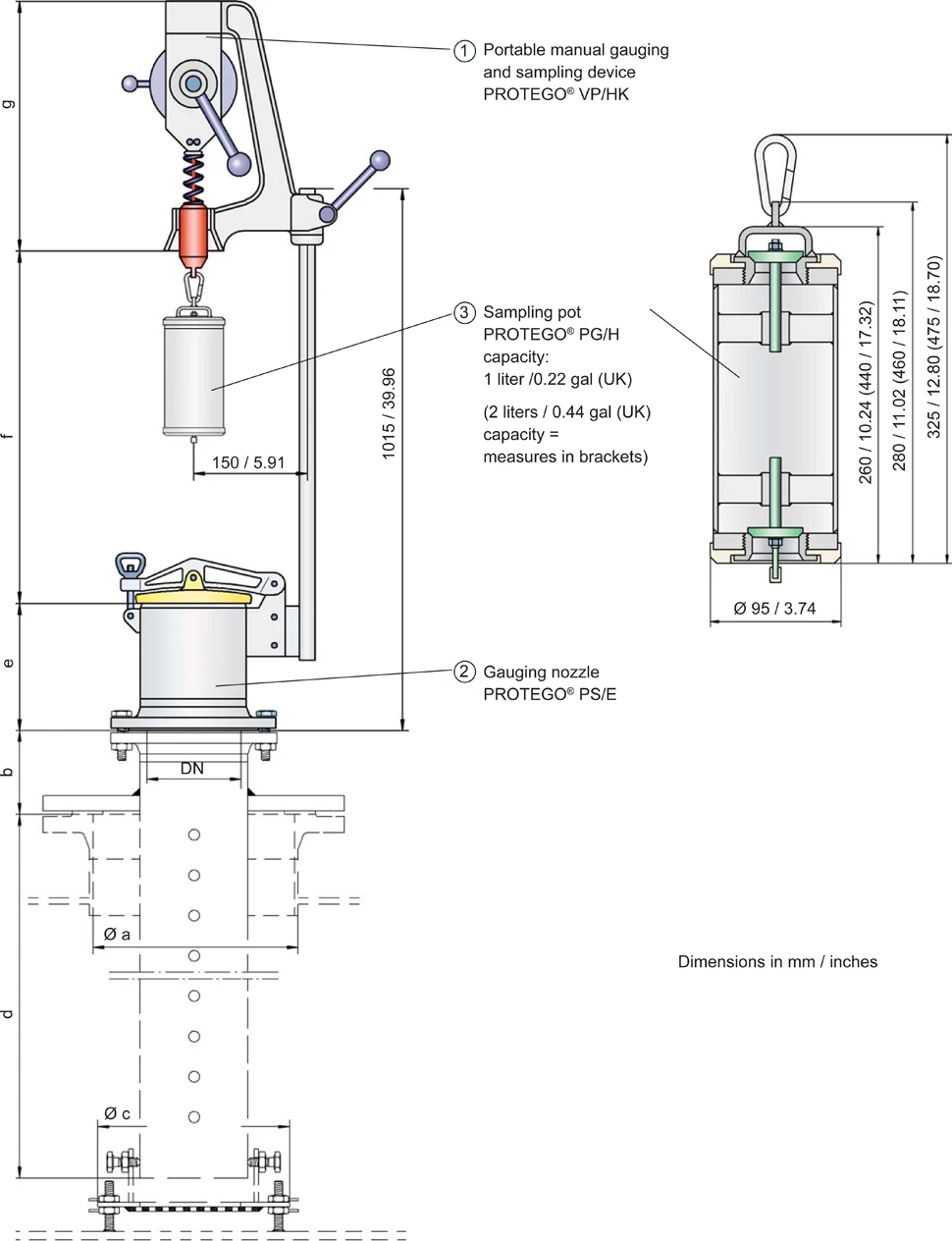

The Pressure/vacuum relief valve Pressure/vacuum relief valve is an umbrella term that includes pressure or vacuum relief valve as well as pressure and vacuum relief valve. PROTEGO® gauging and sampling assembly consists of the manual Gauging and Sampling Device Device A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. PROTEGO® VP/HK (1), the Gauging Nozzle PROTEGO® PS/E (2), the Gauging Pipe PROTEGO® PR/0, the Gauge Plate PROTEGO® PT/S and the Sampling Pot PG/H (3). This assembly serves for gauging (determination of the liquid level) and sampling in horizontal or vertical aboveground tanks which store non-flammable or – if equipped appropriately – flammable liquids, this device may also be used for storage tanks approved by customs.

The gauging nozzle with hinged cover and clip-lock PROTEGO® PS/E is attached to the counter-flange of the gauging and sampling pipe Gauging and sampling pipe A gauging and sampling tube consists of a hanging pipe and an attachment pipe, as well as a sleeve for welding into the cap of the tank nozzle. . The locking nozzle has the Fixing rod attached for connecting the gauging and sampling device Gauging and sampling device A gauging and sampling device is used for gauging the fluid level of storage tanks as well as for sampling from different levels within the stored medium. PROTEGO® VP/HK. The sampling constructed from stainless steel with conductive plastic caps pot PROTEGO® PG/H consists of housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. with metallic sealing valve discs and snap-hook. Specify the required capacity (1l or 2l / 0.22 gal (UK) or 0.44 gal (UK))
