DA-CG

In-Line Detonation Flame Arrester for unstable and stable detonations and deflagrations in a straight through design with shock absorber, bidirectional

Features

Seguridad contra explosiones
Proporciona protección contra deflagraciones, detonaciones estables y detonaciones inestables
Número reducido de discos FLAMEFILTER®
Low Number of FLAMEFILTER® Discs Due to Shock Absorber Technology
Diseño modular
Allows Replacement and Cleaning of Single FLAMEFILTER®
Diferentes series
Allow Increase of FLAMEFILTER® Size for Given Flange Connection Resulting in Lower Pressure Drop Across the Device
Fácil mantenimiento
Without Disassembling of the FLAMEFILTER®
Tamaños grandes
Available in Large Nominal Widths
Amplio rango de aplicaciones
for Elevated Operating Temperatures and Pressures
Transmisión bidireccional de la llama
Proof Design
Posibilidad de instalar sensores de temperatura
Es posible el uso de sensores de temperatura para G 1½ y G 2
Piezas de recambio
Cost-Effective Spare Parts
Bajo coste
Low Operating and Lifecycle Costs
Function and Description

Requirements of the US Coast Guard

The Pressure/vacuum relief valve Pressure/vacuum relief valve is an umbrella term that includes pressure or vacuum relief valve as well as pressure and vacuum relief valve. PROTEGO® DA-CG series of detonation arresters Detonation flame arrester Flame arrester designed to prevent the transmission of a detonation. was mainly developed for the North American market and optimized to meet the demands of the US Coast Guard. The devices are symmetrical and offer bi-directional flame arresting for deflagrations and stable and unstable detonations.

Main Component – PROTEGO® Flame Arrester Unit

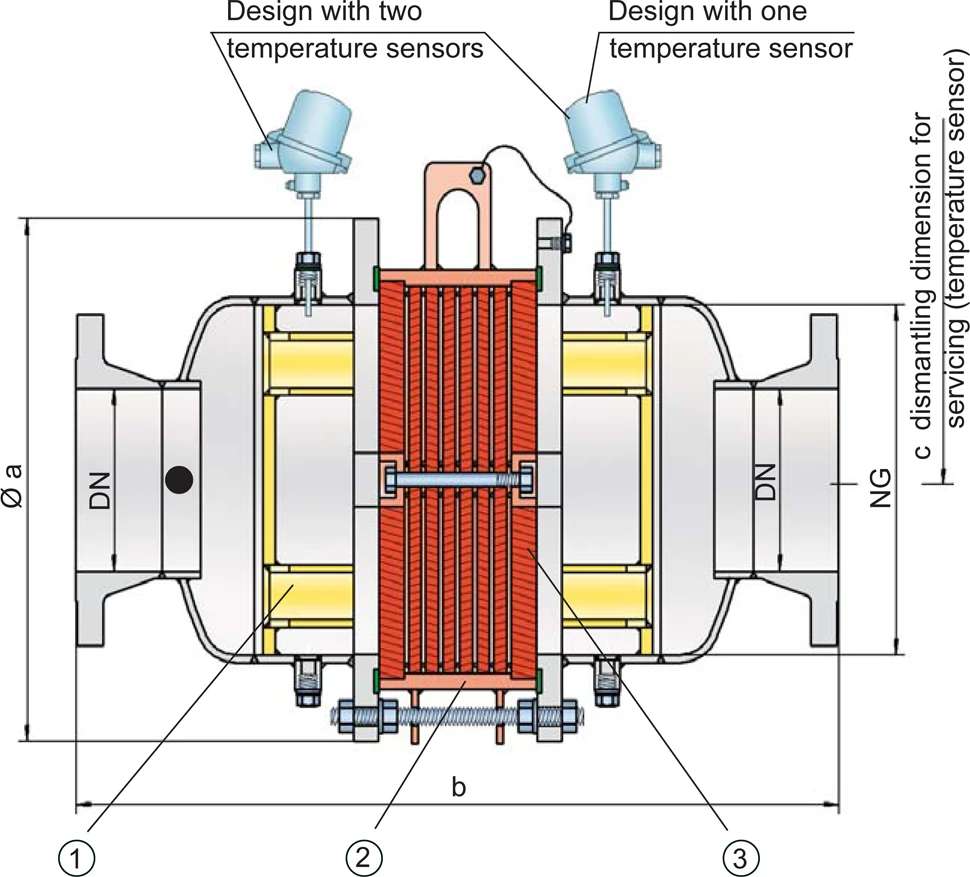

The effective shock absorber Shock absorber A shock absorber is a device that reduces the kinetic energy of a detonation. (1) greatly reduces the speed of incoming detonations. This leads to improved flame extinguishing in the narrow gaps of the FLAMEFILTER® (3). The Flame Arrester Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. essentially consists of two housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. parts with an integrated shock absorber and the PROTEGO® Flame Arrester Unit (2) in the center. The PROTEGO® Flame Arrester Unit is modular and consists of several FLAMEFILTER® discs and spacers firmly held in a FLAMEFILTER® casing FLAMEFILTER® casing Enclosure for FLAMEFILTER® including insert rings. . The number of FLAMEFILTER® discs and their gap size depends on the arrester‘s intended use.

For Explosion Groups IIA to IIB3

By specifying the operating conditions, such as the temperature, pressure, explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group, and the composition of the fluid, the optimum In-Line Detonation Detonation Explosion propagating at supersonic velocity and characterized by a shock wave (EN 1127-1: 1997). Flame Arrester can be selected. Type PROTEGO® DA-CG Flame Arresters are available for explosion groups IIA to IIB3 (NEC group D to C MESG ≥ 0.65 mm).

Many Individual Certifications

Product Data

Dimensiones

To select nominal width/ nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (NG/DN) - combination, please use the flow capacity charts on the following pages. Additional nominal width/nominal size (NG/DN) - combinations for improved flow capacity upon request.

NG150 / 6"150 / 6"200 / 8"300 / 12"400 / 16"500 / 20"600 / 24700 / 28"800 / 32"1000 / 40"1200 / 48"
DN ≤ 50 / 2" 65, 80 / 2 ½“, 3 ≤ 100 / 4" ≤ 150 / 6" ≤ 200 / 8" ≤ 250 / 10" ≤ 300 / 12" ≤ 350 / 14" ≤ 400 / 16" ≤ 500 / 20" ≤ 600 / 24"
a 285 / 11.22 285 / 11.22 340 / 13.39 460 / 18.11 580 / 22.83 715 / 28.15 840 / 33.07 1025 / 40.35 1025 / 40.35 1255 / 49.41 1485 / 58.46
b 650 / 25.59 650 / 25.59 700 / 27.56 800 / 31.50 900 / 35.43 1100 / 43.31 1250 / 49.21 1500 / 59.06 1500 / 59.06 1700 / 66.93 2000 / 78.74
c 300 / 11.81 300 / 11.81 330 / 12.99 380 / 14.96 490 / 19.29 540 / 21.26 590 / 23.23 690 / 27.17 690 / 27.17 790 / 31.10 880 / 34.65

Dimensiones en mm / pulgadas

Selección del grupo de explosión

MESGExpl. Gr. (IEC / CEN)Gas Group (NEC)
> 0,90 mmIIAD
≥ 0,65 mmIIB3C

Special approvals upon request

Selección de la máxima presión de operación

Expl. Gr.DN50 / 2"80 / 3"100 / 4"150 / 6"200 / 8"250 / 10"300 / 12"350 / 14"400 / 16"500 / 20"600 / 24"
NG150 / 6''150 / 6''200 / 8''300 / 12''400 / 16''500 / 20''600 / 24''700 / 28''800 / 32''1000 / 40''1200 / 48''
IIA (D)Pmax1,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.41,2 / 17.4
IIB3 (C)Pmax1,6 / 23.21,6 / 23.21,6 / 23.21,6 / 23.21,6 / 23.21,6 / 23.21,6 / 23.21,6 / 23.21,6 / 23.21,6 / 23.21,6 / 23.2

Pmax = maximum allowable operating pressure in bar / psi absolute, higher operating pressure upon request

Especificación de la máx. temperatura de operación

≤ 60°C / 140°FTmaximum allowable operating temperature in °C
-Designation

higher operating temperatures upon request

Selección de materiales para la vivienda

Special materials upon request

Combinación de materiales para la unidad apagallamas

Design AB
FLAMEFILTER® cageSteelStainless Steel
FLAMEFILTER®*Stainless SteelStainless Steel
Spacer Spacer The spacer is a component that is generally used in a PROTEGO® flame arrester as a spacer within the FLAMEFILTER® se Stainless SteelStainless Steel

*the FLAMEFILTER® are also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used.

Special materials upon request

Tipo de bridas de conexión

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

Diagrama de flujo volumétrico

Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.

Applications

Instalaciones de procesamiento

Sistemas de combustión por vapor

Tanques de almacenamiento

Depósitos para el almacenamiento de alcohol
