Apagallamas en línea a prueba de deflagracionesDiseño concéntrico, bidireccional
Features
Flow Capacity
optimized flow capacity
Differnt Series
allow increase of FLAMEFILTER® size for given flange connection resulting in lower pressure drop across the
device
Device
A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow.
Low Costs
low operating and lifecycle costs
Integrated Cleaning Nozzles
option for integrated cleaning nozzles can be provided
Modular Design
allows replacement and cleaning of single FLAMEFILTER®
Bi-Directional Flame Transmission
proof design
Provides Safety
protects against deflagrations for all
explosion
Explosion
Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously.
groups IIA, IIB3 and IIC (NEC groups D, C and B)
Extended Application Range
for elevated operating temperatures and pressures
Large Sizes
available in large nominal widths
Spare Parts
cost-effective flame arrester / spare parts
Function and Description
Efficient Flow Performance
In the development of the PROTEGO® FA-I
in-line deflagration flame arrester
In-line deflagration flame arrester
A deflagration flame arrester is designed to prevent the transmission of a deflagration. An in-line deflagration flame arrester is equipped with a pipe connection on both sides.
, special effort was made to optimize the fluid dynamic flow characteristics. For a given flange connection size of the flame arrester, the FLAMEFILTER® size can be chosen for the most adequate flow capacity. When installing the
deflagration
Deflagration
Explosion propagating at subsonic velocity (EN 1127-1:1997).
flame arrester, make sure that the distance between potential ignition sources and location of the installed device does not exceed the L/D ratio (pipe length/pipe diameter) for which the device was tested (see table 4).
Main component - PROTEGO® flame arrester

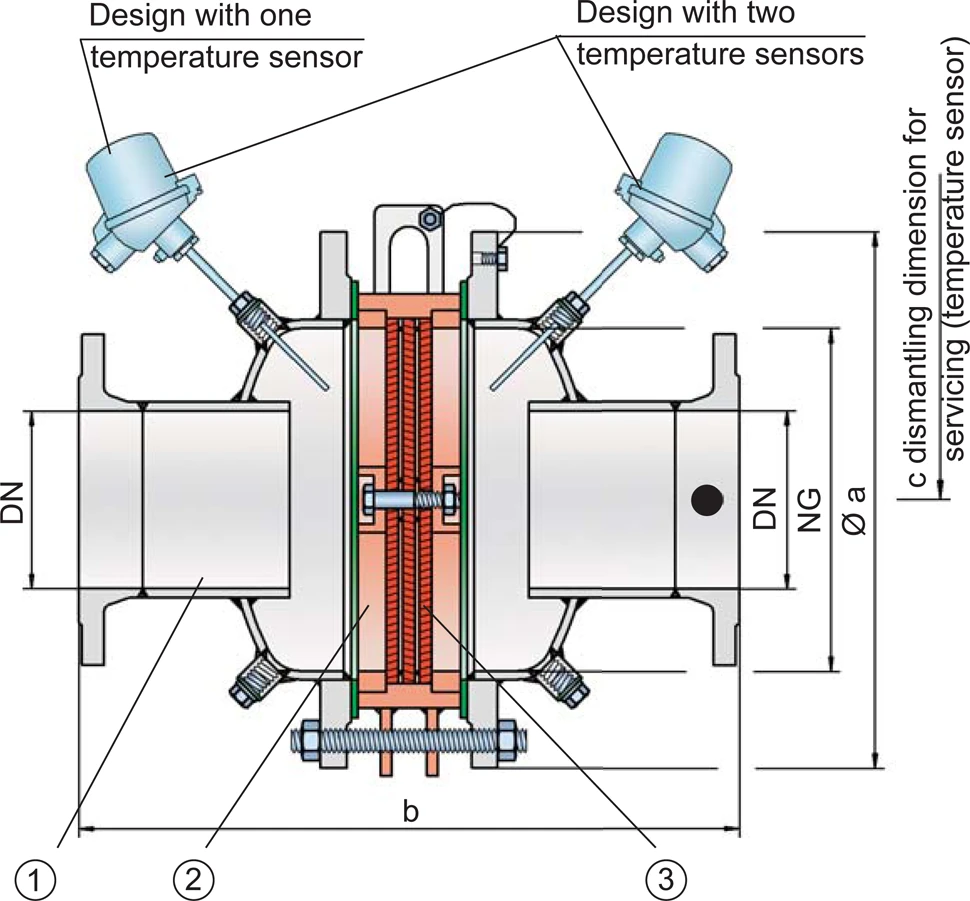

The deflagration flame arrester is symmetrical and offers bidirectional flame transmission protection. The device essentially consists of two
housing
Housing
A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content.
parts (1) and the
PROTEGO® flame arrester unit
PROTEGO® flame arrester unit
The PROTEGO® flame arrester unit is the main component of a flame arrester. It prevents flame propagation.
(2) in the center. The PROTEGO® flame arrester unit is modular and consists of several FLAMEFILTER® discs (3) and spacers firmly held in a
FLAMEFILTER® casing
FLAMEFILTER® casing
Enclosure for FLAMEFILTER® including insert rings.
. The number of FLAMEFILTER® discs and their gap size depends on the arrester´s intended use.
For Explosion groups IIA to IIB3
Specifying the operating conditions, such as the temperature, pressure, explosion group, and the composition of the fluid, enables PROTEGO® to select the best deflagration flame arrester for your application. The PROTEGO® FA-I series of
deflagration flame arresters
Deflagration flame arrester
Flame arrester designed to prevent the transmission of a deflagration. It can be an end-of-line flame arrester or an in-line flame arrester.
is available for substances of explosion groups IIA and IIB3 (NEC groups D and C (MESG ≥ 0.65 mm)).
Many Individual Certifications
The standard design can be used with an
operating temperature
Operating temperature
Temperature reached when the equipment is operating under design conditions.
of up to +60°C / 140°F and an absolute
operating pressure
Operating pressure
Operating pressure is the pressure existing at normal operating conditions within the system being protected.
up to 1.1 bar / 15.9 psi. Devices with special approvals for higher pressures (see table 3) and higher temperatures are available upon request.
EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product
Product
Includes equipment, protective systems, devices, components and combinations of these.
Data and Features
Dimensiones
Para seleccionar la serie y tamaño nominal (DN) – la combinación del ancho nominal (NG), rogamos utilicen el diagrama de flujo volumétrico indicado a continuación.
| estándar | |||||||||||||
| NG | 150 / 6" | 150 / 6" | 200 / 8" | 300 / 12" | 400 / 16" | 500 / 20" | 600 / 24" | 800 / 32" | 1000 / 40" | 1200 / 48" | 1400 / 56" | 1600 / 64 | |
| DN | ≤50 / 2" | 80 / 3" | ≤100 / 4" | ≤150 / 6" | ≤200 / 8" | ≤250 / 10" | ≤300 / 12" | ≤400 / 16" | ≤ 00 / 20" | ≤600 / 24" | ≤800 / 32" | ≤800 / 32" | |
| a | 285 / 11.22 | 285 / 11.22 | 340 / 13.39 | 445 / 17.52 | 565 / 22.24 | 670 / 26.38 | 780 / 30.71 | 975 / 38.39 | 1175 / 46.26 | 1405 / 55.31 | 1630 / 64.17 | 1830 / 72.05 | |
| Expl. Gr. | IIA b* | 364 / 14.33 | 364 / 14.33 | 452 / 17.79 | 584 / 22.99 | 638 / 25.12 | 688 / 27.09 | 800 / 31.50 | 900 / 35.43 | 1000 / 39.37 | 1100 / 43.31 | 1350 / 53.15 | 1450 / 57.09 |
| IIB3 b* | 364 / 14.33 | 364 / 14.33 | 464 / 18.27 | 596 / 23.46 | 650 / 25.59 | 700 / 31.50 | 800 / 31.50 | 900 / 35.43 | 1000 / 39.37 | 1100 / 43.31 | 1350 / 53.15 | 1450 / 57.09 | |
| c | 500 / 19.69 | 500 / 19.69 | 520 / 20.47 | 570 / 22.44 | 620 / 24.41 | 670 / 26.38 | 700 / 31.50 | 900 / 35.43 | 1000 / 39.37 | 1100 / 43.31 | 1350 / 53.15 | 1450 / 57.09 |
Dimensiones en mm / pulgadas
*Dimensión b sólo para P1, 2 (IIA) y P1,1 (IIB3).
Selección del grupo de explosión
| MESG | Expl. Gr. (IEC / CEN) | Grupo de gas & (NEC) |
| > 0,90 mm | IIA | D |
| ≥ 0,65 mm | IIB3 | C |
Homologaciones especiales bajo demanda
Selección de la máxima presión de operación
| Expl. Gr. | DN | 50 / 1" | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | 400 / 16" | 500 / 20" | 600 / 24" | 800 / 32" | 800 / 32" |
| NG | 150 / 6'' | 150 / 6'' | 200 / 8'' | 300 / 12'' | 400 / 16'' | 500 / 20'' | 600 / 24'' | 800 / 32'' | 1000 / 40'' | 1200 / 48'' | 1400 / 56' | 1600 / 64'' | |
| IIA | Pmax | 1,8 / 26.1 | 1,8 / 26.1 | 1,5 / 21.7 | 1,5 / 21.7 | 1,5 / 21.7 | 1,5 / 21.7 | 1,5 / 21.7 | 1,4 / 20.3 | 1,3 / 18.8 | 1,3 / 18.8 | 1,2 / 17.4 | 1,1 / 15.9 |
| IIB3 | Pmax | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 |
Pmáx = Máxima presión de operación permitida en bares / psi absoluto, presiones de operación más altas bajo demanda
Máx. radio L/D admisible
| standard | NG | 150 / 6" | 150 / 6" | 200 / 8'' | 300 / 12'' | 400 / 16'' | 500 / 20'' | 600 / 24'' | 800 / 32" | 1000 / 40'' | 1200 / 48'' | 1400 / 56'' | 1600 / 64'' |
| DN | 50 / 1" | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / | 400 / 16" | 500 / 20" | 600 / 24" | 800 / 32" | 800 / 32" | |
| IIA | (L / D)max | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| IIA | Pmax | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,2 / 17.4 | 1,3 / 18.8 | 1,3 / 18.8 | 1,2 / 17.4 | 1,1 / 15.9 |
| IIA | Designation | - | - | - | - | - | - | - | - | - | - | - | |
| IIB3 | (L / D)max | 50 | 50 | 40 | 40 | 35 | 35 | 35 | 30 | 30 | 30 | 25 | 25 |
| IIB3 | Pmax | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 | 1,1 / 15.9 |
| IIB3 | Designation | - | - | X6 | X6 | X7 | X7 | X7 | X8 | X8 | X8 | X9 | X9 |
Especificación de la máx. temperatura de operación
| ≤ 60°C / 140°F | Tmáx - Temperatura máxima de operación admisible en °C |
| - | Designation |
Temperaturas de operación más altas bajo demanda
Tipo de bridas de conexión
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
Otros tipos bajo petición
Modelo y especificación
Existen tres diseños diferentes:Diseño básico a prueba de deflagracionesFA-I - –
Apagallamas en línea a prueba de deflagraciones con sensor de temperatura* integrado para la protección adicional contra la combustión a corto plazo de un ladoFA-I - T
Apagallamas en línea a prueba de deflagraciones con dos sensores de temperatura* integrados para la protección adicional contra la combustión a corto plazo de ambos ladosFA-I - TB
Equipos especiales adicionales bajo demanda
*Termómetro de resistencia para el grupo de explosión II, categoría (1) 2 (GII cat. (1) 2)
Selección de materiales para la vivienda
| Diseño | A | B | C |
| Cuerpo | Acero | Acero inox | Hastelloy |
| Junta | PTFE | PTFE | PTFE |
| Unidad apagallamas | A, B | C | D |
El cuerpo puede suministrarse en acero al carbono con recubrimiento ECTFE. Materiales especiales bajo demanda.
Combinación de materiales para la unidad apagallamas
| Diseño | A | C | D |
| FLAMEFILTER® Jaula | Acero | Acero inox | Hastelloy |
| FLAMEFILTER®* | Acero inox | Acero inox | Hastelloy |
| Espaciador | Acero inox | Acero inox | Hastelloy |
* Los discos de filtro FLAMEFILTER® también están disponibles en los materials tántalo, inconel, cobre, etc. cuando se utilizan los materiales en el listado para el cuerpo y la jaula.
Materiales especiales bajo demanda.
Diagrama de flujo volumétrico
Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
