ITV-S
In-Tank Valve
Features
Flange Connection
Connection to the Tank Wall via Flange Connection
Fail-Safe-Concept
In Event of an Energy Drop, the Valve Piston Seals the Outlet Line by its own Weight
Low Forces
for Lifting the Valve Piston
Light Design
Very Light and Compact Design
No Support Required
No Support or Guidance Required in the Tank
Metallic Sealing Surfaces
Extremely High Tightness due to Metallic Sealing Surfaces
Function and Description
In-Tank Valves for Cryogenic Storage Tanks Meeting API 625 Requirements

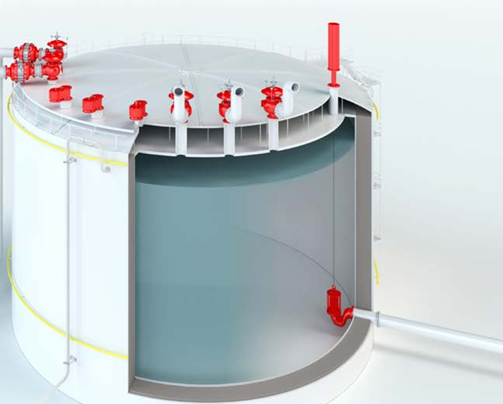

PROTEGO® ITV-S in-tank valves are used in storage tanks for cryogenic liquids in order to
seal
Seal
A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements.
off discharge lines in the event of an accident or emergency. These devices meet the requirements of API 625.
The PROTEGO® ITV-S consists of a valve guide unit with elbow and
valve seat
Valve seat
The valve seat is a component on which the valve pallet rests when the valve is closed.
which is mounted on the inside of the tank wall. This unit accommodates the valve piston and guides it over the entire
lift
Lift
Lift is the actual travel of the valve pallet from the main valve out of the closed position.
stroke. The seal between the valve seat and the valve disk is ensured by finely lapped surfaces and achieves maximum tightness. The actuating unit, installed on the tank roof, is specifically designed for the requirements of the application and connected to the valve unit installed in the tank via suitable cables.
Fail-Safe-Concept
During normal operation, the valves are kept in the open position. The bottom valve is only closed in an emergency. In the event of an energy drop, the valve piston, due to its own weight, falls onto the valve seat which closes the bottom valve (fail safe concept).
Applications
