Features

10% Technology
for Minimum Pressure Increase up to Full Lift
Extreme Tightness
Resulting in Lowest Possible Product Losses and Reduced Environmental Pollution
Optimal Pressure Maintenance
Set Pressure Close to Opening Pressure for Optimum Pressure Maintenance in the System
Flow Capacity
Optimized Flow Capacity
Guided Valve Pallet
Valve Pallet Is Guided Inside the Housing to Protect Against Harsh Weather Conditions
Used in Explosion Hazardous Areas
can Be Used in Explosion Hazardous Areas
Condensate Drainage
Automatic Condensate Drain
API Tanks
Best Technology for API Tanks
Function and Description

10% Technology

The device will start to open as soon as the set pressure is reached and only requires 10% overpressure Overpressure Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure. to full lift Lift Lift is the actual travel of the valve pallet from the main valve out of the closed position. . Continuous investments into research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. This “Full Lift Type” technology allows the valve to be set just 10% below the maximum allowable working pressure of the tank and still safely vent the required mass flow.

Valve Seats Made of High Quality Stainless Steel

Due to our highly developed manufacturing technology the tank pressure Tank pressure Tank pressure is the pressure within a tank. is maintained up to set pressure, with a tightness that is far superior to the conventional standard. This feature is achieved by valve seats made of high quality stainless steel and with precisely lapped valve pallets (1) or with an air cushion seal Seal A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. (2) in conjunction with high quality FEP diaphragm Diaphragm A diaphragm is a thin layer of material, which has a large surface area. . The valve pallets are also available with a PTFE seal to prevent the valve pallets from sticking when sticky products are used, and they enable the use of corrosive media. After the vacuum is relieved, the valve reseats and provides a tight seal again.

Flow-Optimized Valve Body for Maximum Performance

The optimized fluid dynamic design of the valve body and valve pallet Valve pallet Valve pallet is the generic term for the assembly that rests on the valve seat. is a result of many years of research work, which allow a stable operation of the valve pallet and optimized performance resulting in reduction of product Product Includes equipment, protective systems, devices, components and combinations of these. losses.
Product Data

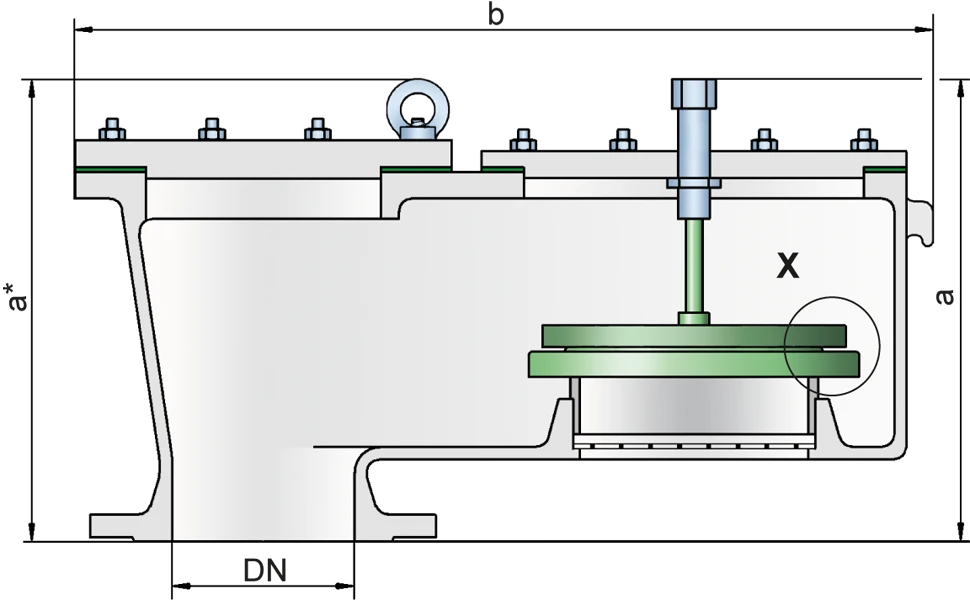

Dimensions

To select the nominal size Nominal size The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), use the flow capacity chart on the following page

DN40 / 1½"50 / 2"80 / 3"100 / 4"150 / 6"200 / 8"250 / 10"300 / 12"
a249* / 9.8*249312358443520588588
b325* / 12.79*337400514713808925925

Dimensions in mm / inches

Dimensions for vacuum relief valve with heating jacket upon request

Material selection for housing

Design ABC
Housing Housing A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. Aluminium Steel Stainless Steel
Heating jacket (V / SV-H-...) Steel Stainless Steel
Valve seat Valve seat The valve seat is a component on which the valve pallet rests when the valve is closed. Stainless Steel Stainless Steel Stainless Steel
Sealing PTFE PTFE PTFE
CoverAluminiumSteel Stainless Steel

Material selection for vacuum valve pallet

Design ABCDEF
Pressure range [mbar]

[inch W.C.]
-2,0 up to -3,5

-0.8 up to -1.4
<-3,5 up to -14

<-1.4 up to -5.6
<-14 up to -35

<-5.6 up to -14
<-14 up to -35

<-5.6up to -14
<-35 up to -60

<-14 up to -24
<-35 up to -60

<-14 up to -24
Valve palletAluminiumStainless SteelStainless SteelStainless SteelStainless SteelStainless Steel
SealingFEPFEPMetal to MetalPTFEMetal to MetalPTFE

Special material as well as higher vacuum upon request

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other types upon request

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.

Detail X

Detail X
